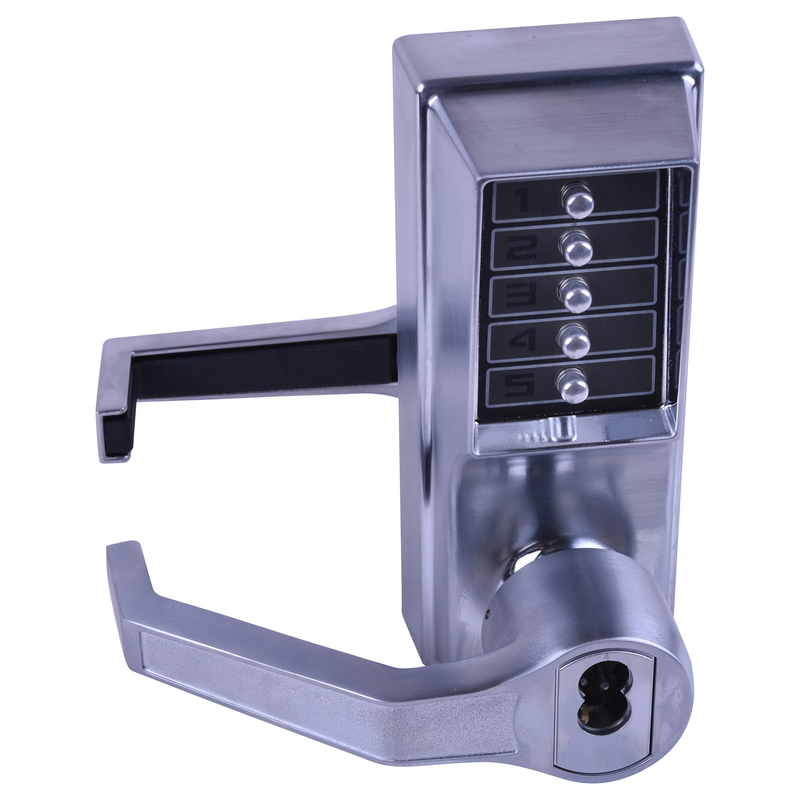

Dormakaba LL1076C-26D-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba LL1076C-26D-41 Mechanical Pushbutton Lock offers a robust solution for managing access between public and private spaces. This pushbutton cylindrical lever lock features a combination entry and privacy lockout function with key override capabilities. Designed for ease of use, it eliminates the hassle of keys and cards, requiring no batteries or computer programming-making combination changes a quick task that can be accomplished in seconds without removing the lock from the door. Constructed with heavy-duty cylindrical housing and fixed ADA-compliant levers, the LL1076C-26D-41 is both durable and accessible. It easily installs on wood or metal doors with a door thickness range of 1⅜" to 2¼", accommodating various applications. The vandal-resistant, solid metal pushbuttons enhance security, while the lock’s fire rating of 3 hours for "A" labeled doors ensures compliance with safety standards. With a single access code and a D.O.D. compliant design, this lock minimizes material and labor costs associated with battery replacements. The factory-handed design, equipped with a 2-3/4" backset and a ¾" throw latch, ensures reliable performance in commercial settings. Backed by a 3-year warranty, the Kaba Access LL1076C-26D-41 stands out as a dependable choice for your locking needs.

Mechanical Pushbutton Lock

Pushbutton Cylindrical Lever Lock, Combination Entry/Privacy Lockout Function with Key Override, 2-3/4" Backset, 3/4" Throw Latch, Corbin Russwin 6-Pin LFIC Prep, Less Core, Satin Chrome Finish, Left Hand/Left Hand Reverse

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Eliminates the material and labor expense of battery replacements and has a single access-code.

• Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
• Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed; not field reversible
• Backset: 2¾" (70 mm), 2⅜" (60 mm)
• Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate; ASA strike plate
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
• Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty
