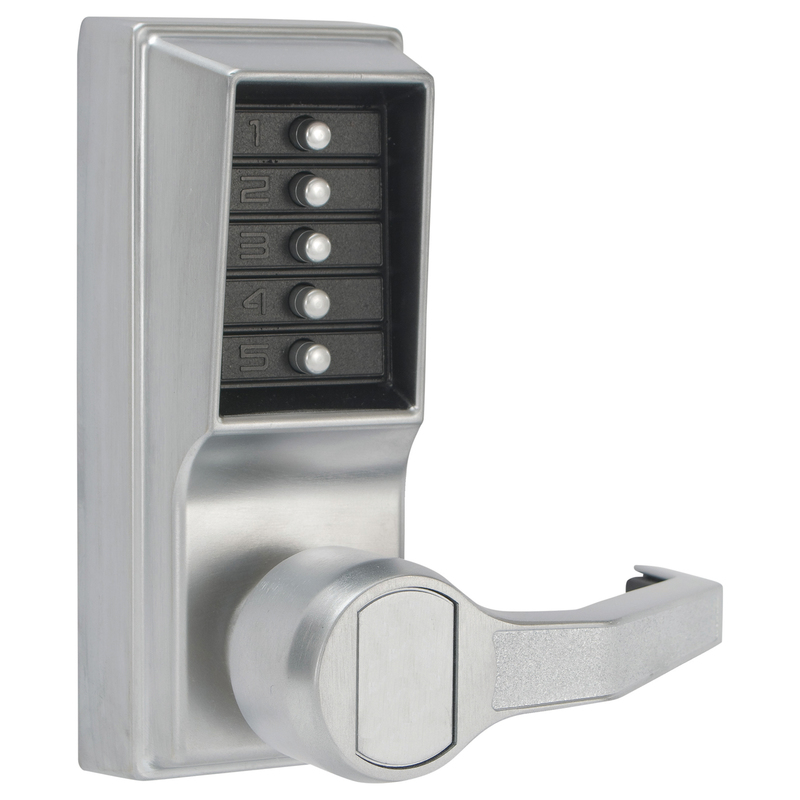

Dormakaba LR1012-26D-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba LR1012-26D-41 Mechanical Pushbutton Lock offers a robust and reliable solution for controlling access to both public and private spaces. Featuring a combination entry function, this lock eliminates the hassle of keys and cards, providing a straightforward entry method through its user-friendly pushbutton keypad. The durable satin chrome finish not only enhances its aesthetic appeal but also ensures long-lasting performance in various environments. Designed for commercial use, this heavy-duty cylindrical lever lock is pre-assembled to fit doors with a thickness ranging from 1⅜" to 2¼". It boasts a 2-3/8" backset and a ½" throw latch, with optional ¾" throw latch available. The ADA-compliant levers ensure accessibility for all users, while the vandal-resistant metal pushbuttons add an extra layer of security. Installation is a breeze on both wood and metal doors, thanks to its ASA 161 door preparation. The lock is also fire-rated for 3 hours on "A" labeled doors, meeting strict safety standards. With its factory-handed design, the Kaba Access Dormakaba LR1012-26D-41 comes with a 3-year warranty, making it a dependable choice for those seeking a secure and efficient locking solution.

Mechanical Pushbutton Lock

Pushbutton Cylindrical Lever Lock, Combination Entry Function Only, 2-3/8" Backset, 1/2" Throw Latch, Satin Chrome Finish, Right Hand/Right Hand Reverse

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Eliminates the material and labor expense of battery replacements and has a single access-code.

• Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
• Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed; not field reversible
• Backset: 2¾" (70 mm), 2⅜" (60 mm)
• Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate; ASA strike plate
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
• Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty
