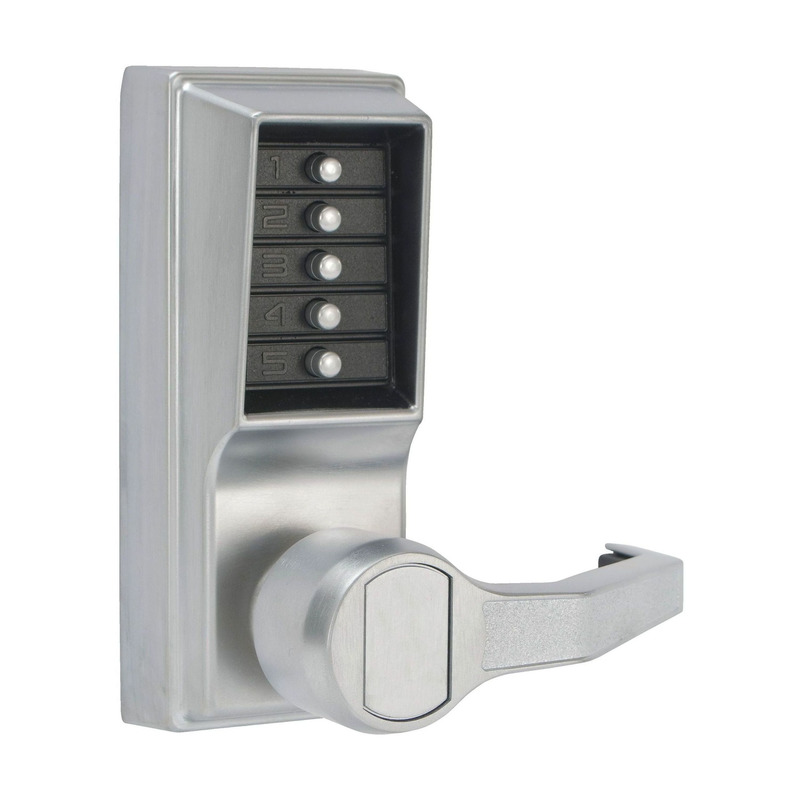

Dormakaba LR1015-26D-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba LR1015-26D-41 Mechanical Pushbutton Lock offers a robust solution for controlling access between public and private spaces. Designed as a combination entry function only lock, it features a 2-3/4" backset and a 3/4" throw latch, all finished in a sleek satin chrome that complements various architectural styles. This heavy-duty cylindrical lever lock eliminates the hassle of managing keys or cards, making it ideal for commercial applications. The Simplex mechanical pushbutton design allows for quick combination changes without removing the lock from the door, eliminating the need for batteries or complex programming. The vandal-resistant, solid metal pushbuttons ensure durability, while the fixed ADA-compliant levers provide accessibility for all users. Installation is straightforward on both wood and metal doors with ASA 161 door preparation. It accommodates door thicknesses from 1⅜" to 2¼", making it versatile for various applications. The LR1015 is also compliant with D.O.D. standards for supplemental access control and has a fire rating of 3 hours for "A" labeled doors. With a 3-year warranty, Kaba Access Dormakaba LR1015-26D-41 is a reliable choice for those seeking security, durability, and ease of use in their locking solutions.

Mechanical Pushbutton Lock

Pushbutton Cylindrical Lever Lock, Combination Entry Function Only, 2-3/4" Backset, 3/4" Throw Latch, Satin Chrome Finish, Right Hand/Right Hand Reverse

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Eliminates the material and labor expense of battery replacements and has a single access-code.

• Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
• Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed; not field reversible
• Backset: 2¾" (70 mm), 2⅜" (60 mm)
• Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate; ASA strike plate
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
• Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty
