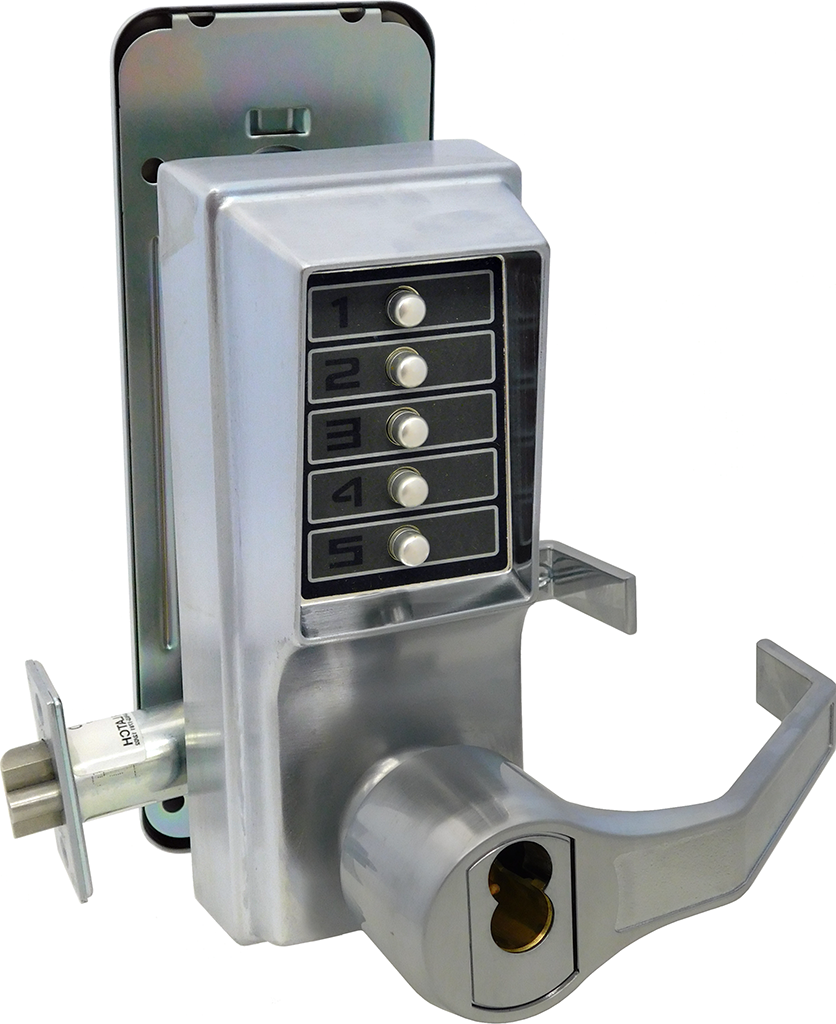

Dormakaba LR1021C26D Right Hand Pushbutton Lever Lock w/ Key Override, 2-3/4" Backset, Satin Chrome

Simplex Dormakaba LR1021C26D Right Hand Mechanical Pushbutton Lever Lock with Key Override Prep and 2-3/4" Backset in Satin Chrome Finish offers a robust solution for controlling access between public and private spaces. This fully mechanical lock eliminates the hassle of battery replacements and the complexities of key management, making it a practical choice for busy environments. With a single access code that is easy to manage, users can quickly change combinations without needing to remove the lock from the door. The solid metal pushbuttons are designed to resist vandalism, ensuring durability even in high-traffic areas. Installation is straightforward, compatible with both wood and metal doors, and requires ASA 161 door preparation with additional through holes. The lock features a return lever design and is suitable for doors ranging from 1-3/8" to 2-1/4" thick. It has a 2-1/4" crossbore size and a standard strike plate, measuring 1-1/4" x 4-7/8". The satin chrome finish not only enhances its aesthetic appeal but also provides longevity. Backed by a 3-year limited warranty, the Simplex LR1021C26D is a reliable choice for any commercial locking needs.

Right Hand Mechanical Pushbutton Lever Lock with Key Override Prep and 2-3/4" Backset Satin Chrome Finish

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

• Fully Mechanical Lock Eliminates the Material and Labor Expense of Battery Replacements
• Single Access Code—One Easy-to-Manage Code for All Users
• Lock is Easily Programmed Via Keypad Without Removing Lock From the Door
• Vandal Resistant, Solid Metal Pushbuttons
• Easily Installs on Wood or Metal Doors. ASA 161 Door Preparation with Additional Through Holes
• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code-one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed; not field reversible
• Key Override (Optional):
• Interchangeable Cores: Small format-Best and equivalents (6 or 7-pin length); core not included
• Removable Cores: Large format-Medeco/ASSA/Yale/Abloy (5 or 6-pin length); Corbin Russwin (6-pin length); Schlage, and Sargent; core not included
• Operation Modes:
• Pushbutton Access
• Passage (select models)-allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
• Privacy (select models)-disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only when in this mode.
• Economical: A cost effective access control solution
