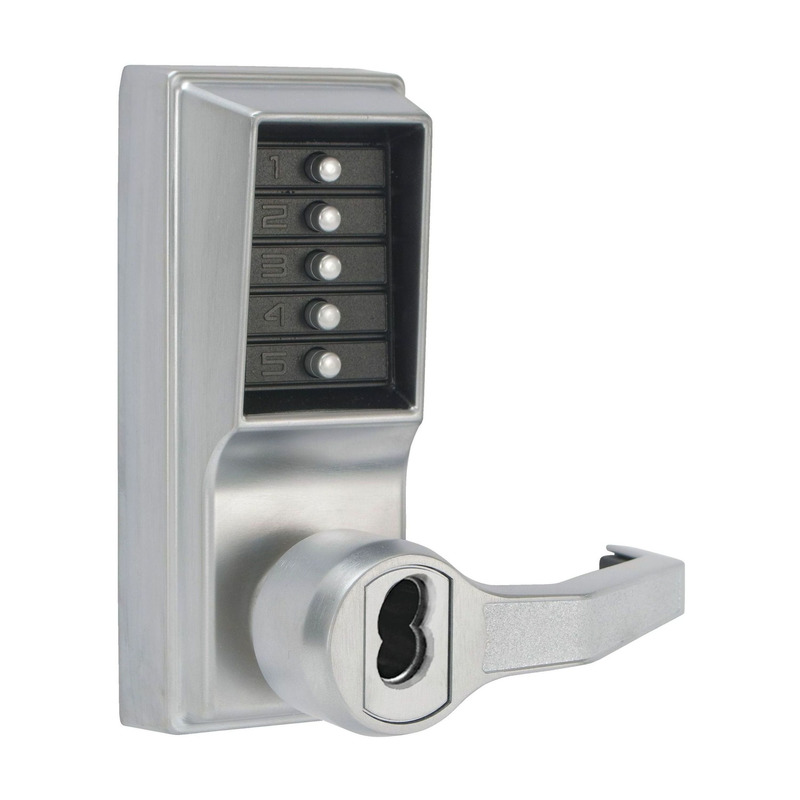

Dormakaba LR1022S-26D-41 Pushbutton Mechanical Lock

Kaba Access Dormakaba LR1022S-26D-41 Mechanical Pushbutton Lock combines security and convenience, offering a robust solution for access control in both commercial and residential settings. This pushbutton cylindrical lever lock features a combination entry function with a key override, ensuring flexibility and ease of use. With a 2-3/8" backset and a 1/2" throw latch, it accommodates various door preparations, making installation straightforward on wood or metal doors. Designed with heavy-duty construction, the LR1022S includes a cast front housing and fixed ADA-compliant levers, ensuring durability and accessibility. The vandal-resistant, solid metal pushbuttons provide reliable performance, while the single access code eliminates the hassle of managing keys or cards. This lock is pre-assembled for doors ranging from 1⅜" to 2¼" thick and meets the Americans with Disabilities Act (ADA) standards. With a 3-hour UL/ULC fire rating for "A" labeled doors, it offers peace of mind in emergency situations. Additionally, the lock is compliant with D.O.D. standards for supplemental access control, making it a wise choice for demanding environments. Backed by a 3-year warranty, the Kaba Access Dormakaba LR1022S is a dependable, user-friendly locking solution that enhances security while simplifying access management.

Mechanical Pushbutton Lock

Pushbutton Cylindrical Lever Lock, Combination Entry Function with Key Override, 2-3/8" Backset, 1/2" Throw Latch, Schlage FSIC Prep, Less Core, Satin Chrome Finish, Right Hand/Right Hand Reverse

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Eliminates the material and labor expense of battery replacements and has a single access-code.

• Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
• Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed; not field reversible
• Backset: 2¾" (70 mm), 2⅜" (60 mm)
• Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate; ASA strike plate
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
• Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty
