Ilco Unican Corporation Dormakaba M100D-10 Mortise Cylinder 1in Dummy offers a robust solution for enhancing your security needs. Crafted from solid brass bar stock and engineered to meet OEM specifications, this dummy mortise cylinder is designed for both versatility and durability. It serves as an essential component in various applications, enabling seamless integration with existing locking systems. This model boasts a length of 1 inch (25.4mm) and is ideal for installations where a functional lock is not required but a consistent aesthetic is desired. The M100D-10 is part of a comprehensive line of mortise cylinders, which includes rekeyable options compatible with original manufacturers' systems, supporting master key and grand master key configurations for enhanced access control. Furnished with Ilco® Look Alike® Keys, this dummy cylinder is not only practical but also provides a clean, professional appearance. It is available in a satin bronze finish, adding a touch of elegance while ensuring long-lasting performance. Additionally, the M100D-10 can ship via UPS, making it a convenient choice for professionals and knowledgeable homeowners alike. When security and style are paramount, the Ilco Unican Corporation Dormakaba M100D-10 Mortise Cylinder stands out as a reliable and attractive option.

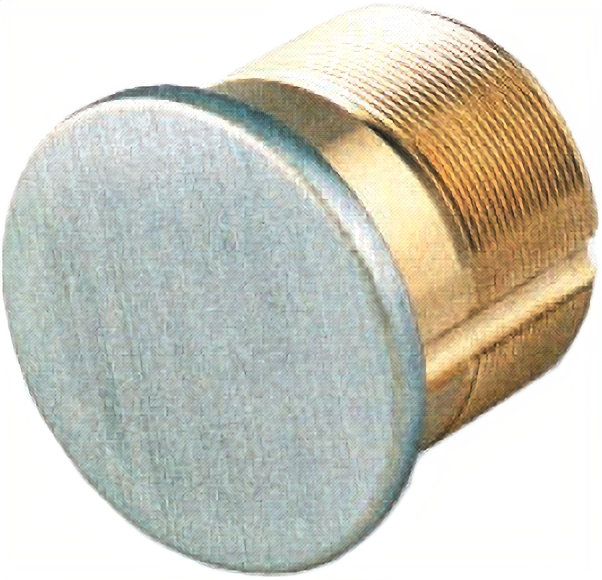

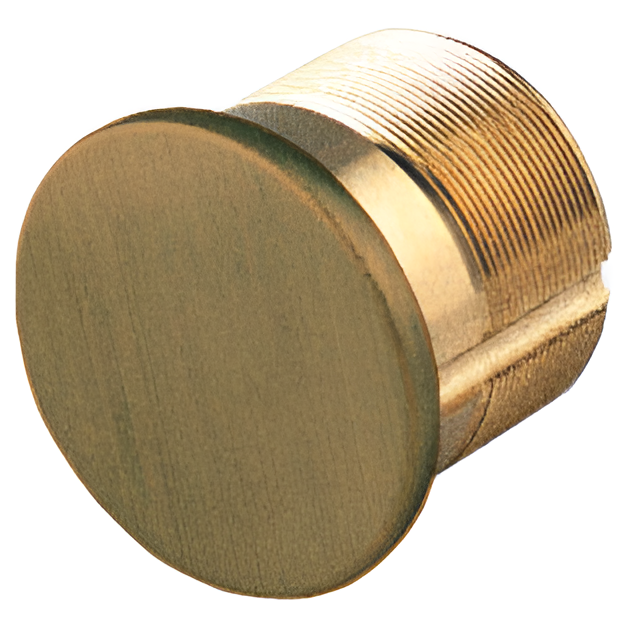

Mortise Cylinder 1in Dummy

Ilco Mortise Cylinders are machined from solid brass bar stock, engineered and manufactured to OEM specifications. Master Key and Grand Master Key quality, and are re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications.

Features:

• Mortise Cylinder:
• Rekeyable to original manufacturers systems
• 3/4" (19mm) to 1" (25.4mm) length drilled 5 pin, 1 1/8" (28.6mm) to 2" (50.8mm) length drilled 6 pin, 7 pin available for specified lengths
• Master Key and Grand Master Key quality
• Furnished with Ilco® Look Alike® Keys
• Dummy Mortise Cylinder: 4 Lengths - 15/16" (23.8mm) to 1 1/4" (31.7mm)
• Turnknob Mortise Cylinders:
• 10 Lengths - 15/16"(23.8mm) to 2" (50.8mm)
• Classroom and Captive Turnknob functions are available
• ADA Turnknob Mortise Cylinder:
• 10 Lengths - 15/16" (23.8mm) to 2" (50.8mm)
• Classroom functions are available

Keying Codes:

• KA - All keyed alike
• KD - Keyed different
• KA2 - Keyed alike in pairs
• KA4 - Keyed alike in fours
• 0B - 0 bitted - Blade Height
• MK - Master keyed
• GMK - Grand master keyed
• CMK - Construction master keyed
• When requesting MK or GMK, an additional Keying Code is required (KA, KD, KA2, etc.) Example: 7165AA2-26D-MK/KA2

Keyway:

• AA - Arrow
• NA - R1064E/Composite
• NB - 1014C/Composite
• CA - Corbin 60
• CB - Corbin 67
• CC - Corbin 77
• CE - Corbin / Russwin L4
• CD - Corbin 59
• UA - Ilco X1054K
• KS - Kwikset 1176
• LA - Lockwood 1004
• UB - Lori L100, Harloc 700, Eagle 11929
• UE - Lori Locksmith 80
• UD - Loricentric 90
• RB - Russwin D1
• RA - Russwin 981R
• GB - Sargent LA-LC
• GC - Sargent RA-RC
• GA - Sargent LA
• SC - Schlage C
• SE - Schlage E
• SF - Schlage F
• SX - Schlage C-K
• FA - Segal 9
• WA - Weiser Ez/ Falcon
• WE - Weiser 1555
• YA - Yale 8 (999)
• YG - Yale GA

Finishes:

• 03 / 605 - Bright Brass
• 04 / 606 - Satin Brass
• 05 / 609 - Antique Brass
• 10 / 612 - Satin Bronze
• 10B / 613 - Oil Rubbed Bronze
• 15 / 619 - Satin Nickel
• 26 / 625 - Bright Chrome
• 26D / 626 - Satin Chrome
• 28 / 628 - Clear Aluminum Anodized
• 29 / 622 - Black Aluminum
• 32 / 629 - Bright Stainless Steel
• 32D / 630 - Satin Stainless Steel
• 46 / 624 - Duracolor Brown Aluminum
