Dormakaba TS93-1-PT689 Track Closer Push Side G1, 689/US28 Powder Coated Aluminum

DormaKaba Architectural Hardware TS93-1-PT689 Track Closer Push Side G1 combines innovative design with robust functionality, making it a top choice for both commercial and residential applications. This closer features a unique cam and roller system, ensuring effortless door operation compared to traditional rack and pinion models. Designed for push side installation, the TS93 offers enhanced tamper resistance, with the closer mounted on the door and the track on the stop. The TS93 is available in two configurations: the TS9315, with adjustable spring power from size 1 to 5 for barrier-free requirements, and the TS9356, which accommodates larger doors with an adjustable range from size 5 to 6. An adjustable hydraulic backcheck prevents uncontrolled door openings, enhancing safety for high-traffic areas. This closer also includes adjustable delayed action, extending the closing cycle for unobstructed passage. With a maximum opening angle of 110 degrees for push side installations, the TS93 ensures accessibility while maintaining aesthetic appeal. Available in a satin aluminum finish, it can also be customized with various plated or sprayed options to match any décor. Ideal for professionals seeking durability and reliability, the DormaKaba TS93-1-PT689 is a perfect solution for high-performance door control.

Track Closer Push Side G1, 689/US28 Powder Coated Aluminum

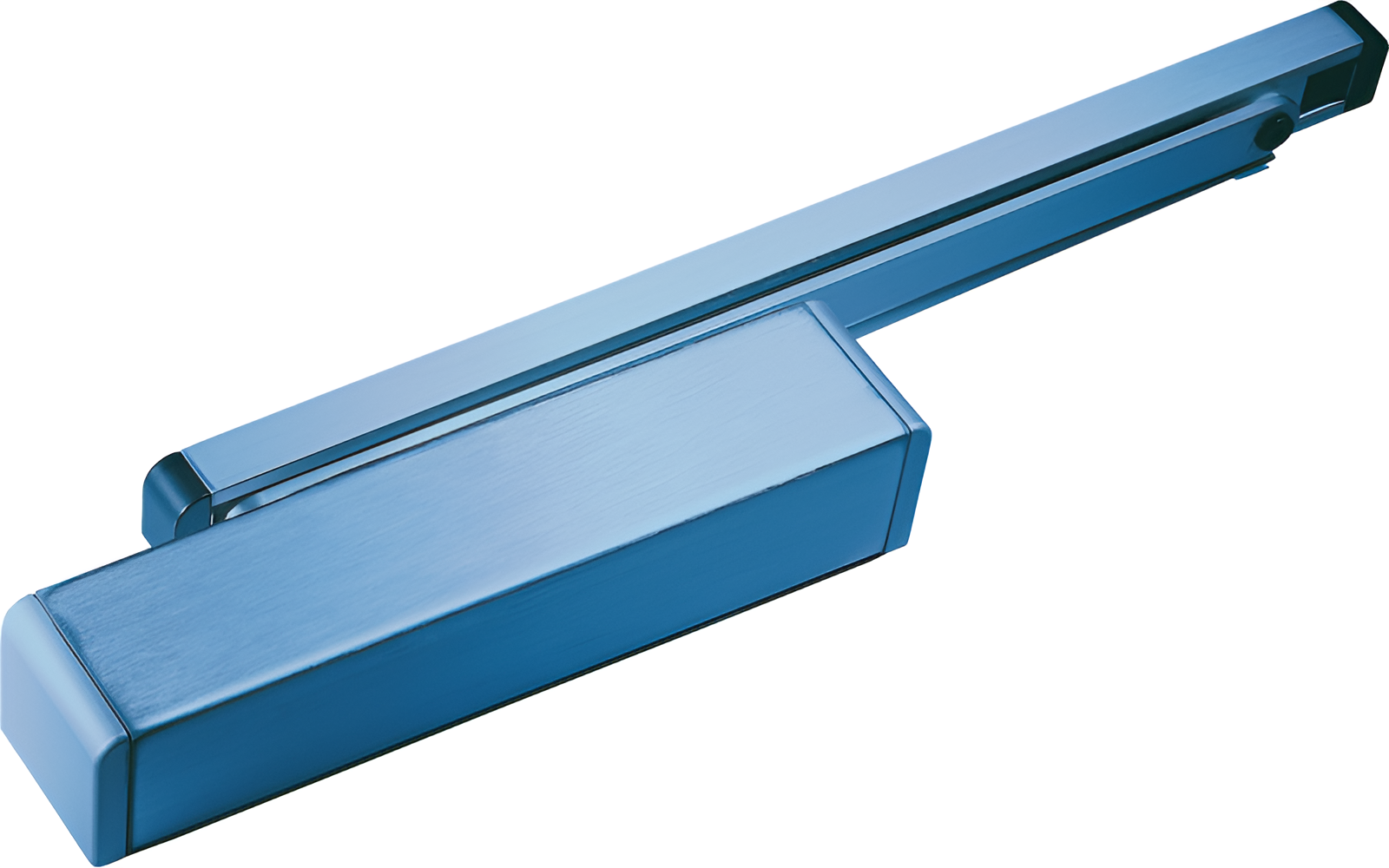

The TS93 System in Contour Design represents the pinnacle of surface applied closers because of its unique cam and roller design. Doors equipped with the TS93 will open much easier than doors with rack and pinion closers with track arms. The TS93 is a closer with regular arm operating efficiency and track arm aesthetics. When necessary, push side installation provides the benefits of track arm assemblies with the closer mounted to the door and the track mounted to the stop, creating a more tamper-resistant application.

• Push Side Installation: When necessary, push side installation provides the benefits of track arm assemblies with the closer mounted to the door and the track mounted to the stop, creating a more tamper-resistant application.
• Adjustable Spring Sizes for Barrier Free Requirements: The TS9315 will be available with field adjustable spring power from size 1 to 5 for barrier-free requirements. The TS9356 will be adjustable from size 5 to 6 with 50 percent adjustment.
• Hydraulic Backcheck: The adjustable backcheck prevents uncontrolled opening of door.

Technical Details:

• Available as TS9315 closers for interior and exterior barrier-free requirements (adjustable size 1–5).
• Available as TS9356 closers for greater closing force for exceptionally wide, tall, or heavy doors (size 5–6 +50 percent adjustment).
• Adjustable backcheck prevents uncontrolled opening of door.
• Adjustable delayed action extends the closing cycle to allow unobstructed passage through opening.
• Optional hold open, adjustable for degree of hold open and hold open force. Hold open is selectable on or off.
• SN3 sex nuts supplied standard for 1-3/4" thick door.
• Optional (CS) cushion limit stay for standard (T/PT) applications to assist slowing door in opening cycle (auxiliary stop required by others)

Specifications:

• The TS93 System in Contour Design hydraulic surface applied closer with steel cam, roller, and adjustable spring, incorporating a track arm assembly.
• The TS93 will have two separate temperature compensating, noncritical adjustment valves to control sweep and latch closing speeds.
• Adjustable backcheck will take effect at approximately 65-deg.
• Adjustable hydraulic delayed action will be effective from approximately 120-deg. to approximately 70-deg.
• The TS9315 will be available with field adjustable spring power from size 1 to 5 for barrier-free requirements.
• The TS9356 will be adjustable from size 5 to 6 with 50 percent adjustment.
• Maximum opening range will be approximately 175-deg for pull side installations (T/ST) and 110-deg (PT) or 135-deg (SPT) for push side installations.
• Install the TS93 closer body on the door and the track arm assembly on the stop surface with the supplied bracket for push side (PT) applications.
• Note: Closer cover, arm, and track channel are plated. Cover end caps and track end caps are painted complementary or contrasting color.

Finishes:

• Standard Sprayed Finishes:
• Aluminum: 689
• Bronze: 691 (Dull), 690 (Statuary), or 695 (Dark Duranodic)
• Gold: 696
• Black: 693
• Optional DORMA Custom Color or Designer Color Finishes:
• Special Order
• Optional Plated Finishes:
• Brass: 605 (Bright)
• Stainless: 630 (Satin)

Features

• Hydraulic Backcheck: The adjustable backcheck prevents uncontrolled opening of door.
• Adjustable Spring Sizes for Barrier Free Requirements: The TS9315 will be available with field adjustable spring power from size 1 to 5 for barrier-free requirements. The TS9356 will be adjustable from size 5 to 6 with 50 percent adjustment.
• Push Side Installation: When necessary, push side installation provides the benefits of track arm assemblies with the closer mounted to the door and the track mounted to the stop, creating a more tamper-resistant application.

Resources

• Cut Sheet
