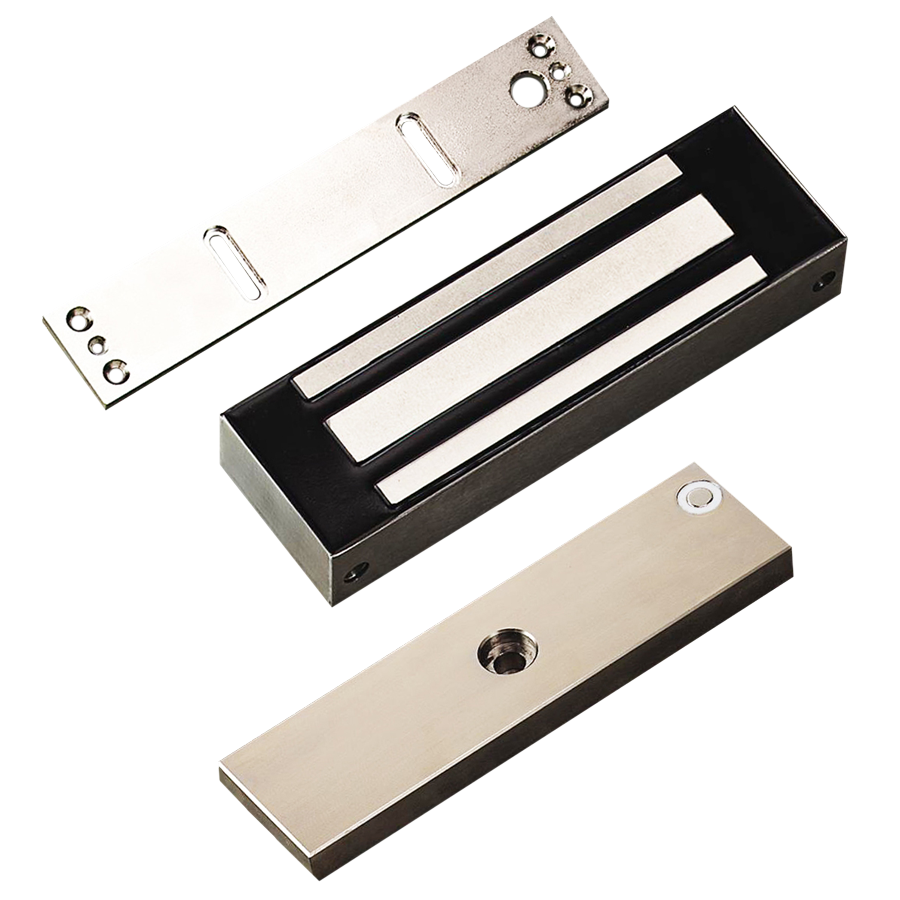

Dortronics Systems, Inc. 1000D 1200lbs Single Mag Lock for Outswing Doors is engineered for robust security in harsh environments. This electromagnetic lock features sealed electronics protected by a durable stainless steel housing, ensuring longevity and resistance to rust and corrosion. Ideal for both interior and exterior applications, the 1000D excels in securing doors and gates with its fail-safe operation, releasing instantly upon command or power loss, thus eliminating concerns about mechanical failure. Designed for versatility, the 1000D can be mounted on outswing doors, and with the optional 1099-00 Conversion Kit, it can be easily adapted for inswing door applications. The low current draw of just 170mA at 24VDC allows for efficient operation, while the lock maintains a formidable 1200-pound holding force. Its universal mounting options and SPDT door position switch enhance functionality, allowing integration with various access control systems. The lock’s physical dimensions include an 8-1/4" length, 1-1/2" depth, and a height of 2-7/8" (including the mounting plate). With a lifetime warranty, the Dortronics Systems 1000D ensures reliability and peace of mind, making it an exceptional choice for secure entrances.

1200lbs Single Mag Lock for Outswing Doors, SPDT Door Position Switch, 12/24VDC (Dual Voltage - Field Selectable), Sealed Electronics, Weather Resistant, Stainless Steel Housing

The 1000 Series electromagnetic locks can be used in harsh environments to secure doors and gates. All electronics are sealed in epoxy and are protected by the Stainless Steel housing cover. The housing, armature and exposed face of the electric lock are nickel plated to resist rust and corrosion. A rigid conduit fitting can be provided on one end of the lock to protect power wiring in gate control installations.

Features:

• Fail-Safe Operation: All Dortronics electromagnetic locks are failsafe, releasing instantly upon command or loss of power. There are no moving parts to wear, stick or bind. Without any bolt travel time or possibility of misalignment to raise concern, both locking and unlocking are accomplished with ease and efficiency.
• Extended Service Life: The rugged design and durable construction of this lock assures virtually endless actuations without fear of electrical fatigue or mechanical breakdown. This, combined with manufacturing to the most stringent quality control standards, allows Dortronics to offer a Lifetime Warranty on all electro-magnetic locks.
• Universal Mounting: The standard #1000 model is supplied with an adjustable mounting plate for use on outswing doors. The #TJ1000 unit is furnished with an angle lock mounting plate and an armature "Z" bracket for inswing door installations. Any 1000 series lock may be converted in the field for inswing door applications by adding the 1099-00 Conversion kit. An optional XCF conduit fitting is available for exterior gate control applications.
• Low Current Draw: All 1000 series locks can be operated on either 12 or 24 VDC. The efficient design of these locks requires only 170ma. @ 24 Volts DC to maintain the rated 1200 pound holding force. The well confined magnetic field combined with the built-in spike and surge suppression system of these locks, allow integration with any access control system. Able to be controlled individually or simultaneously from one or several locations make the use of these locks ideal for securing manual or automatically operated doors and gates.
• Wiring: The 1000 series locks are supplied standard with a multiconductor, 20 gauge power cable 48" long. The configuration in which these leads are connected to the DC power source determines the operating voltage of the unit. (xCF option comes with 10’ leads) The optional SPDT Door Position switch has 3 color coded conductors.
• Gate Mounting: 1000xCF Specifies Conduit Fitting. When installing these locks on exterior swing and slide gates, #1000xCF locks should be specified to receive units with the conduit fitting. This will afford protection to the power wiring for the lock. The 1099-00 Conversion Kit may also be used for swinging gate applications.
• Finish: 1000 series locks are encased in a brushed Stainless Steel housing suitable for interior or exterior applications. Electro-magnet face and armature are electroless nickel plated for high resistance to rust and corrosion.

Specifications:

• Physical Size:
• #1000 Lock – 8-1/4" Long x 1-1/2" Deep x 2-7/8" High (including the mounting plate)
• #1000 Armature – 8-1/2" Long x 2-1/4" high x 5/8" thick
• Electrical:
• 170mA @ 24VDC
• 340mA @ 12VDC
• Optional DPS Switch Contacts
• 100mA @ 30 VDC Max. Rated
• In-Swinging Doors & Gates:
• TJ1000 - 1000 series lock with top jamb mounting hardware.
• 1099-00 Kit converts any 1000 to TJ1000
• xD – Integral door Position Switch SPDT weather proof sealed
• Conduit Fitting 1/2" EMT Compression type accepts 1/2" conduit comes with 10’ leads
