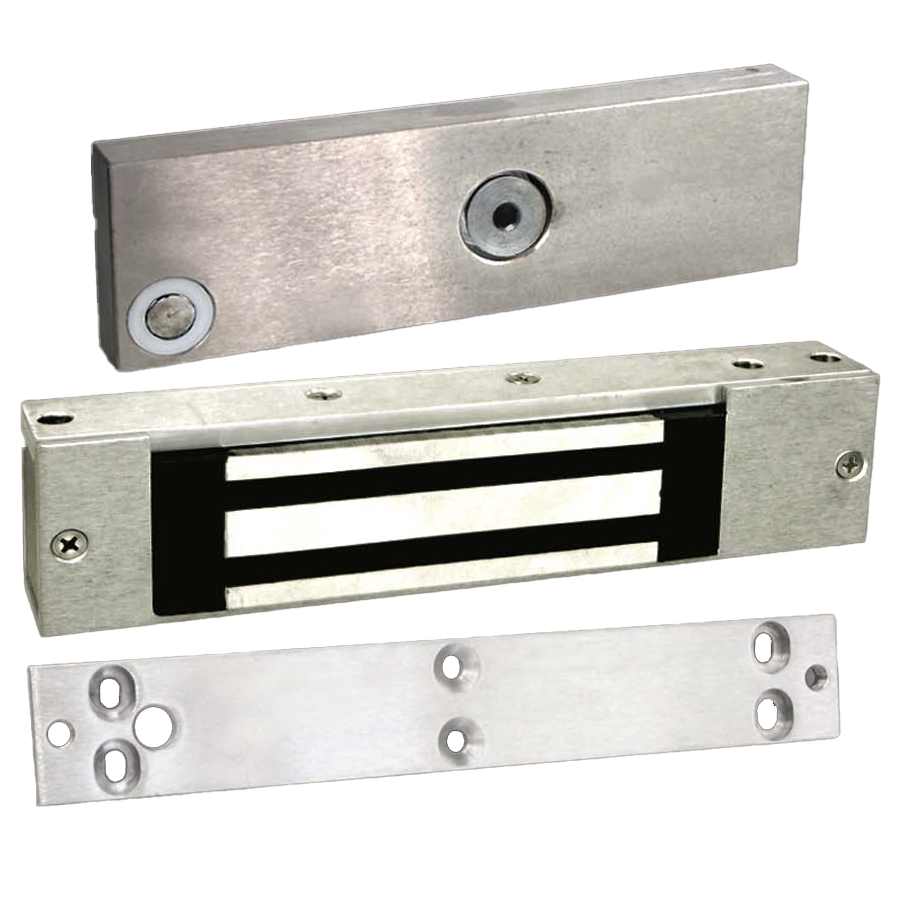

Dortronics 1107D Narrow 2" Profile 600lbs Slim Line Mag Lock with SPDT Switch 12/24VDC

Dortronics Systems, Inc. 1107D Narrow 2in Profile Mag Lock is an advanced electromagnetic locking solution that delivers reliable and instantaneous door control. Designed for single outswing doors, this slimline mag lock has a depth of just 1-1/4 inches, making it ideal for narrow header applications. The reduced profile minimizes the need for additional mounting brackets, streamlining installation and reducing costs. This 600 lbs holding force lock is inherently fail-safe, ensuring immediate release upon power loss or command, which is crucial for safety in emergencies. The well-contained magnetic field allows for use in sensitive areas, such as computer rooms, while built-in Transient Surge suppression protects against voltage spikes. Compatibility with NFPA Life Safety standards means it works seamlessly with fire and hazard detection systems, ensuring unobstructed egress. The included concealed door position switch monitors door status, alerting to any propped or forced entry conditions. For added versatility, the 1107D can be converted from outswing to inswing applications using the optional 1095-07 Inswing Conversion Kit, complete with necessary hardware. Encased in brushed clear anodized aluminum, this lock not only provides robust security but also resists rust and corrosion, ensuring long-lasting performance in diverse environments.

Narrow 2in Profile, 600lbs Single Door Slim Line Mag Lock, SPDT Door Position Switch, 12/24VDC (Dual Voltage - Field Selectable)

This state-of-the-art electromagnetic locking device provides positive, instantaneous door control. Models are available for single outswing, inswing, and sliding doors or gates. Filler plates, angle brackets, and other mounting adapters are available to accommodate a wide range of door and frame types and conditions.

Features:

• Ultra Slim Profile: Designed to fit narrow style header applications, the 1- 1/4" lock body depth greatly reduces the need for angle mounting brackets and filler plates, saving installation time and expense.
• Safe Operation: All 1107xD electro-magnetic locking devices are inherently fail-safe, releasing instantly upon command or loss of power. Both locking and unlocking are accomplished with ease and efficiency. The well confined magnetic field of these locks allow them to be used in computer rooms and other electronically sensitive areas. The built-in Transient Surge suppression protects the electromagnet from voltage spikes.
• NFPA Life Safety Compatible: Electromagnetic locking devices function independently of mechanical locks and are ideal for use with fire and hazard detection systems to provide unobstructed egress upon loss of power due to an alarm condition.
• Concealed Door Status Switch: A concealed Door Position Switch is included to report door status to monitoring equipment for the detection of open Propped or Forced door conditions.
• Field Convert to Inswing: The 1107xD Maglocks were designed to accept the 1095-07 Inswing Conversion Kit. Change from outswing to inswing door applications on site utilizing the kit which includes a Z-Bracket and angle mounting bracket complete with hardware and drilling template.

Specifications:

• Models:
• 1107xD – Single Door standard Outswing (600 Lbs.)
• TJ1107xD – Single Inswing Door With ZBracket (600 Lbs.)
• 1195-07 Inswing/Gate Conversion Kit
• Physical Size:
• 1107xD Housing – 8-1/4" Long x 2-1/4" High x 1-1/4" Deep
• TJ1107xD Housing & Angle bracket – 8-1/4" Long x 2-1/4" High x 1-3/4" Deep
• Electrical: 1107xD – 245ma @ 24VDC, 480ma @ 12VDC
• Concealed Door Position Switch SPDT Rated @ 100 Milliamps @ 30 Volts DC
• Finish: 1107 series locks are encased in a brushed Clear Anodized Aluminum Housing Electro-magnet face and armature are Nickel plated for high resistance to rust and corrosion.
