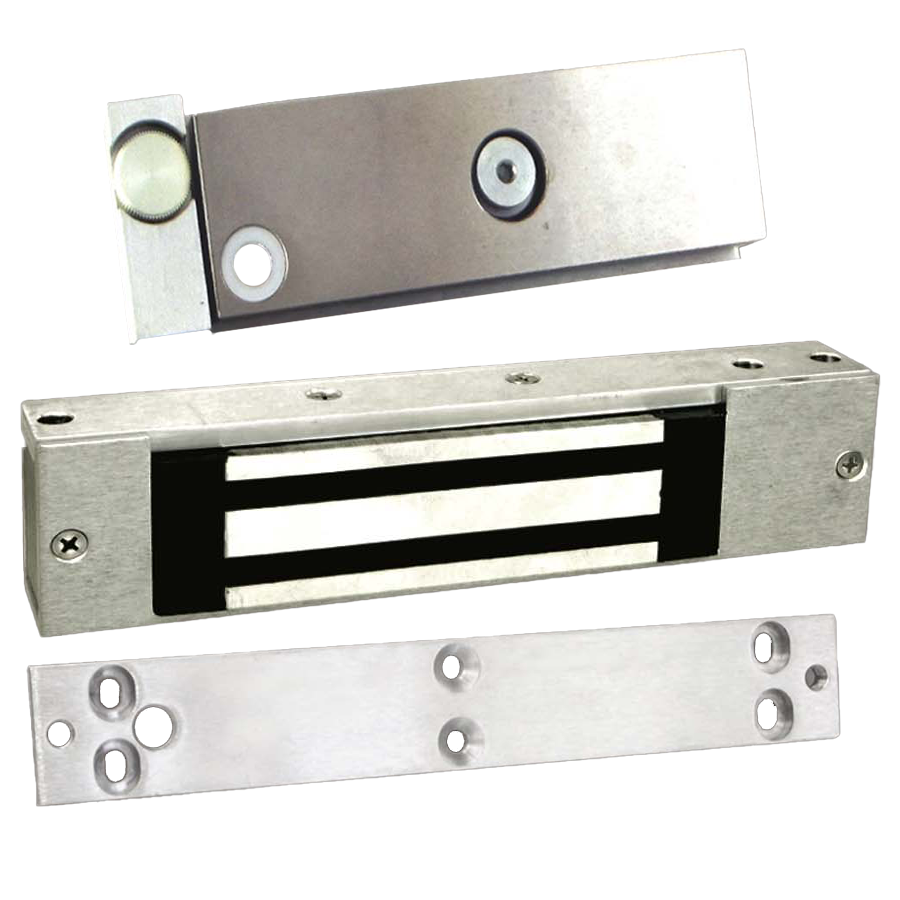

Dortronics 1107EDR-C Narrow 2in Profile 600lbs Delayed Egress Single Mag Lock with Microswitch

Dortronics Systems, Inc. 1107EDR-C Narrow 2in Profile, 600lbs Delayed Egress Single Mag Lock is designed to deliver exceptional security and reliability for various door types. This state-of-the-art electromagnetic locking device is equipped with a Microswitch actuator that accurately senses door movement, ensuring positive door control while adhering to NFPA Life Safety standards. The unit features a concealed Door Position Switch that reports door status, facilitating efficient management of re-lock and forced door conditions. Built for versatility, the 1107EDR-C can be used with the Dortronics 7101-P Delayed Egress Panel and is compatible with most delayed egress controllers and access control systems. Its rugged all-metal construction promises unlimited lock and unlock cycles without electrical fatigue, backed by a Lifetime Limited warranty. The electromagnetic lock operates with ease, releasing instantly upon command or power loss, making it an ideal choice for high-security areas, including computer rooms. With a brushed Clear Anodized Aluminum finish and zinc-plated components, the lock is designed for durability, resisting rust and corrosion. Specifications include a housing size of 8-1/4" Long x 2-1/4" High x 1-1/4" Deep, and it operates at 245ma @ 24VDC. Ensure safety and security without compromise with the Dortronics 1107EDR-C.

Narrow 2in Profile, 600lbs Delayed Egress Single Mag Lock, with Egress Microswitch Actuator and DPS Door Position Switch with 15ft Wire Leads, Use with 7101-P Delayed Egress Panel

Designed for use with the 7101-P Delayed Egress Panel, the 1107xEDR employs a Microswitch actuator which senses door movement via the spring-loaded Armature. The Microswitch sensitivity is field adjustable to accommodate various applications. A concealed Door Position Switch is also included and utilized to report door status for Re-lock and Forced door conditions to the Egress panel.

Features:

• Reliable & Versatile: This state of the art electromagnetic locking device provides positive, instantaneous door control. Models are available for single outswing, inswing, and sliding doors or gates. Filler plates, angle brackets, and other mounting adapters are available to accommodate a wide range of door and frame types and conditions.
• NFPA Life Safety Compatible: Since electromagnetic locking devices function independently of mechanical locks; they are ideal for use with fire and hazard detection systems to provide unobstructed egress and are highly recommended for use on Exit Door Control Systems requiring delayed releasing, per NFPA 101 or BOCA Codes.
• Safe Operation: All 1107xEDR electromagnetic locking devices are inherently fail-safe, releasing instantly upon command or loss of power. Both locking and unlocking are accomplished with ease and efficiency. The well confined magnetic field of these locks allow them to be used in computer rooms and other electronically sensitive areas. The built-in Transient Surge suppression protects the electro-magnet from noise and voltage spikes.
• System Compatibility: Although the 1107xEDR Maglocks were designed to work with the Dortronics 7101-P they will work reliably with most Delayed Egress controllers as well as other security alarm and access control systems.
• Extended Service: The rugged all metal design and durable construction ensures unlimited lock and unlock cycles without electrical fatigue or mechanical breakdown. Our locks are manufactured to the most stringent quality control standards. This allows Dortronics to offer a Lifetime Limited warranty on all 1107 Series electromagnetic locks.

Specifications:

• Models:
• 1107xEDR – Single Door standard Outswing (600 Lbs.)
• TJ1107xEDR – Single Inswing Door With Z-Bracket (600 Lbs.)
• 1195-07xEDR – Inswing Conversion Kit Converts a standard 1107XEDR to an inswing Top Jamb mount unit.
• Physical Size :
• 1107xEDR Housing – 8-1/4" Long x 2-1/4" High x 1-1/4" Deep
• TJ1107xEDR Housing & Angle bracket – 8-1/4" Long x 2-1/4" High x 1-1/2" Deep
• Electrical: 1107xEDR – 245ma @ 24VDC, 480ma @ 12VDC
• Egress Actuator Switch Normally Open rated @ 3 amps @ 30 volts DC
• Concealed Door Position Switch SPDT Rated @ 100 Milliamps @ 30 Volts DC
• Finish: 1107 series locks are encased in a brushed Clear Anodized Aluminum Housing Electro-magnet face and armature are Zinc plated for high resistance to rust and corrosion.
