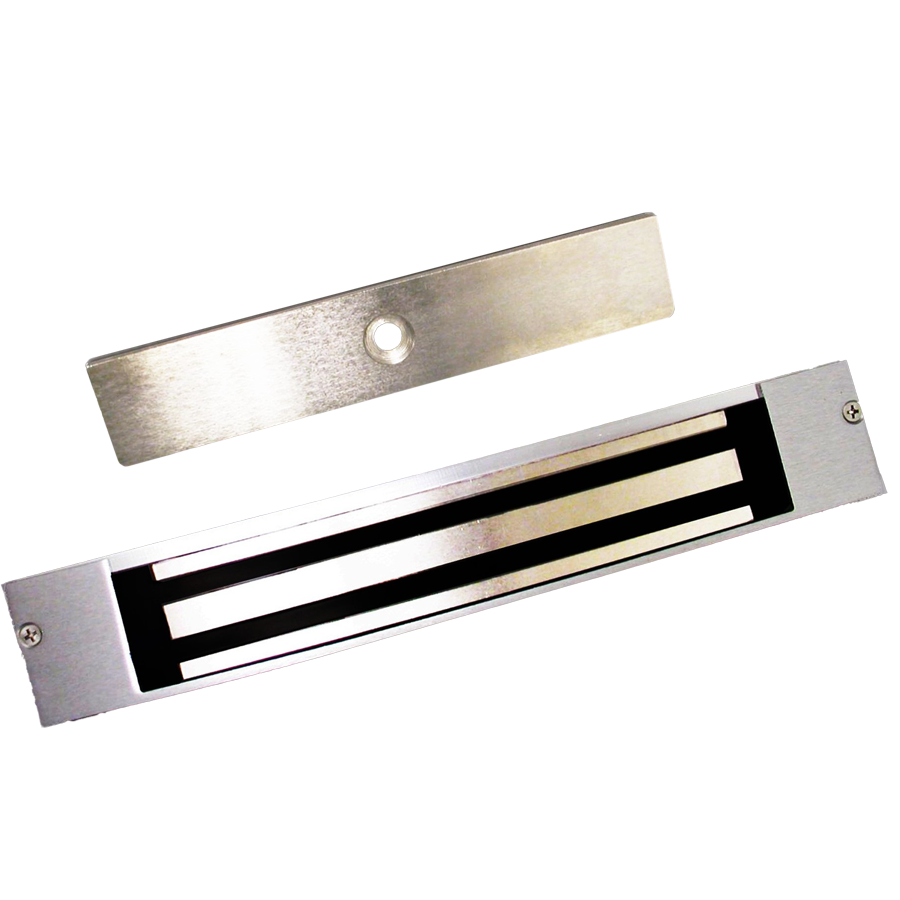

Dortronics Systems, Inc. 1150D Narrow 2-5/8in Profile Magnetic Lock offers robust security with an impressive 1500 lbs of holding force, making it ideal for both residential and commercial applications. This electro-magnetic locking device ensures safe operation as it is inherently fail-safe, releasing instantly upon command or power loss. With no moving parts, it eliminates concerns regarding wear and tear, ensuring reliable performance over time. Constructed with sealed electronics and housed in durable stainless steel, the 1150D is weather-resistant, perfect for various environments. Its versatile design allows easy installation on a range of door types, supported by filler plates and mounting adapters. The maglock is compatible with fire safety systems, providing unobstructed egress in emergencies, aligning with NFPA and BOCA codes. This model can be easily controlled and monitored from multiple locations, making it suitable for integration with automatic doors and security alarms. The built-in suppressor system protects connected circuitry from electrical noise, ensuring seamless operation with electronic access control systems. With a size of 12" long x 2-5/8" high x 1-7/8" deep, the 1150D is available in various finishes, including Dark Bronze Anodized and Polished Chrome, to complement any setting. Trust in Dortronics for a lifetime of dependable security solutions.

Narrow 2-5/8in Profile, 1500lbs Single Mag Lock, SPDT Door Position Switch, 12/24VDC (Dual Voltage - Field Selectable), Sealed Electronics, Weather Resistant, Stainless Steel Housing

Solid, secure door control is possible with this state of the art electromagnetic lock. Capable of providing over 1500 pounds of holding force, per door leaf, these locks are available in models for single and pairs of out-swinging or in-swinging doors. Filler plates, angle brackets, and other mounting adapters allow easy installation on a wide range of door and frame types and conditions.

Features:

• Safe Operation: ALL 1150 series electro-magnetic locking devices are inherently fail-safe, releasing instantly upon command or loss of power. With no moving parts to wear, stick or bind; no mechanical linkages to bend or break; and no bolt travel time or misalignment concerns, both locking and unlocking are accomplished with ease and efficiency.
• Extended Service: The rugged design and durable constructions insure virtually endless actuations without fear of electrical fatigue or mechanical breakdown. This, combined with manufacturing to the most stringent quality control standards, allows Dortronics to offer a Lifetime Warranty on all electro-magnetic locks.
• NFPA Life Safety Compatible: As electromagnetic locking devices function independently of mechanical locks, installation of magnetic locks will not jeopardize the door rating of an opening. Magnetic locks are ideal for use with fire and hazard detection systems to provide unobstructed egress and are highly recommended for use on Exit Door Control Systems requiring delayed releasing, per NFPA 101 or BOCA Codes.
• Universal Control: Capable of being controlled and monitored individually, sequentially, or simultaneously from one or several locations, the application of 1150 maglocks can be used with automatic swinging and sliding door systems, and most security alarm systems. The well confined magnetic field of these locks allow them to be used in computer rooms and other electronically sensitive areas. With the built-in suppressor system protecting connected circuitry and components from noise and spikes, 1150 maglocks can be reliably interfaced with any electronic access control and monitoring equipment.

Specifications:

• Models:
• 1150- Single Door (1500 Lbs. total)
• 1152- Double Door (1500 Lbs. per leaf)
• 1155- Double Door, Single Lock with Split armatures (750 Lbs. per door leaf)
• Physical Size:
• 1150 Housing- 12" long x 2-5/8" high x 1-7/8" deep overall
• 1152 Housing- 24" long x 25/8" high x 1-7/8" deep overall
• 1155 Housing-12" long x 2-5/8" high x 1-7/8" deep overall
• 1150/1152/1155 Projection – 3-1/8" total depth including armature
• Electrical:
• 1150/1155 – 300ma @ 24VDC, 600ma @ 12VDC
• 1152 – 600ma @ 24VDC, 1.20 amp @ 12VDC
• In-Swinging Doors: TJ (prefix) – Top jamb mounting for inswinging doors (includes back mount housing and Z bracket for armature)
• Custom Housings:
• LV (prefix) – Long housing for vertical jamb mounted locks
• LW (prefix) – Wide housing for horizontal full width mounted locks

Finishes:

• DBA - Dark Bronze Anodized
• US3 - Polished Brass
• US4 - Satin Brass
• US26 - Polished Chrome
• US26D - Satin Chrome
