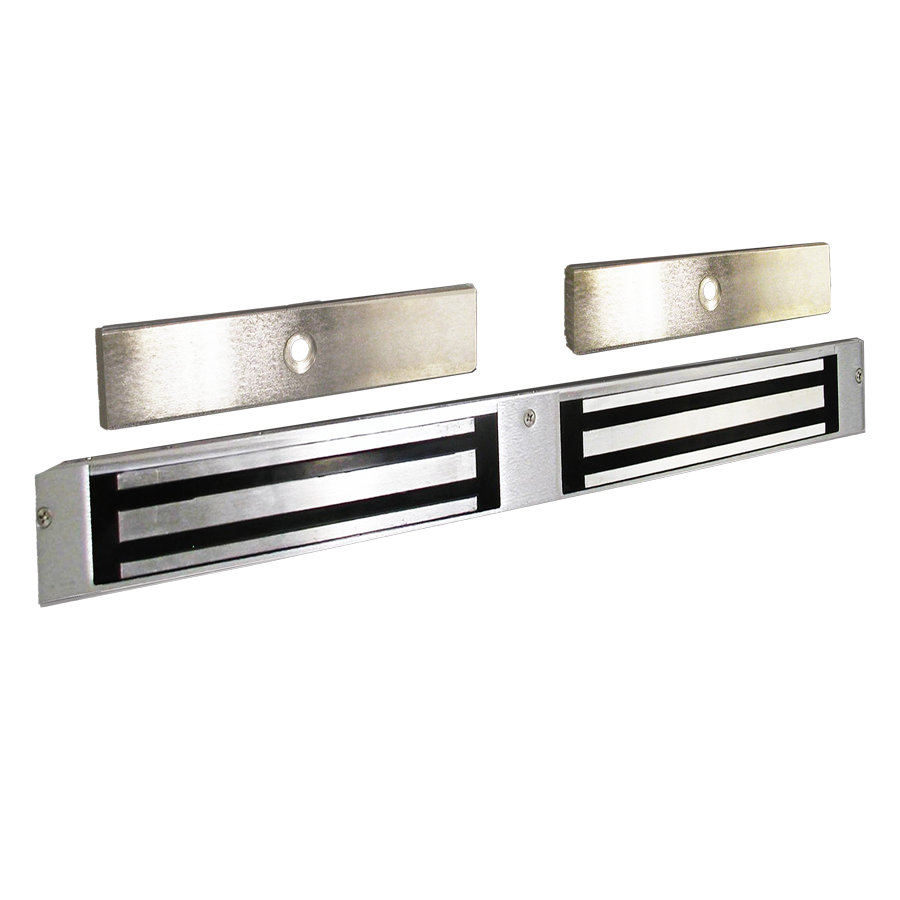

Dortronics 1152-2D Narrow 2-5/8in 1500lbs Double Mag Lock, Dual Voltage, Weather Resistant

Dortronics Systems, Inc. 1152-2D Narrow 2-5/8in Profile is a robust double electromagnetic lock designed to deliver exceptional security for two-door configurations. With an impressive holding force of 1500 lbs per door leaf, this lock ensures your premises are well-protected against unauthorized access. Its dual voltage capability (12/24VDC) allows for flexible installation options, while the sealed electronics and weather-resistant stainless steel housing guarantee durability in various environments. The 1152-2D features two door position switches, enhancing security by allowing monitoring of door status. This fail-safe device releases immediately upon command or power loss, eliminating concerns about mechanical malfunctions. Its rugged design offers extended service life, with no moving parts to wear out, ensuring reliable operation with minimal maintenance. Compatible with NFPA Life Safety standards, the 1152-2D is ideal for use with fire and hazard detection systems, promoting safety without compromising security. The lock can be controlled and monitored individually or in unison, making it a perfect solution for various applications, including automatic doors and security alarm systems. Available in a range of finishes, including Dark Bronze Anodized and Polished Chrome, the Dortronics 1152-2D combines functionality with aesthetic appeal, making it a versatile choice for any professional installation.

Narrow 2-5/8in Profile, 1500lbs Double Mag Lock, Two Door Position Switches, 12/24VDC (Dual Voltage - Field Selectable), Sealed Electronics, Weather Resistant, Stainless Steel Housing

Solid, secure door control is possible with this state of the art electromagnetic lock. Capable of providing over 1500 pounds of holding force, per door leaf, these locks are available in models for single and pairs of out-swinging or in-swinging doors. Filler plates, angle brackets, and other mounting adapters allow easy installation on a wide range of door and frame types and conditions.

Features:

• Safe Operation: ALL 1150 series electro-magnetic locking devices are inherently fail-safe, releasing instantly upon command or loss of power. With no moving parts to wear, stick or bind; no mechanical linkages to bend or break; and no bolt travel time or misalignment concerns, both locking and unlocking are accomplished with ease and efficiency.
• Extended Service: The rugged design and durable constructions insure virtually endless actuations without fear of electrical fatigue or mechanical breakdown. This, combined with manufacturing to the most stringent quality control standards, allows Dortronics to offer a Lifetime Warranty on all electro-magnetic locks.
• NFPA Life Safety Compatible: As electromagnetic locking devices function independently of mechanical locks, installation of magnetic locks will not jeopardize the door rating of an opening. Magnetic locks are ideal for use with fire and hazard detection systems to provide unobstructed egress and are highly recommended for use on Exit Door Control Systems requiring delayed releasing, per NFPA 101 or BOCA Codes.
• Universal Control: Capable of being controlled and monitored individually, sequentially, or simultaneously from one or several locations, the application of 1150 maglocks can be used with automatic swinging and sliding door systems, and most security alarm systems. The well confined magnetic field of these locks allow them to be used in computer rooms and other electronically sensitive areas. With the built-in suppressor system protecting connected circuitry and components from noise and spikes, 1150 maglocks can be reliably interfaced with any electronic access control and monitoring equipment.

Specifications:

• Models:
• 1150- Single Door (1500 Lbs. total)
• 1152- Double Door (1500 Lbs. per leaf)
• 1155- Double Door, Single Lock with Split armatures (750 Lbs. per door leaf)
• Physical Size:
• 1150 Housing- 12" long x 2-5/8" high x 1-7/8" deep overall
• 1152 Housing- 24" long x 25/8" high x 1-7/8" deep overall
• 1155 Housing-12" long x 2-5/8" high x 1-7/8" deep overall
• 1150/1152/1155 Projection – 3-1/8" total depth including armature
• Electrical:
• 1150/1155 – 300ma @ 24VDC, 600ma @ 12VDC
• 1152 – 600ma @ 24VDC, 1.20 amp @ 12VDC
• In-Swinging Doors: TJ (prefix) – Top jamb mounting for inswinging doors (includes back mount housing and Z bracket for armature)
• Custom Housings:
• LV (prefix) – Long housing for vertical jamb mounted locks
• LW (prefix) – Wide housing for horizontal full width mounted locks
• 2D = Two Door Position Switches (as above for use with pairs of doors)

Finishes:

• DBA - Dark Bronze Anodized
• US3 - Polished Brass
• US4 - Satin Brass
• US26 - Polished Chrome
• US26D - Satin Chrome
