Dortronics 3300D Electric Strike with Latch Bolt Sensor, 12/24VDC, ANSI Prep, Lip Extensions Available

Dortronics Systems, Inc. 3300D Electric Strike with Latch Bolt Sensing Switch offers a robust solution for security needs with its heavy-duty stainless steel construction and a static strength rating of 1,000 lbs. Designed for both 12VDC and 24VDC systems, this electric strike is UL Security Listed, ensuring reliability under burglary-resistant standards. One of its standout features is the quick change operation mode, allowing for easy conversion from fail-secure to fail-safe with just a simple screwdriver-no special tools required. The continuous duty rating means it can operate indefinitely without risk, making it ideal for high-traffic applications, having been tested for up to 250,000 cycles. The 3300D is non-handed, accommodating both left and right-hand doors, and comes with a universal stainless steel ANSI-style strike plate. Its deep latch bolt pocket can accept latch bolts up to ½" long, enhancing compatibility with various hardware devices. For added functionality, the optional latch bolt monitoring switch provides real-time secure or unsecure door status, integrating seamlessly into an access control system. With a brushed stainless steel finish and a compact design, the Dortronics 3300D Electric Strike is perfect for interior or exit door frame applications, ensuring both security and aesthetic appeal.

Electric Strike with Latch Bolt Sensing Switch, 12/24VDC, Strike Plate for ANSI Prep (4-7/8in x 1-1/4in), Lip Extensions Available

The heavy duty keeper with stainless steel jaw and strike plate have a 1,000 lb. Static Strength rating. All 3300 series strikes are UL Security Listed under Burglary-Resistant Electric Locking Mechanisms.

Features:

• Quick Change Operation Mode: A simple field adjustment with a screw driver will quickly convert these electric strikes from the factory default fail-secure to fail-safe operation; no need for special tools.
• Continuous Duty Rated: These electric strikes are rated for continuous operation and may be safely energized indefinitely. They have also been tested to 250,000 cycles for high traffic applications.
• Non-handed: The 3300 and 3300xD strikes are non-handed and can be used with left or right hand doors.

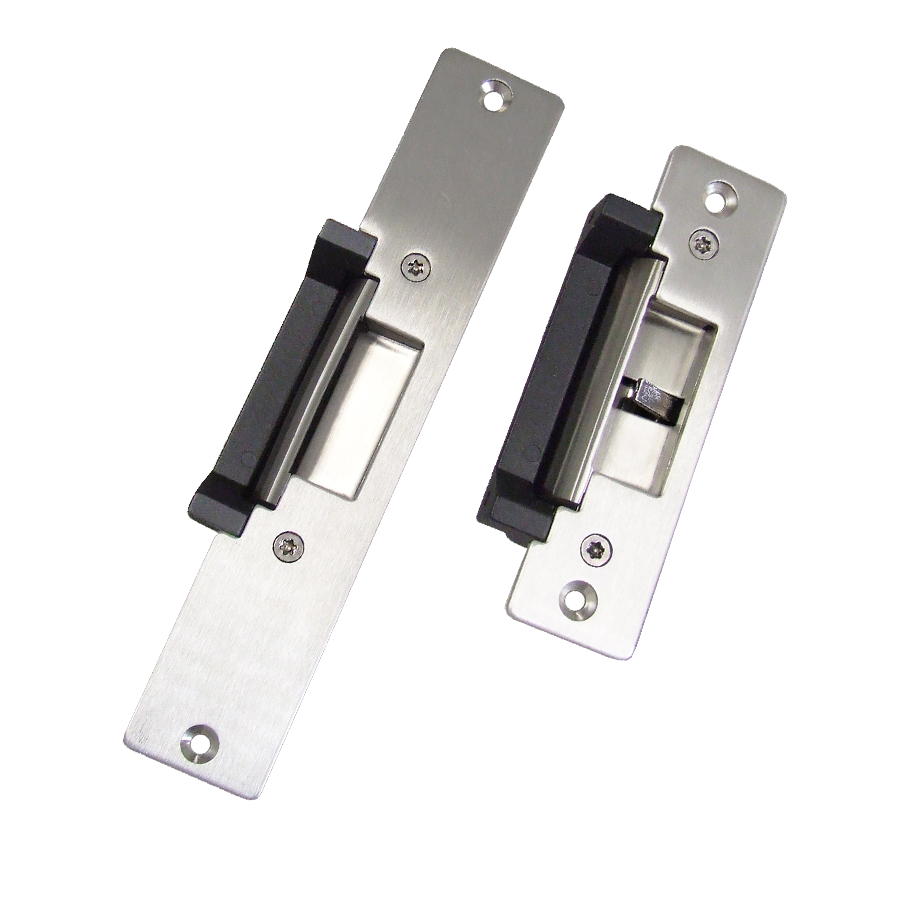

• Universal Strike Plates: A Stainless Steel ANSI style strike plate compatible with most aluminum frame cutouts, is supplied. An 8" tall strike plate is also included for wood and hollow metal door frames. The 3300 and 3300xD electric strikes are designed to accommodate a deep door latch keeper for added security.
• Deep Latch Bolt Pocket: The deep keeper on these strikes will easily accommodate latch bolts up to 1/2" long without modification. The deep pocket allows the 3300 to accept a large variety of bolt type hardware devices to meet most security applications.
• Latch Bolt Sensor Option: The #3300 series strikes can be supplied with an optional latch bolt monitoring switch by specifying the 3300xD. It can be used to indicate secure or unsecure door status. The formC dry contact output can also be used to signal an access control system upon a mechanical latch retraction.

Specifications:

• Physical Size:
• 3300 - Strike ANSI frame prep 4-7/8" high x 1-1/4" wide Faceplate 1- 3/16" deep x 1-3/4" overall width Wood door frame prep 7-15/16" high x 1-7/16" wide Faceplate 1-3/16" deep x 1-13/16" overall width
• 3300XD- Strike same as above with optional SPDT Latch Monitor
• Electrical: 280ma @ 12 VDC, 140ma @ 24 VDC
• D = Latch Monitor switch SPDT
• Finish: 3300 series strikes feature a US32D brushed Stainless Steel latch housing with an 1/8" thick US32D brushed Stainless Steel faceplate. Strikes are suitable for interior or exit door frame applications. Contact factory for special non-standard faceplate finishes
