Dortronics 5211-MP23DA/R-E1 Red Mushroom Push Button, 1-9/16in, DPST Pneumatic Time Delay, Exit Switch

Dortronics Systems, Inc. 5211-MP23DA/R-E1 1-9/16in Diameter Red Mushroom Push Button with DPST Pneumatic Time Delay "Push to Exit" Mounted on Single Gang Plate offers a reliable and highly visible solution for electric door release in various settings, including hospitals, industrial facilities, and office buildings. The large 1-9/16" diameter cap ensures easy operation while meeting accessibility standards. This heavy-duty palm button assembly features dual contact blocks-one normally open and one normally closed-allowing for efficient signaling to access control panels while cutting power to magnetic locks upon activation. The isolated contacts prevent voltage compatibility issues, enhancing overall safety. Additionally, the 5211 model can be customized with illuminated Bi-Color LEDs that indicate the security status of the door, providing real-time feedback in critical situations. The stainless-steel switch plate can also be personalized with standard or custom text, ensuring clear communication of the button's function. With a robust electrical specification, the button supports a maximum continuous current of 10 amps and is designed to handle high inductive loads. The Dortronics 5211-MP23DA/R-E1 combines durability and functionality, making it an essential component for any access control system.

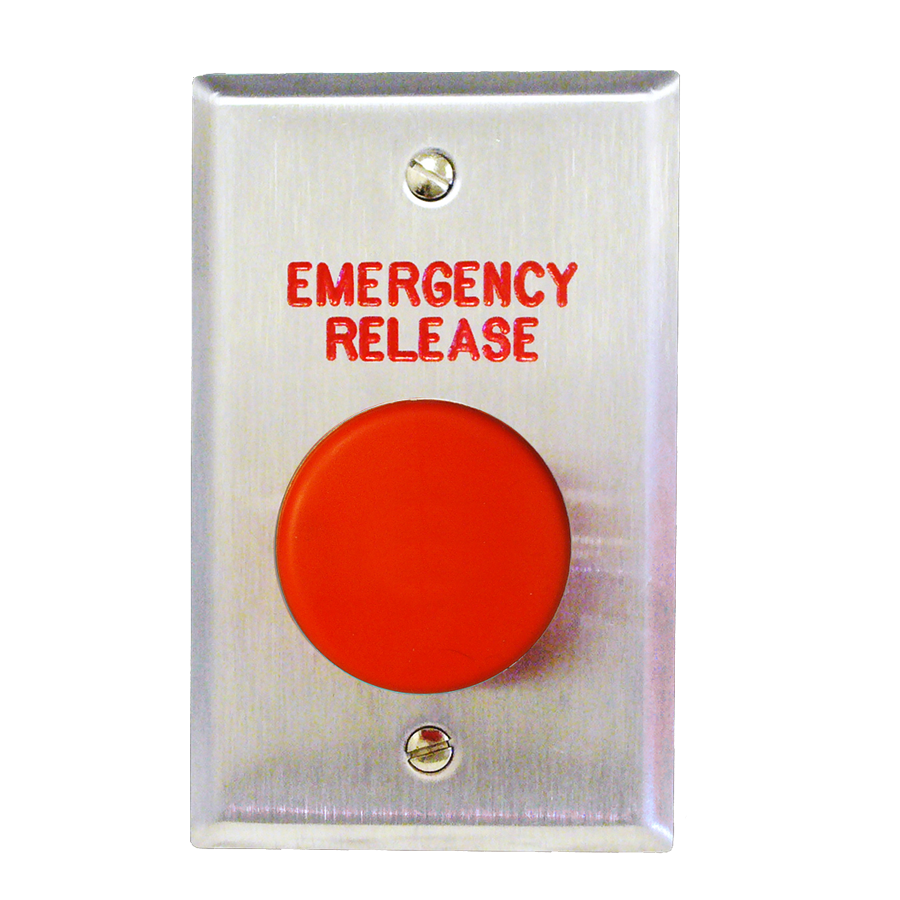

1-9/16in Diameter Red Mushroom Push Button with DPST Pneumatic Time Delay "Push to Exit" Mounted on Single Gang Plate

The 5210 Series of heavy-duty palm button assemblies provide conspicuous, door release for electric door locks. These, easy to operate, Request-To-Exit controls are ideal for use in hospitals, industrial complexes, office buildings and institutions.

Features:

• Large Button Caps: These push button switches are furnished with standard 1-9/16" diameter caps. The 5216 Push Button Switches are supplied with a large 2-3/8" diameter cap to meet code requirements for some localities. The caps can be supplied in colors other than red as may be needed for electrically locked exit doors. In addition, 5210 Push Button Assemblies can be furnished with illuminated button caps and Narrow 1-3/4", Single or Double gang Stainless Steel back plates.
• Safe Redundant Contacts: Dual contact blocks, one normally open and one normally closed set are furnished standard. This allows the magnetic lock power to be cut by the normally closed contacts upon switch activation while simultaneously signaling an access control panel with the normally open contact block. The P23DA Pneumatic Time Delay version operates the same. Since both sets of contacts are electrically isolated from each other, there are no problems with voltage compatibility.
• Status Indicators: All 5210 Series switch assemblies are available with one or more Bi-Color LEDs. These indicators can be wired to give a red, amber or green illumination. When LEDs are utilized with door position switches and magnetic bond sensors, the security condition of the door can be indicated.
• Custom Text: The stainless-steel switch plates can be Screen printed with epoxy paint or engraved with standard or custom wording. Block style lettering is typically 1/4" tall. Text is red to enhance readability.

Model:

• Push Buttons:
• 5211 = 1-9/16" Mushroom Push Button Switch on Single Gang Plate
• N5211 = 1-9/16" Mushroom Push Button Switch on Narrow Switch Plate
• 5216 = 2-3/8" Mushroom Push Button Switch on Single Gang Plate
• D5216 = 2-3/8" Mushroom Push Button Switch on Double Gang Plate
• Electrical Specification:
• Continuous = 10 amps max current AC or DC
• Make = 60 amps Inductive @ 120 VAC Max.
• Break = 6 amps Inductive@ 120 VAC Max.
