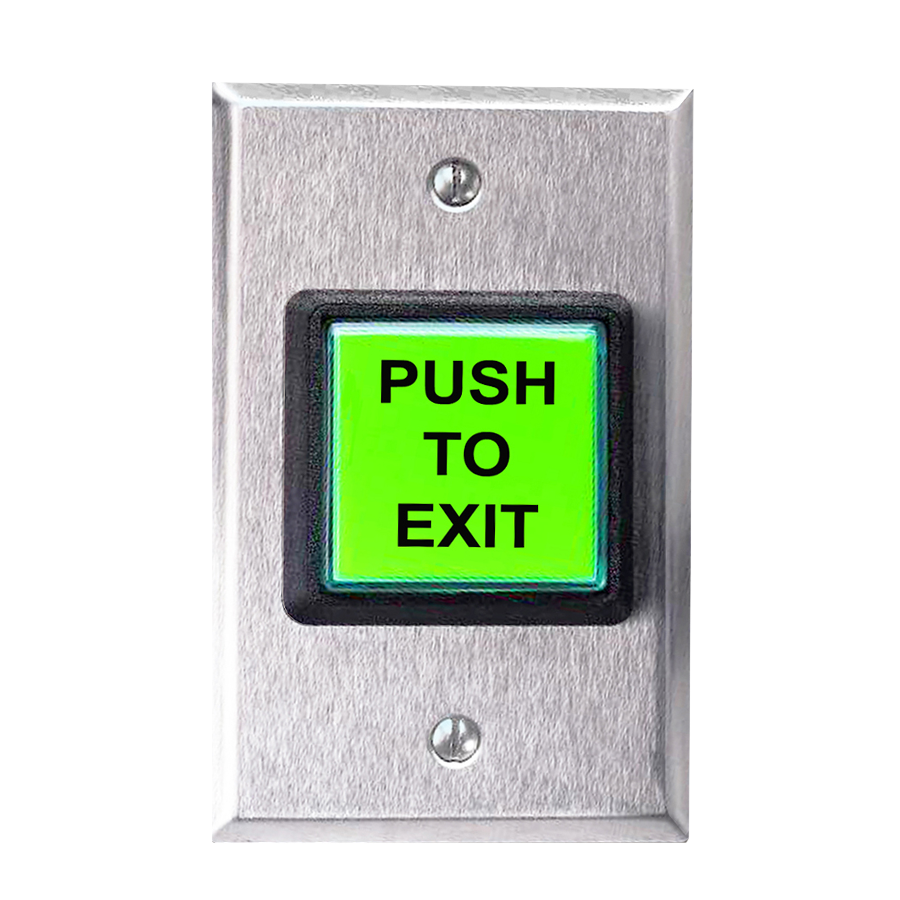

Dortronics 5215-SPB-E1 1-1/2in Square Illuminated Push Button SPDT Switch, "Push to Exit" Green Button

Dortronics Systems, Inc. 5215-SPB-E1 1-1/2in Square Illuminated Push Button offers an effective solution for access control in commercial settings. This momentary SPDT switch is designed with a user-friendly interface, featuring a clearly marked "Push to Exit" text on a vibrant green button, ensuring visibility and ease of use. The push button assembly is mounted with a brushed stainless steel plate, compatible with standard single gang 2" x 4" electrical boxes, and requires just 2-1/4" of depth for installation. The 1-1/2" x 1-1/2" illuminated actuator button is powered by a long-lasting 28 VDC lamp, providing reliable operation. An optional red LED indicator can be installed above the button, offering users a visual cue of the door lock status. Built for durability, the heavy-duty SPDT contacts are rated for 10 amps at 125/250 VAC, with color-coded 7" leads simplifying connection to field wiring. The 5215-SPB-E1 is compliant with NFPA and BOCA codes when paired with an optional FT-Timer, ensuring a fixed 30-second unlock time after activation. Whether for commercial or residential use, this illuminated push button enhances security while maintaining compliance and convenience.

1-1/2in Square Illuminated Push Button, Momentary SPDT Switch, Single Gang Plate, "Push to Exit" Text on Green Button

The 5215-SPB series push button assemblies provide a clearly visible means of actuating electric locking release. These easy to operate, request-to exit controls are ideal for use in any facility with access controlled entry/exit.

Features:

• Standard Single Gang Mounting: These push button switches are supplied with a brushed stainless steel plate for mounting on a standard single gang 2" x 4" electrical box. The switch contact block requires only 2-1/4" depth within the mounting cavity.
• Illuminated Square Actuator Button: The 1-1/2" x 1-1/2" illuminated button can be easily recognized when powered. The lamp is rated at 28 VDC for long life.
• LED Status Indicator: A red LED is available, as an option, to be mounted above the square actuator button. This can be utilized to provide indication of door lock status.
• Heavy Duty Contacts: The SPDT contacts on the momentary action switch are rated for 10 amps at 125/250 VAC. Color coded, 7" leads are easily connected to field wiring.
• Optional Text Graphic: The illuminated actuator button is also available with "Exit" text. The block lettering in black is clearly visible against the green background when the back-light is on or off.
• NFPA / BOCA Code Compliance: An optional FT-Timer is available for use with R-E-X motion detector applications requiring compliance with NFPA and BOCA codes. These units provide a fixed 30 second unlock time whenever the push button actuator is depressed and then released.

Specifications:

• Physical Size:
• Switch Plate - Single Gang 2-3/4" wide x 4-1/2" high x 2-1/4" deep (including contact block)
• Push Button - Illuminated 1-1/2" x 1-1/2" Square Momentary Action
• Optional LED - Standard Red Diffused T-1-3/4 LED with Twin Leads.
• Electrical:
• Contacts - Momentary SPDT action (P15) rated 10 amps @ 125/250 VAC.
• Lamp - Incandescent 28 VDC maximum.
• LED - Red LED - 28 VDC maximum.

Options:

• L = Optional Red LED mounted above Square Push Button.
• E1 = Optional Text "PUSH TO EXIT" Standard Black Letters on Green.
• E3 = Optional Text "EXIT" Standard Black Letters on Green.
• AT = DPDT-Electronic Timer Module 2 - 60 Second Adjustable
• FT = DPDT-Electronic Timer Module 30 Second Fixed Delay
