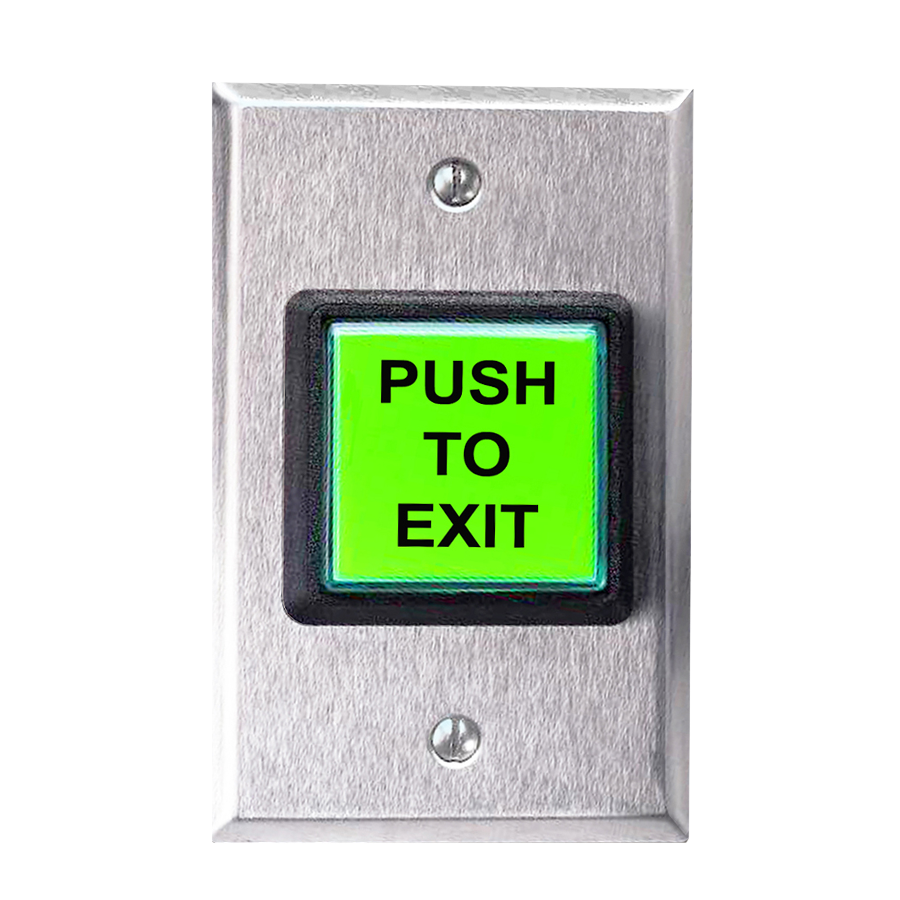

Dortronics 5215-SPB-E1-AT 1-1/2in Square Illuminated Push Button DPDT Timer Switch, "Push to Exit"

Dortronics Systems, Inc. 5215-SPB-E1-AT 1-1/2in Square Illuminated Push Button is an essential addition for any facility with controlled access points. This momentary DPDT switch features a robust design and is equipped with a brushed stainless steel plate, making it suitable for mounting on a standard single gang 2" x 4" electrical box. The illuminated square actuator button, measuring 1-1/2" x 1-1/2", ensures high visibility whenever activated, utilizing a long-lasting 28 VDC lamp. The heavy-duty SPDT contacts are rated for 10 amps at 125/250 VAC, facilitating reliable operation. For added functionality, an optional red LED status indicator can be positioned above the button to signal door lock status. The push button is clearly labeled with "Push to Exit" or "Exit" in bold black lettering against a green background, enhancing usability. For compliance with NFPA and BOCA codes, the unit offers an optional FT-Timer that provides a fixed 30-second unlock duration upon button activation. With dimensions of 2-3/4" wide x 4-1/2" high x 2-1/4" deep, this push button assembly is designed for ease of installation and operation, making it a reliable choice for both building professionals and discerning homeowners.

1-1/2in Square Illuminated Push Button, Momentary DPDT 2-60 Second Timer Switch, Single Gang Plate, "Push to Exit" Text on Green Button

The 5215-SPB series push button assemblies provide a clearly visible means of actuating electric locking release. These easy to operate, request-to exit controls are ideal for use in any facility with access controlled entry/exit.

Features:

• Standard Single Gang Mounting: These push button switches are supplied with a brushed stainless steel plate for mounting on a standard single gang 2" x 4" electrical box. The switch contact block requires only 2-1/4" depth within the mounting cavity.
• Illuminated Square Actuator Button: The 1-1/2" x 1-1/2" illuminated button can be easily recognized when powered. The lamp is rated at 28 VDC for long life.
• LED Status Indicator: A red LED is available, as an option, to be mounted above the square actuator button. This can be utilized to provide indication of door lock status.
• Heavy Duty Contacts: The SPDT contacts on the momentary action switch are rated for 10 amps at 125/250 VAC. Color coded, 7" leads are easily connected to field wiring.
• Optional Text Graphic: The illuminated actuator button is also available with "Exit" text. The block lettering in black is clearly visible against the green background when the back-light is on or off.
• NFPA / BOCA Code Compliance: An optional FT-Timer is available for use with R-E-X motion detector applications requiring compliance with NFPA and BOCA codes. These units provide a fixed 30 second unlock time whenever the push button actuator is depressed and then released.

Specifications:

• Physical Size:
• Switch Plate - Single Gang 2-3/4" wide x 4-1/2" high x 2-1/4" deep (including contact block)
• Push Button - Illuminated 1-1/2" x 1-1/2" Square Momentary Action
• Optional LED - Standard Red Diffused T-1-3/4 LED with Twin Leads.
• Electrical:
• Contacts - Momentary SPDT action (P15) rated 10 amps @ 125/250 VAC.
• Lamp - Incandescent 28 VDC maximum.
• LED - Red LED - 28 VDC maximum.

Options:

• L = Optional Red LED mounted above Square Push Button.
• E1 = Optional Text "PUSH TO EXIT" Standard Black Letters on Green.
• E3 = Optional Text "EXIT" Standard Black Letters on Green.
• AT = DPDT-Electronic Timer Module 2 - 60 Second Adjustable
• FT = DPDT-Electronic Timer Module 30 Second Fixed Delay
