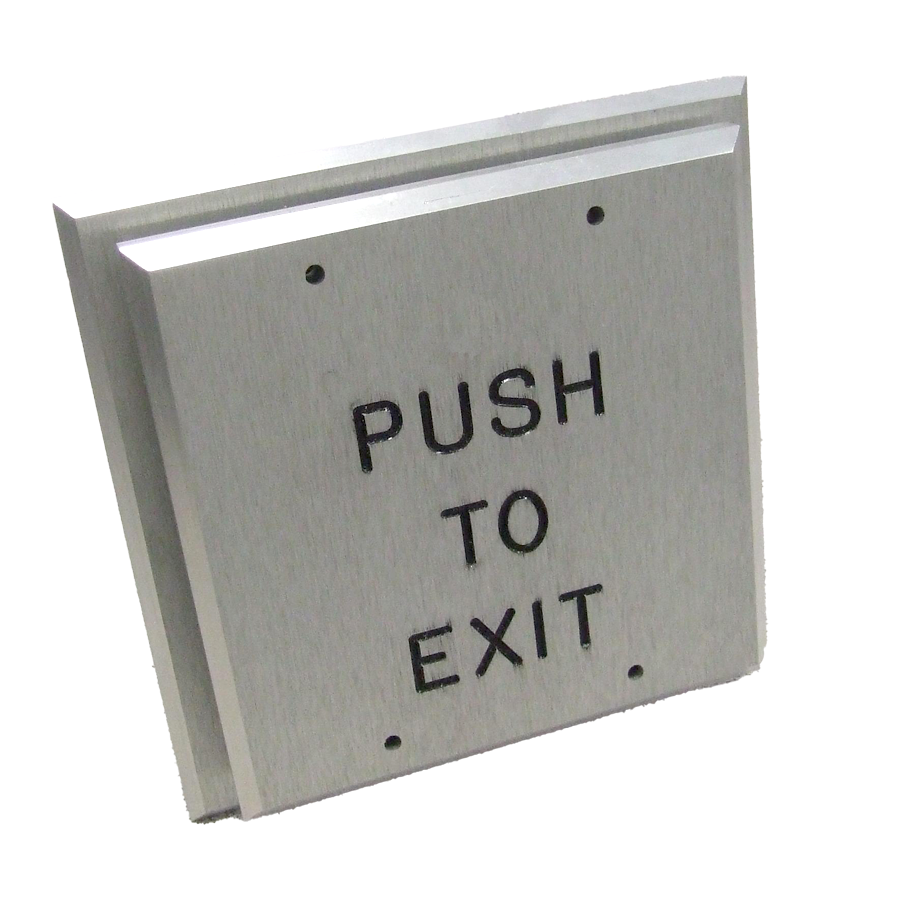

Dortronics D5286-P25-E1 Momentary Switch DPDT with 4in Push Plate, "Push to Exit" Text

Dortronics Systems, Inc. D5286-P25-E1 Momentary Switch DPDT with 4in Push Plate, "Push to Exit" Text is designed for high-traffic environments such as office buildings, hospitals, and banks, where ease of access and a professional appearance are paramount. This switch features a robust 1-1/2" x 3" push plate, seamlessly integrated with a variety of back mounting plates to accommodate different installation requirements. Its smooth beveled edges not only enhance its aesthetics but also ensure a tamper-resistant design. The D5286 series offers multiple push plate options, including the "N" Series for narrow frames and the "W" Series for standard single gang box mounting. Each switch assembly boasts immediate response contacts rated for 6 amps at 125VAC and 4 amps at 24VDC, ensuring reliable operation. For delayed action needs, the switch can handle up to 10 amps resistive at 125VAC. Customization options are available with various engraving choices, including "PUSH TO EXIT" and "PANIC," along with a selection of finishes like Plated Polished Brass and Dark Bronze Anodized. With color-coded stranded wire leads for easy installation, the D5286-P25-E1 is a reliable choice for professionals looking for efficient and stylish access control solutions.

Momentary Switch DPDT with 4in Push Plate, "Push to Exit" Text

Ideal for use in office buildings, institutions, hospitals, nursing homes, banks, etc. where codes require a readily apparent and easy to use door control or electric lock release and an architecturally coordinated, aesthetically pleasing, appearance is required. Standard 5286 exit release switches feature a large, easily operated, 1-1/2" x 3" push plate. The push plate is available in two sizes and three different back mounting plates to meet all installation requirements. Both the push plates and the back mounting plates have smooth beveled edges on all four sides to enhance appearance. These assemblies are joined from the back with concealed screws to resist tampering.

Features:

• "N" Series Push Plates: Typically used for mounting on narrow door frames and aluminum mullions, the "N" style devices consist of the standard 1-1/2" x 3" push plate mated with a narrow 1-3/4" wide back plate for hollow metal or aluminum frame mounting. Furnished with slotted oval head stainless steel screws for direct mounting to frame or partition box within frame.
• Standard Wall Plate Size: The "W" Series push plate consists of a 1-1/2" x 3" push plate with a 3" wide back plate for standard single gang box mounting. Furnished with standard slotted head screws. Pin-in-hex tamper resistant mounting screws are available on special order.
• 2 Gang Push Plate Switches: The "D" Series has a large 4" x 4" push plate with a 4-5/8" wide back plate prepared for mounting to a double gang box. Furnished with pre-assembled socket head mounting screws easily accessible through small holes in the push plate.
• Variety of Contact Forms: Push plates switches are available with alternate action, momentary or time delayed contacts. The adjustable delay action assemblies utilize a miniature pneumatic timer, adjustable from 2 to 60 seconds, with a compression spring under the push plate. All switch assemblies are rated for heavy duty usage and are furnished with color-coded wire leads for easy hook-up.

Electrical Specification:

• Immediate response contacts - 6 amps @ 125VAC, 4 amps @ 24VDC
• Delayed action switches - 10 amps (resistive) @ 125VAC
• All switches are furnished with 8" long color-coded stranded wire leads for ease of identification and hook-up.

Engraving:

• E1 = "PUSH TO EXIT" (black letters)
• E1R = "PUSH TO EXIT" (red letters)
• E2 = "PANIC" (red letters)
• E3 = "EXIT" (red letters)
• E4 = "DOOR RELEASE" (black)
• E5 = "EMERGENCY DOOR RELEASE"
• E6 = Other custom engraving
• HCP = Handicap logo
• HCP2 = Handicap logo with "PUSH TO OPEN"
• HCP3 = Handicap logo with blue finish (white engraving)

Finishes:

• BRE - Baked Red Enamel
• DBA - Dark Bronze Anodized
• US3 - Plated Polished Brass
• US4 - Plated Satin Brass
• US26 - Plated Polished Chrome
• US26D - Plated Satin Chrome
