Dortronics N5286-P23DA-E1 Pneumatic 60 Sec Delay Switch with 1.5in Push Plate "Push to Exit" Instruction

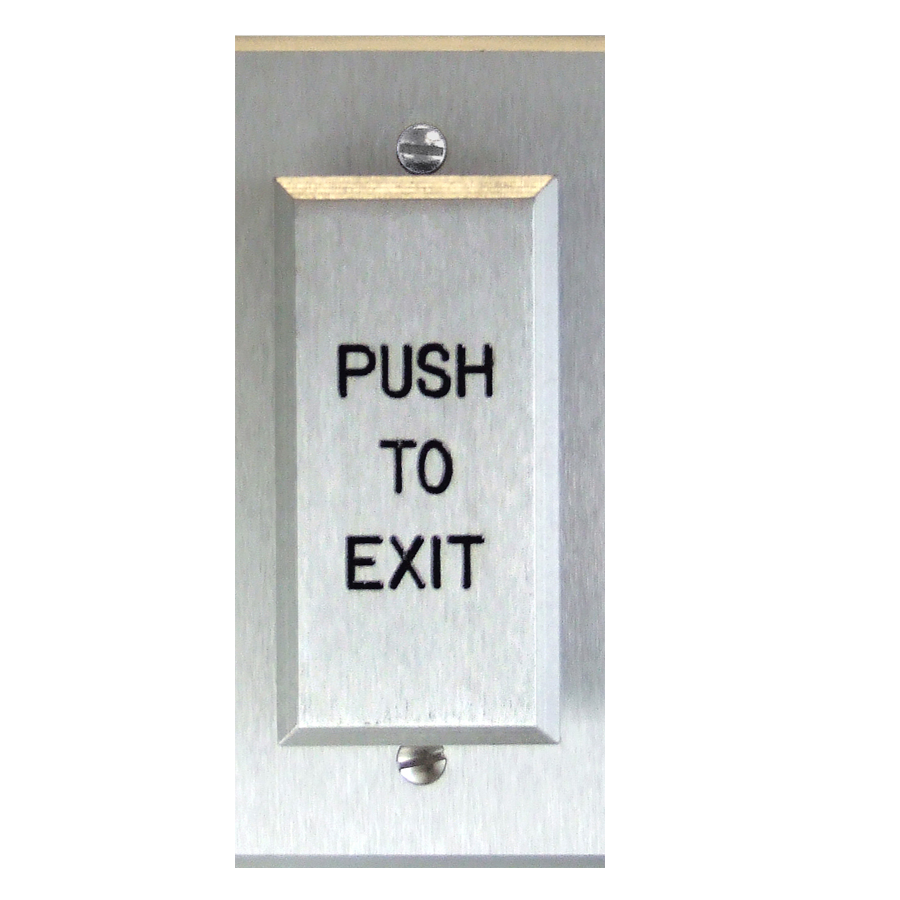

Dortronics Systems, Inc. N5286-P23DA-E1 Pneumatic 2 - 60 Second Delay Switch is designed for environments where safety and accessibility are paramount. This push plate switch features a 1-1/2 inch wide push plate elegantly mounted on a narrow 1-3/4 inch back plate, making it ideal for installation in office buildings, hospitals, banks, and more. With an adjustable delay action of 2 to 60 seconds, it ensures a controlled exit experience, meeting various building codes. The N5286-P23DA-E1 is constructed with smooth beveled edges on the push plate and back mounting plate, enhancing both safety and aesthetics. It is equipped with heavy-duty contacts, rated for immediate response at 6 amps @ 125VAC and 4 amps @ 24VDC, while the delayed action can handle up to 10 amps resistive at 125VAC. The switch assembly comes with 8-inch long, color-coded stranded wire leads for straightforward installation. Available with diverse engraving options such as "PUSH TO EXIT" and custom logos, this switch can be tailored to fit specific needs. Choose from multiple finishes, including baked red enamel and polished brass, ensuring a perfect match for any decor. Enhance your facility's access control with the reliability and elegance of the Dortronics N5286-P23DA-E1.

Pneumatic 2 - 60 Second Delay (Form Z) Switch with 1-1/2in Wide Push Plate on 1-3/4in Narrow Back Plate "Push to Exit"

Ideal for use in office buildings, institutions, hospitals, nursing homes, banks, etc. where codes require a readily apparent and easy to use door control or electric lock release and an architecturally coordinated, aesthetically pleasing, appearance is required. Standard 5286 exit release switches feature a large, easily operated, 1-1/2" x 3" push plate. The push plate is available in two sizes and three different back mounting plates to meet all installation requirements. Both the push plates and the back mounting plates have smooth beveled edges on all four sides to enhance appearance. These assemblies are joined from the back with concealed screws to resist tampering.

Features:

• "N" Series Push Plates: Typically used for mounting on narrow door frames and aluminum mullions, the "N" style devices consist of the standard 1-1/2" x 3" push plate mated with a narrow 1-3/4" wide back plate for hollow metal or aluminum frame mounting. Furnished with slotted oval head stainless steel screws for direct mounting to frame or partition box within frame.
• Standard Wall Plate Size: The "W" Series push plate consists of a 1-1/2" x 3" push plate with a 3" wide back plate for standard single gang box mounting. Furnished with standard slotted head screws. Pin-in-hex tamper resistant mounting screws are available on special order.
• 2 Gang Push Plate Switches: The "D" Series has a large 4" x 4" push plate with a 4-5/8" wide back plate prepared for mounting to a double gang box. Furnished with pre-assembled socket head mounting screws easily accessible through small holes in the push plate.
• Variety of Contact Forms: Push plates switches are available with alternate action, momentary or time delayed contacts. The adjustable delay action assemblies utilize a miniature pneumatic timer, adjustable from 2 to 60 seconds, with a compression spring under the push plate. All switch assemblies are rated for heavy duty usage and are furnished with color-coded wire leads for easy hook-up.

Electrical Specification:

• Immediate response contacts - 6 amps @ 125VAC, 4 amps @ 24VDC
• Delayed action switches - 10 amps (resistive) @ 125VAC
• All switches are furnished with 8" long color-coded stranded wire leads for ease of identification and hook-up.

Engraving:

• E1 = "PUSH TO EXIT" (black letters)
• E1R = "PUSH TO EXIT" (red letters)
• E2 = "PANIC" (red letters)
• E3 = "EXIT" (red letters)
• E4 = "DOOR RELEASE" (black)
• E5 = "EMERGENCY DOOR RELEASE"
• E6 = Other custom engraving
• HCP = Handicap logo
• HCP2 = Handicap logo with "PUSH TO OPEN"
• HCP3 = Handicap logo with blue finish (white engraving)

Finishes:

• BRE - Baked Red Enamel
• DBA - Dark Bronze Anodized
• US3 - Plated Polished Brass
• US4 - Plated Satin Brass
• US26 - Plated Polished Chrome
• US26D - Plated Satin Chrome
