Dortronics W5277-PZL-E1 Touch Sensitive Push Button with Dual-Color Ring 1-30 Sec Delay

Dortronics Systems, Inc. W5277-PZL-E1 Touch Sensitive Push Button with Dual-Color Illuminated Ring is engineered for durability and reliability in high-traffic environments. This extra rugged, weather-resistant switch features a stainless-steel mounting plate and a sealed electronics enclosure, making it ideal for heavy usage applications. One of its standout features is the adjustable timer, which can be set from 1 to 60 seconds, allowing for flexible control of automatic doors, electric strikes, or electromagnetic locks. The integrated toggle mode offers maintained functionality for additional convenience. The bicolor LED illuminated ring serves a dual purpose, providing visual feedback on relay status and indicating door or lock states, further enhancing user experience. Designed for access control applications, the W5277-PZL-E1 connects seamlessly with access control systems, ensuring efficient unlocking of maglocks while signaling exit requests. Rugged construction is complemented by versatile mounting options, fitting standard single gang switch boxes or mortise installations and including a neoprene gasket for optimal weather sealing. With customizable text engraving options and tamper-resistant mounting screws, this push button is both practical and secure. The Dortronics W5277-PZL-E1 is the perfect solution for those seeking a reliable, user-friendly exit control device.

Touch Sensitive Push Button with Dual-Color Illuminated Ring Built-in 1 to 30 Second Time Delay (SPDT) "Push to Exit" On Single Gang Plate

The 5277-PZL Series Piezo Switch is extra rugged and weather resistant so it can withstand the rigors and abuse of everyday use. It is an industrial strength switch designed for heavy usage applications. It is constructed with a stainless-steel mounting plate and sealed electronics enclosure. The stainless-steel Piezo button requires just a light touch to activate.

Features:

• Adjustable Timer: The 5277-PZL Series Piezoelectric Switch has an integrated time delay adjustable from 1 thru 60 seconds. It can be used to control automatic doors, electric strikes or electromagnetic locks. There is also a Toggle (on/off) mode for maintained functionality.
• LED Status Indicator: The 5277-PZL Series features a bicolored LED illuminated ring. The output is jumper selectable to show Relay On or Relay Off status with options for red, green, or no illumination. The LED ring may also be independently controlled to indicate door or lock state.
• Interlock & Mantrap Applications: The highly visible LED ring may be independently controlled and used to indicate door status for access to Mantraps & Interlocks.
• Access Control Applications: When used in conjunction with access control software/hardware, the DC power to the maglock is routed through the set of normally closed contacts to assure unlocking of the maglock when the 5277-PZL Push button is activated. Simultaneously, a separate set of normally open contacts signal the access control system of a request to exit (R-E-X).
• Rugged Construction: The 5277-PZL series is mounted on a 1/8" thick Stainless Steel back plate. Mounting screws are furnished in Phillips head and Pin in Hex tamper resistant (hex key included) screws are all stainless steel for corrosion protection.
• Versatile Mounting: The choice of single gang "W" series or narrow "N" series jamb mount version covers a wide variety of installation applications. The device mounts to a standard single gang switch box, or mortise mounted into a door jamb. A Neoprene gasket is supplied with all switches.
• Text Engraving Options: The 5277-PZL series has standard engraving options to suit the particular application. Red filled lettering stands out for easy reading.

Electrical Specification:

• Input Voltage: 12 to 24 VDC
• Relay Outputs:
• 2 Isolated Outputs
• One Normally Open
• One Normally Closed

Models:

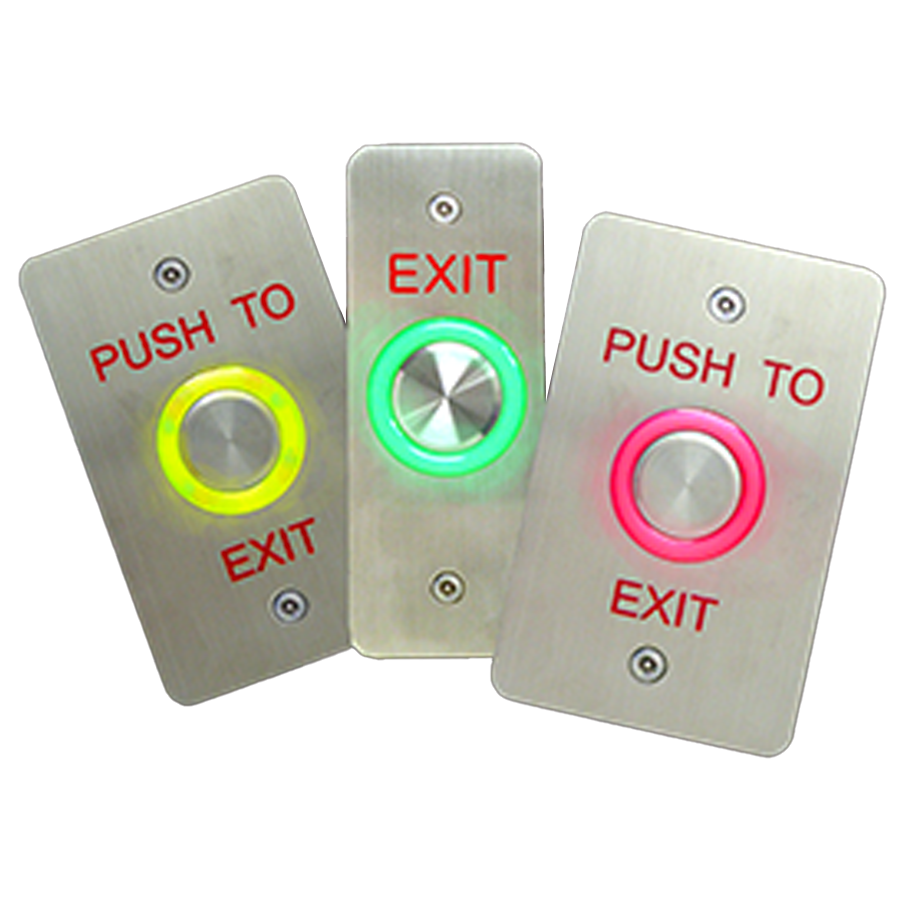

• W5277-PZL: 1 Set NO 1 Set NC contacts with tricolor LED Indicator Ring Single gang Stainless Steel Switch Plate
• W5277-PZLxE1: 1 Set NO 1 Set NC contacts with tricolor LED Indicator Ring Single gang Stainless Steel Plate Engraved "PUSH TO EXIT" (red text)
• W5277-PZLxE3: 1 Set NO 1 Set NC contacts with tricolor LED Indicator ring Single gang Stainless Steel Plate Engraved "EXIT" (red text)
• N5277-PZL: 1 Set No 1 Set NC contacts with tricolor LED Indicator Ring Narrow 1-3/4" Stainless Steel Plate
• N5277-PZLxE3: 1 Set No 1 Set NC contacts with tricolor LED Indicator Ring Narrow 1-3/4" Stainless Steel Plate Engraved "EXIT" (red text)
