Dortronics W5286-P23DA-E1 Round Pneumatic 60 Sec Delay Switch with 1.5in Push Plate - "Push to Exit"

Dortronics Systems, Inc. W5286-P23DA-E1 Round Pneumatic 2 - 60 Second Delay Switch is an essential access control solution designed for high-traffic environments such as office buildings, hospitals, and banks. This switch features a large 1-1/2" x 3" push plate mounted on a 3" wide back plate, ensuring ease of use in compliance with safety codes. The push plate is crafted with smooth beveled edges and is securely attached with concealed screws, enhancing both durability and aesthetics. The W5286 model offers a customizable timing feature, with an adjustable pneumatic timer providing a delay of 2 to 60 seconds, making it perfect for various applications. It supports immediate response contacts rated for 6 amps at 125VAC and 4 amps at 24VDC, while delayed action switches can handle up to 10 amps at 125VAC, ensuring reliable performance. Available in multiple finishes, including baked red enamel and polished chrome, this switch can be tailored to match your specific decor. Engraving options such as "PUSH TO EXIT" or custom messages allow for easy identification. With color-coded wire leads for straightforward installation, the Dortronics W5286-P23DA-E1 is a robust solution for enhancing security and access control in any facility.

Round Pneumatic 2 - 60 Second Delay (Form Z) Switch with 1-1/2in Wide Push Plate on 3in Wide Back Plate "Push to Exit"

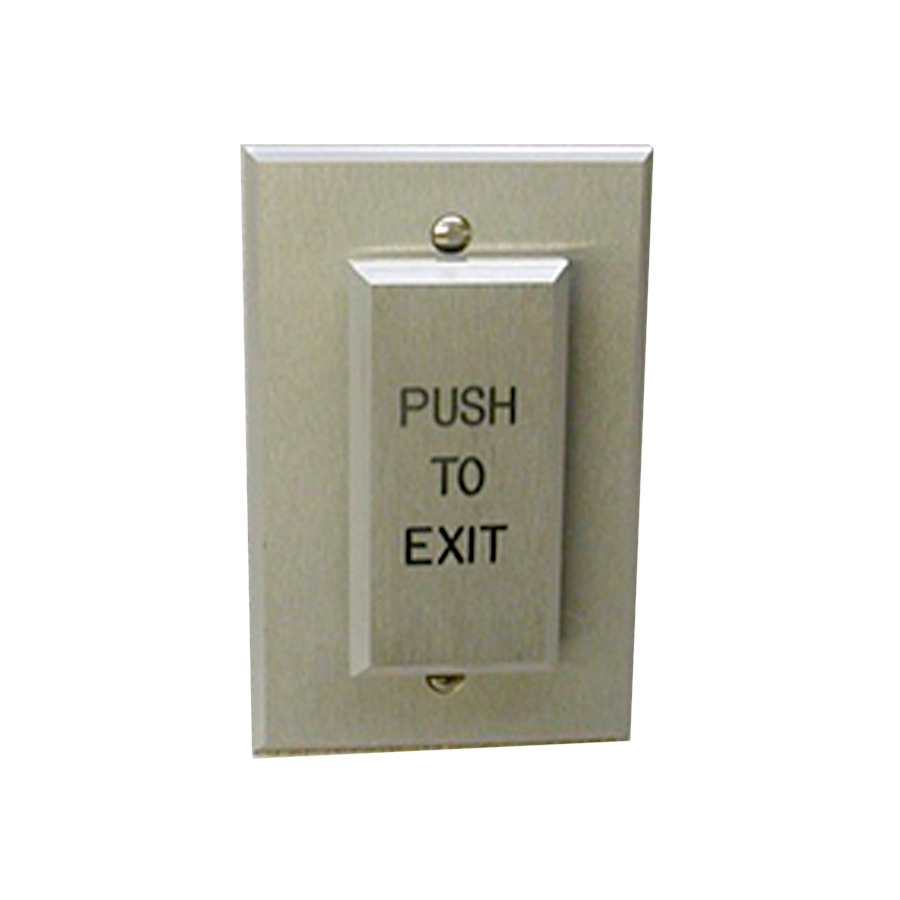

Ideal for use in office buildings, institutions, hospitals, nursing homes, banks, etc. where codes require a readily apparent and easy to use door control or electric lock release and an architecturally coordinated, aesthetically pleasing, appearance is required. Standard 5286 exit release switches feature a large, easily operated, 1-1/2" x 3" push plate. The push plate is available in two sizes and three different back mounting plates to meet all installation requirements. Both the push plates and the back mounting plates have smooth beveled edges on all four sides to enhance appearance. These assemblies are joined from the back with concealed screws to resist tampering.

Features:

• "N" Series Push Plates: Typically used for mounting on narrow door frames and aluminum mullions, the "N" style devices consist of the standard 1-1/2" x 3" push plate mated with a narrow 1-3/4" wide back plate for hollow metal or aluminum frame mounting. Furnished with slotted oval head stainless steel screws for direct mounting to frame or partition box within frame.
• Standard Wall Plate Size: The "W" Series push plate consists of a 1-1/2" x 3" push plate with a 3" wide back plate for standard single gang box mounting. Furnished with standard slotted head screws. Pin-in-hex tamper resistant mounting screws are available on special order.
• 2 Gang Push Plate Switches: The "D" Series has a large 4" x 4" push plate with a 4-5/8" wide back plate prepared for mounting to a double gang box. Furnished with pre-assembled socket head mounting screws easily accessible through small holes in the push plate.
• Variety of Contact Forms: Push plates switches are available with alternate action, momentary or time delayed contacts. The adjustable delay action assemblies utilize a miniature pneumatic timer, adjustable from 2 to 60 seconds, with a compression spring under the push plate. All switch assemblies are rated for heavy duty usage and are furnished with color-coded wire leads for easy hook-up.

Electrical Specification:

• Immediate response contacts - 6 amps @ 125VAC, 4 amps @ 24VDC
• Delayed action switches - 10 amps (resistive) @ 125VAC
• All switches are furnished with 8" long color-coded stranded wire leads for ease of identification and hook-up.

Engraving:

• E1 = "PUSH TO EXIT" (black letters)
• E1R = "PUSH TO EXIT" (red letters)
• E2 = "PANIC" (red letters)
• E3 = "EXIT" (red letters)
• E4 = "DOOR RELEASE" (black)
• E5 = "EMERGENCY DOOR RELEASE"
• E6 = Other custom engraving
• HCP = Handicap logo
• HCP2 = Handicap logo with "PUSH TO OPEN"
• HCP3 = Handicap logo with blue finish (white engraving)

Finishes:

• BRE - Baked Red Enamel
• DBA - Dark Bronze Anodized
• US3 - Plated Polished Brass
• US4 - Plated Satin Brass
• US26 - Plated Polished Chrome
• US26D - Plated Satin Chrome
