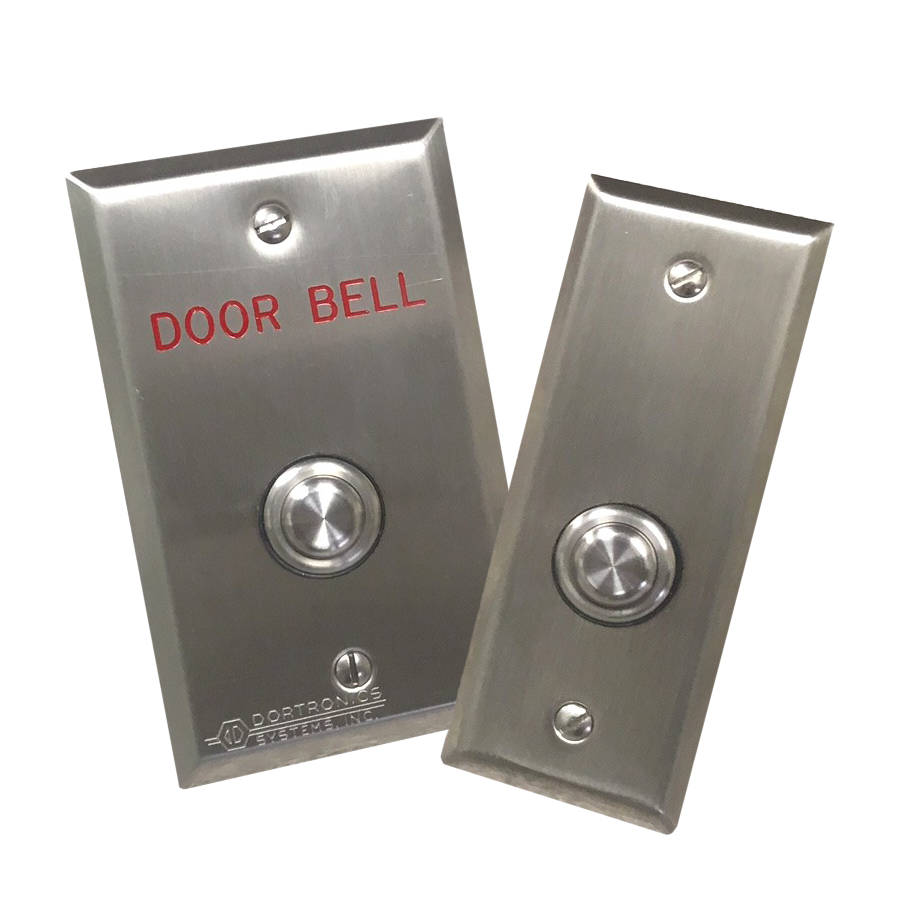

Dortronics WR5276-HD22 5/8in Round Stainless Entry Button, Weather Resistant, Momentary, Single Gang

Dortronics Systems, Inc. WR5276-HD22 5/8in Round Stainless Entry Button or Door Bell is designed for durability and reliability in challenging environments. This heavy-duty, waterproof push button switch is constructed from brushed stainless steel, making it an excellent choice for exterior applications or areas subject to harsh conditions. The included neoprene gasket ensures a secure and weather-resistant mounting. Rated to a sealing degree of IP66, the WR5276-HD22 is protected against water projected from nozzles in any direction, making it suitable for wash-down applications. Its double pole normally open dry contact outputs allow seamless integration with card access systems and automatic door openers. Users can easily wire the button to signal door unlocking and activate door openers. For added versatility, the button comes with options for standard switch plate sizes and custom engraving, ensuring it meets your specific requirements. The WR5276-HD22 is mounted on a single gang stainless steel plate, while a narrow plate option (NWR5276-HD22) is available for tighter spaces. With a load rating of 12 Amps at 250 VAC, this entry button is built to perform under demanding conditions while providing a user-friendly interface for access control.

5/8in Round Stainless Entry Button or Door Bell, Weather Resistant, Water Proof, Single Gang Stainless Steel Plate, Double Pole, Momentary, Normally Open No

Heavy duty, water proof, push button switch constructed of brushed stainless steel is ideal in exterior applications and for use in harsh operating conditions. A neoprene gasket is included for mounting the switch plate.

Features:

• Suitable for Wash down Applications: The WR5276-HD22 series actuating button is rated to a sealing degree of IP66. (Protected against water projected from a nozzle from any direction).
• Access Control Compatible: Suitable for use with card access systems and/or automatic door openers, the Double Pole Normally Open dry contact outputs can be wired to signal a door to unlock and to the door opener to activate.
• Optional Engraving: Along with standard switch plate sizes, and standard engraved legends, custom plates and text can be provided to specification with quick turnaround.
• WR5276-HD22 - Double Pole Normally Open Switch Mounted on a Single Gang Stainless Steel Plate
• NWR5276-HD22 - Double Pole Normally Open Switch Mounted on a Narrow 1-3/4" wide Stainless Steel Plate

Specifications:

• Plate Sizes:
• Standard as supplied is 1 Gang above
• Narrow Plate prefix "N" 1-3/4" x 4-1/2"
• 2 Gang Plate prefix "D" 4-1/2" x 4-1/2"
• Electrical: Load rating – 12 Amps @ 250 VAC
