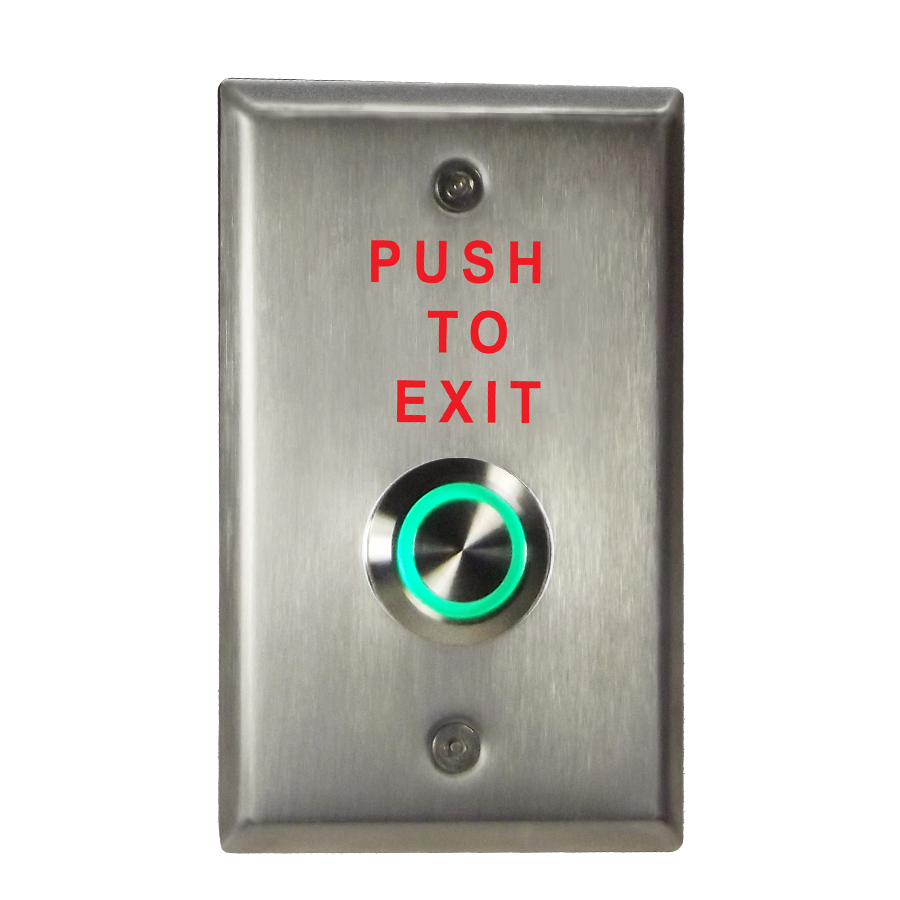

Dortronics WR5276-HD29-LRG-E1 3/4" Round Stainless Entry Button with LED Ring, Weather Resistant, Momentary

Dortronics Systems, Inc. WR5276-HD29-LRG-E1 3/4in Round Stainless Entry Button or Door Bell is a robust solution designed for exterior applications and harsh environments. Crafted from brushed stainless steel, this heavy-duty, waterproof push button switch boasts an IP65 rating, ensuring reliable performance even in washdown applications. The button features an illuminated LED ring, available in red or green, providing clear visual status indicators based on the polarity of the 24 volts DC applied. This versatility allows it to serve dual functions with its Form Z switch contacts, enabling simultaneous control of independent circuits. The momentary action design ensures quick response times, perfect for scenarios requiring immediate access or signaling. With a substantial actuator force of 550 +/- 50gF, this entry button operates efficiently across a wide temperature range, from -130°F to 158°F. The contact rating of 2A at 24VDC and 125VAC guarantees compatibility with various electrical systems. For added personalization, optional engraving is available, with options such as "PUSH TO EXIT" and "EMERGENCY RELEASE." The Dortronics WR5276-HD29-LRG-E1 is an essential component for access control systems, providing reliability and functionality in one elegantly designed package.

3/4in Round Stainless Entry Button or Door Bell, Illuminated LED Ring, Weather Resistant, Water Proof, Single Gang Stainless Steel Plate, Momentary, Double Pole, Normally Open No

Heavy duty, water proof, push button switch constructed of brushed stainless steel is ideal in exterior applications and for use in harsh operating conditions. A neoprene gasket is included for mounting the switch plate.

Features:

• Suitable for Wash down Applications: The WR5276 series button is rated to a sealing degree of IP65. (Protected against water projected from a nozzle from any direction).
• LED Illuminated Indicator: The optional bi-color LED ring can be utilized to provide visual indication of switch status or may be controlled independently by other devices. The Illuminated LED ring color is red or green depending on the polarity of the 24 volts DC applied to the independent LED ring contacts
• Dual Form Z Switch Contacts: Isolated normally open and normally closed switch contacts allow simultaneous control of independent circuits; such as controlling normally closed lock power while signaling the access control system with a normally open contact.
• Alternate or Momentary: The WR5276 series push button switches are available with momentary or alternate-action switch operation.
• Optional Engraving: Along with standard switch plate sizes, and five standard engraved legends, custom plates and text can be made to specification with quick turnaround.
• WR5276-HD28 – Alternate Action Form Z Non-Illuminated
• WR5276-HD28xLRG – Alternate Action Form Z & Illuminated LED Ring
• WR5276-HD29 – Momentary Action Form Z Non-Illuminated
• WR5276-HD29xLRG – Momentary Action Form Z & Illuminated LED Ring

Specifications:

• Physical Data:
• Actuator Material – Brushed Stainless Steel ¾" Dia.
• Actuator Force – 550 +/-50gF
• Operating Temp – -130F to 1580F, -250C to 700C
• IP Rating – IP65 Waterproof Button
• Electrical:
• Contact Rating - 2A @ 24VDC, 2A @ 125VAC
• LED Ring - Red / Green 24VDC, 120 mA Peak Current, 20 mA Operating Current

Optional Engraving:

• E1 – "PUSH TO EXIT"
• E2 – "PANIC"
• E3 – "EMERGENCY RELEASE"
• E4 – "PUSH TO RELEASE"
• E5 – "EMERGENCY DOOR RELEASE"
• E6 – Custom Engraving
