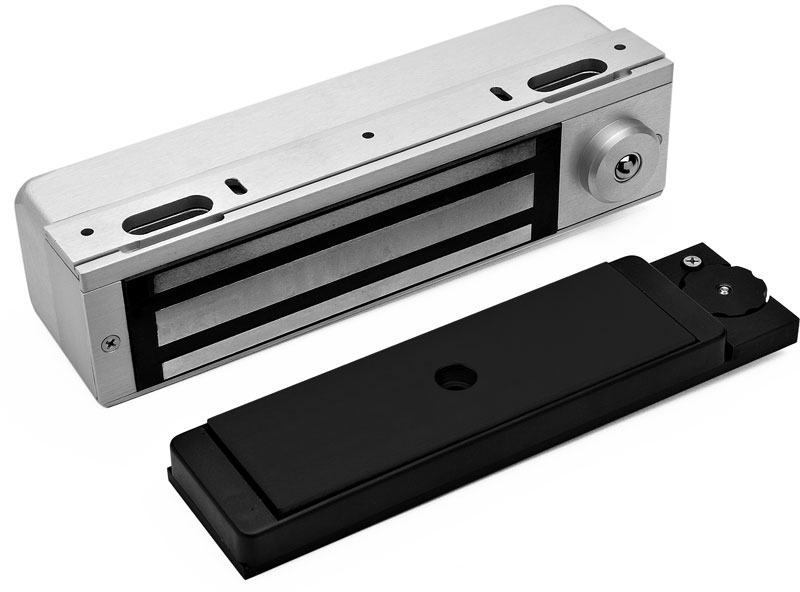

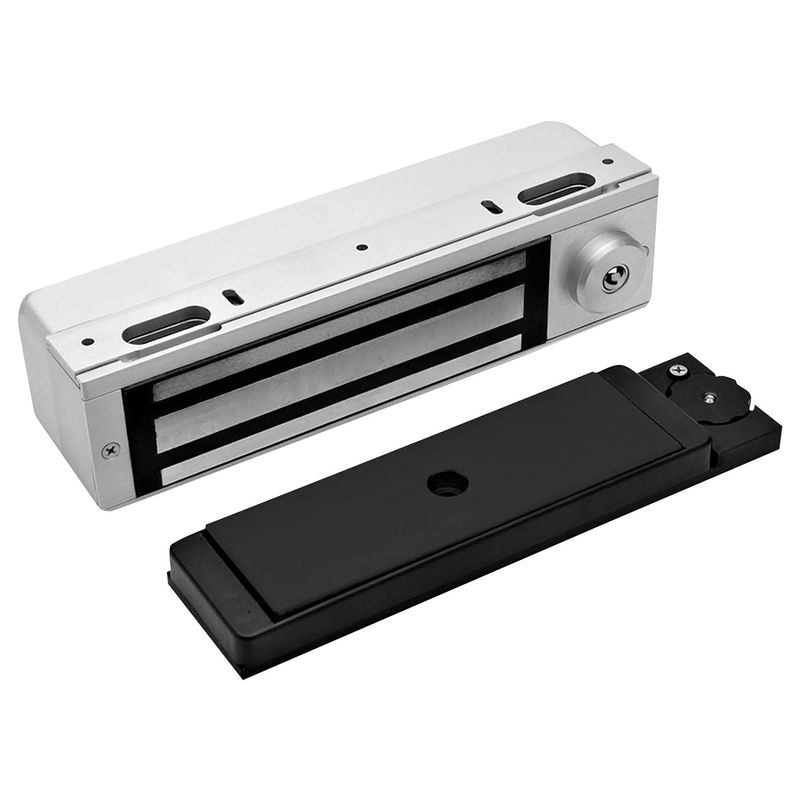

DynaLock 3101C Maglock

Images may not represent actual product and finish

Your Price: $1,406.10

Retail Price:$1,874.80

Your Savings:$468.70(25%)

Single Electromagnetic Lock Delayed Egress Outswing

Part Number

: DYN_3101C

Availability: 33 In Stock

Quantity

Description

DynaLock 3101C Maglock

The 3101C Series is designed to satisfy life safety codes and high security needs at the same time. The next generation 3101C system offers better technology, resistance to electrical surges, and a virtually maintenance free sensing system. In a typical installation, the door is normally closed and latched by the existing mechanical door hardware and magnetically secured by the 3101C Lock. Attempting to exit by applying 15 Lbs. or less pressure to the door will cause the door to become unlatched, and activate the 3101C delay egress timer. The audible and red LED will pulsate for 15 seconds (30 seconds field selectable). After the time delay has elapsed, the lock will release and the audible will sound continuously with a green LED until the door is shut and the lock is reset. Reset and/or bypass are accomplished with a built-in key switch or remote signal. The system unlocks automatically when the 3101B is integrated with the building emergency fire alarm system or power is removed. Fire alarm contacts on the 3101C Lock are field selectable for NO and NC signals

Prevent Unauthorized Exits
Completely Self Contained
Auto-Sensing 12/24 VDC/VAC Input
Unique Sensor Unaffected by Minor Door Misalignment
Lifetime Warranty

Attributes

Alternate Codes: 3101C

Category: Access Control, Maglocks, Single Maglocks

Finish: US28

Holding Force: 1500 lbs

Maglock Type: Single Door

Operating Voltage: 12/24VAC/DC

Options: Selectable Nuisance Delay

Series: DynaLock 3000 Series Maglocks

Size: 3" x 2-3/4" x 11"

Subtype: Maglock

Type: ACCESS CONTROL

Upc: 609010384010

Voltage: 12V DC, 24V DC
