Emtek 5109HLOUS15RH Helios Right-Hand Passage Lever, 2-3/8
Images may not represent actual product and finish

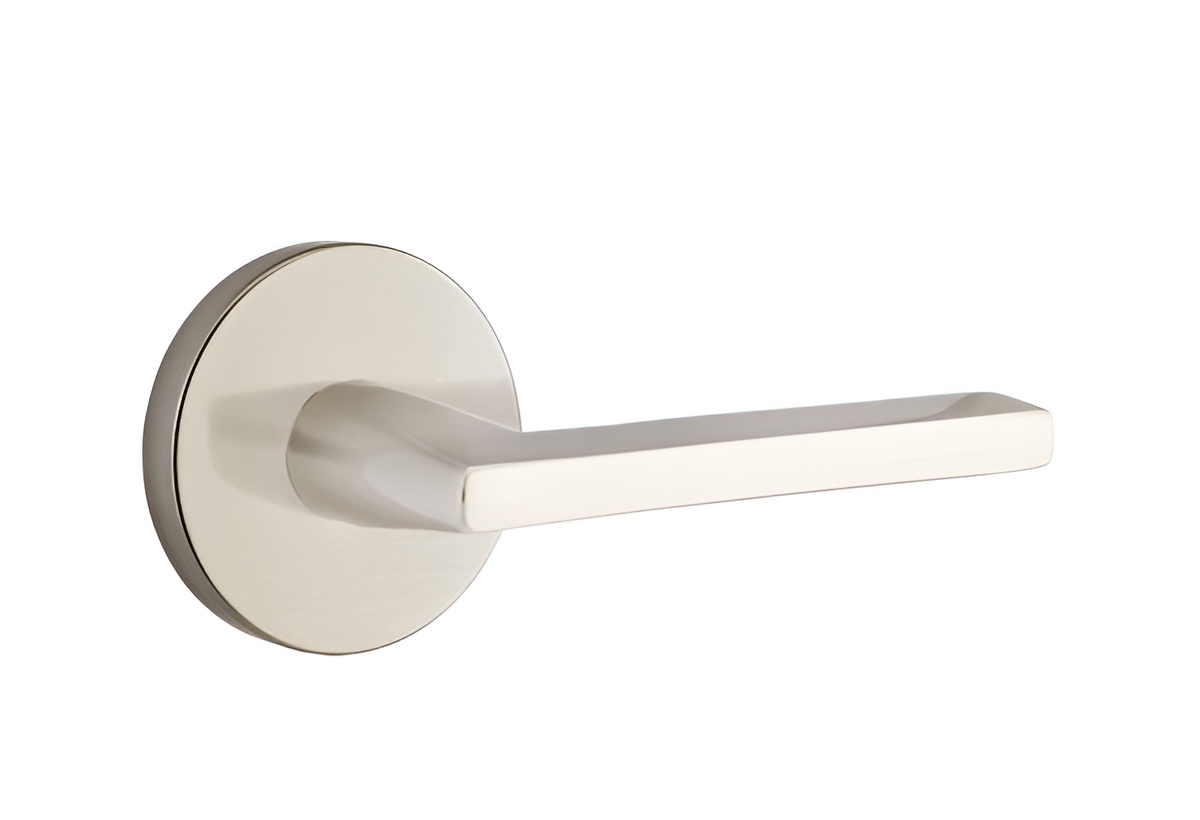

Emtek 5109HLOUS15RH Helios Right-Hand Passage Lever, 2-3/8" Backset, Satin Nickel Finish

Your Price: $156.80
Retail Price:$196.000
Your Savings:$39.20(20%)
Emtek Helios Lever Passage Set in Satin Nickel, designed for 1-1/4" to 2" doors with a stylish Disk Rose.
Part Number : EMT_5109HLOUS15RH
Availability: 21 In Stock
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

Emtek 5109HLOUS15RH Helios Right-Hand Passage Lever, 2-3/8" Backset, Satin Nickel Finish

Emtek 5109HLOUS15RH Helios Lever Right Hand 2-3/8" Backset Passage with Disk Rose for 1-1/4" to 2" Door Satin Nickel Finish offers a perfect blend of style and functionality. Crafted from solid forged brass, this passage set exemplifies durability while adding a sleek touch to your interior spaces. The satin nickel finish not only enhances its aesthetic appeal but also provides a contemporary look that complements a variety of design themes. Designed for standard door preparation, this model features a 2-3/8" backset and a 2-1/8" crossbore size, ensuring easy installation on doors ranging from 1-1/4" to 2" thick. The Helios lever, with a comfortable 5" length and a graceful 2-1/8" projection, is paired with an elegant disk rose, making it a striking focal point in any room. This right-hand passage set is equipped with a square corner full lip strike and includes a limited lifetime mechanical warranty along with a 5-year finish warranty, assuring you of its quality and longevity. Elevate your space with the Emtek Helios Lever, where functionality meets personalized design.

Helios Lever Right Hand 2-3/8" Backset Passage with Disk Rose for 1-1/4" to 2" Door Satin Nickel Finish

Emtek is dedicated to helping bring your personal style to life. Door hardware is more than a way to open, close, and secure a space. To us, it is an integral part of a room's design theme. Each order is custom assembled in our Southern California facility. There is no predetermined combination of knobs, levers, rosettes and finishes; we let you mix and match according to your own taste. Door hardware should make a statement, your statement.


  • Solid Forged Brass
  • Standard Door Prep and Installation
  • 2-3/8" Backset Standard
  • 28 Degree Rotation Latch Available
  • Passage Set

Attributes

Backset: 2-3/8" Backset

Category: Mechanical Residential Locksets

Crossbore Size: 2-1/8" Bore

Design: Helios Lever with Disk Rose

Dimension: 5" Lever, 2-1/8" Projection, 2-1/2" Diameter Rosette

Door Range: 1-1/4" to 2"

Door Thickness: 1-1/4" to 2"

Finish: Satin Nickel

Finish Code: US15

Function: Passage

Handing: Right Hand

Hazardous Material: NO

Latch Faceplate Dimension: 1" x 2-1/4"

Lever Knob Design: Helios Lever

Manufacturer Warranty: Limited Lifetime Mechanical Warranty, 5 Year Finish Warranty

Material: Brass

No Of Inners: 1

Order_ Qty: 1

Rose Escutcheon Design: Disk Rose

Series: Passage and Privacy Lockset Collection

Strike: Square Corner Full Lip Strike

Strike Dimension: 2-1/4" x 1-5/8" x 1-1/8" Lip

Subcategory: Residential Door Levers

Subtype: Door Levers

Type: Residential Locksets
