Essex SKE-26S Gang 500 User Stand Alone 630/32D Stainless Steel

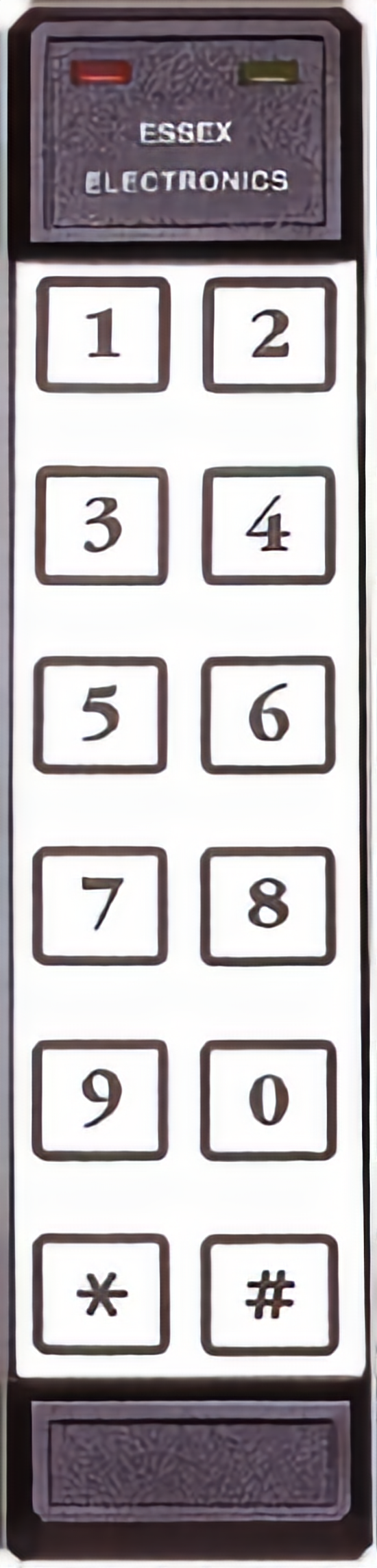

Essex Electronics Inc SKE-26S Gang 500 User Stand Alone 630/32D Stainless Steel is a robust access control keypad designed for high-performance security applications. Built with heavy-duty stainless steel, this self-contained unit excels in various environments, enduring heat, rain, snow, and ice conditions with ease. Featuring proprietary Piezoelectric Billion Cycle Switch Technology™, it guarantees exceptional durability and reliability. This keypad supports up to 502 codes, including 1 master code, 500 user codes, and 1 temporary code, offering flexible and secure access management. The SKE-26S is equipped with three programmable outputs, ensuring adaptability for various applications. It operates on selectable power requirements (5VDC or 12 to 24VDC), making installation straightforward. Additional features include manual or timed latching, anti-tailgating, and a tamper alarm, providing enhanced security throughout its use. With a keypad life exceeding 1 billion cycles and a wide operating temperature range of -40°C to +70°C, the SKE-26S is engineered for longevity and reliability. Ideal for elevator applications and more, this keypad's laser-marked graphics and keyless throwover functionality make it user-friendly and efficient. Backed by a 2-year limited warranty, the Essex SKE-26S is the smart choice for reliable access control.

Gang 500 User Stand Alone 630/32D Stainless Steel

The SKE-34 is a heavy duty, self contained Access Control Keypad with features suitable for landing and single stop elevator applications. With a 2A relay on board, simply add power (5VDC or 12 to 24VDC) and the SKE-34 is ready to provide dependable access control. Rugged Stainless Steel construction and proprietary Piezoelectric Billion Cycle Switch Technology™ ensures superior performance in any environment (heat, rain, snow, ice -up to 3/8"). Easily programmable through the Keypad, the SKE-34 features 502 Codes (1 Master, 500 User and 1 Temporary) and 3 Programmable Outputs (1 SPDT Relay rated at 2A at 24V max and 2 Open Collector 1/4A max to ground). Two 1/4A grounding outputs are available which can control an auxiliary device. The SKE-34 used for elevator applications is backed by a 2 year limited warranty.

Features:

• Self Contained Access Control
• 3 Programmable Outputs
• Up to 500 User Codes
• Easy to install and operate
• Laser Marked Keypad Graphics
• Lower Cost Self Contained Design
• Keypad Programmable
• Keyless Throwover

Specifications:

• 502 Codes - 1 Master Code, 500 User Codes, 1 Temporary Code
• Variable Length Codes - 3 to 8 Digits
• 1 SPDT Relay rated at 2A at 24V max
• Two 1/4 A Grounding Outputs (Open Collector)
• Easily Programmable from Keypad
• Programmable Door Open Time - 1 to 99 seconds
• Manual or Timed Latching
• Time Zone/Restricted Access Input
• Anti-tailgating
• Tamper Alarm
• Remote By-Pass (REX - Request to Exit) Input
• Power Requirements: Field Selectable 5VDC or 12 to 24VDC
• Outputs: 1 SPDT Relay rated at 2 amps at 24V max.
• Two Open Collector 1/4A Grounding Outputs
• Keypad Switch Life: > 1 Billion Cycles
• Keypad Operating Environment: 100% Relative Humidity
• Keypad Operating Temperature:-40°C to +70°C(-40°F to +160°F)
• Keypad Dimensions: 5-1/8" H x 3-3/8" W x 7/16" D (13 x 8.6 x 1.1 cm)
