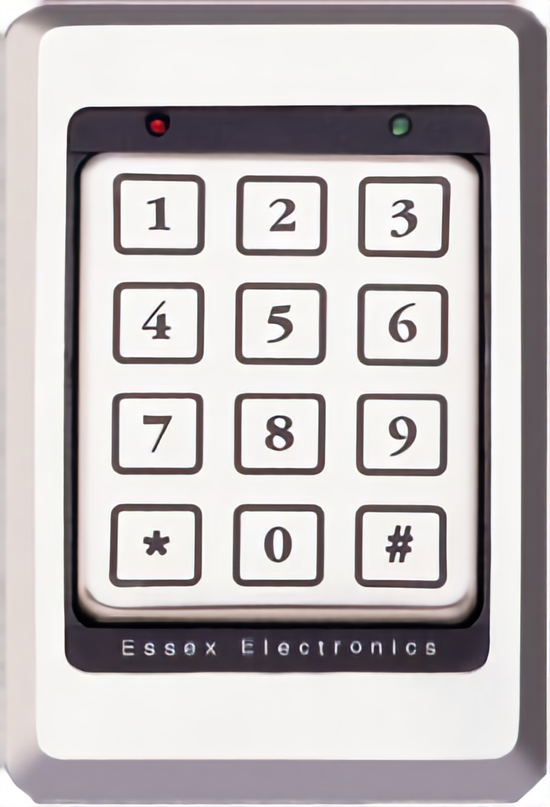

Essex SKE-34S Gang Style 500 User Keypad 630/32D Stainless Steel

Essex Electronics Inc SKE-34S Gang Style 500 User Keypad 630/32D Stainless Steel is engineered for robust access control in both elevator and single-stop applications. This heavy-duty, self-contained keypad features a durable stainless steel construction that withstands extreme conditions, including heat, rain, and snow. With proprietary Piezoelectric Billion Cycle Switch Technology™, you can trust this keypad for superior performance and longevity. The SKE-34S offers an impressive capacity of 502 codes, including 1 master code, 500 user codes, and 1 temporary code, making it ideal for diverse user needs. Installation and programming are straightforward, with the keypad allowing for easy adjustments. The device includes three programmable outputs, including a 2A rated SPDT relay and two open collector grounding outputs, ensuring flexibility in controlling auxiliary devices. Additional features such as variable length codes (ranging from 3 to 8 digits), programmable door open time, anti-tailgating functionality, and a tamper alarm enhance security. The keypad operates in a temperature range of -40°C to +70°C and can handle 100% relative humidity, making it suitable for various environments. Backed by a 2-year limited warranty, the Essex SKE-34S is an excellent choice for reliable access control.

Gang Style 500 User Keypad 630/32D Stainless Steel

The SKE-34 is a heavy duty, self contained Access Control Keypad with features suitable for landing and single stop elevator applications. With a 2A relay on board, simply add power (5VDC or 12 to 24VDC) and the SKE-34 is ready to provide dependable access control. Rugged Stainless Steel construction and proprietary Piezoelectric Billion Cycle Switch Technology™ ensures superior performance in any environment (heat, rain, snow, ice -up to 3/8"). Easily programmable through the Keypad, the SKE-34 features 502 Codes (1 Master, 500 User and 1 Temporary) and 3 Programmable Outputs (1 SPDT Relay rated at 2A at 24V max and 2 Open Collector 1/4A max to ground). Two 1/4A grounding outputs are available which can control an auxiliary device. The SKE-34 used for elevator applications is backed by a 2 year limited warranty.

Features:

• Self Contained Access Control
• 3 Programmable Outputs
• Up to 500 User Codes
• Easy to install and operate
• Laser Marked Keypad Graphics
• Lower Cost Self Contained Design
• Keypad Programmable
• Keyless Throwover

Specifications:

• 502 Codes - 1 Master Code, 500 User Codes, 1 Temporary Code
• Variable Length Codes - 3 to 8 Digits
• 1 SPDT Relay rated at 2A at 24V max
• Two 1/4 A Grounding Outputs (Open Collector)
• Easily Programmable from Keypad
• Programmable Door Open Time - 1 to 99 seconds
• Manual or Timed Latching
• Time Zone/Restricted Access Input
• Anti-tailgating
• Tamper Alarm
• Remote By-Pass (REX - Request to Exit) Input
• Power Requirements: Field Selectable 5VDC or 12 to 24VDC
• Outputs: 1 SPDT Relay rated at 2 amps at 24V max.
• Two Open Collector 1/4A Grounding Outputs
• Keypad Switch Life: > 1 Billion Cycles
• Keypad Operating Environment: 100% Relative Humidity
• Keypad Operating Temperature:-40°C to +70°C(-40°F to +160°F)
• Keypad Dimensions: 5-1/8" H x 3-3/8" W x 7/16" D (13 x 8.6 x 1.1 cm)
