EtherWAN EASYLINK-PRO-US Wireless Bridge Kit - 2 x 867 Mbps Units, Power Supplies PoE Injectors

EtherWAN Systems EASYLINK-PRO-US Wireless Bridge Kit offers a robust solution for establishing wireless connections between remote locations, achieving speeds of up to 867 Mbps over distances of up to 2 miles. This pre-configured point-to-point (PtP) bridge kit is designed for ease of installation, requiring no technical expertise-simply mount the units, power them on, and align them using the built-in alignment LEDs. Included in the kit are two paired bridge units, 2 x 24VDC, 1.5A power supplies, 2 x passive PoE injectors, 2 x active to passive PoE converters, and 2 mounting kits. The rugged, fanless design is encapsulated in an IP67-rated enclosure, ensuring protection against rain and harsh environmental conditions. With an impressive operating temperature range of -40° to 167°F and wind survivability of 200 km/h, this equipment is built to withstand diverse weather conditions. Security is paramount, featuring an encrypted and authenticated wireless connection (WPA2) with a unique hidden SSID and randomly-generated passphrase. Additionally, the EasyConfig application allows for easy management and frequency fine-tuning, although it's not required for basic operation. Whether you need reliable connectivity for a construction site or remote monitoring, the EtherWAN EASYLINK-PRO-US is your go-to solution for seamless and secure wireless communication.

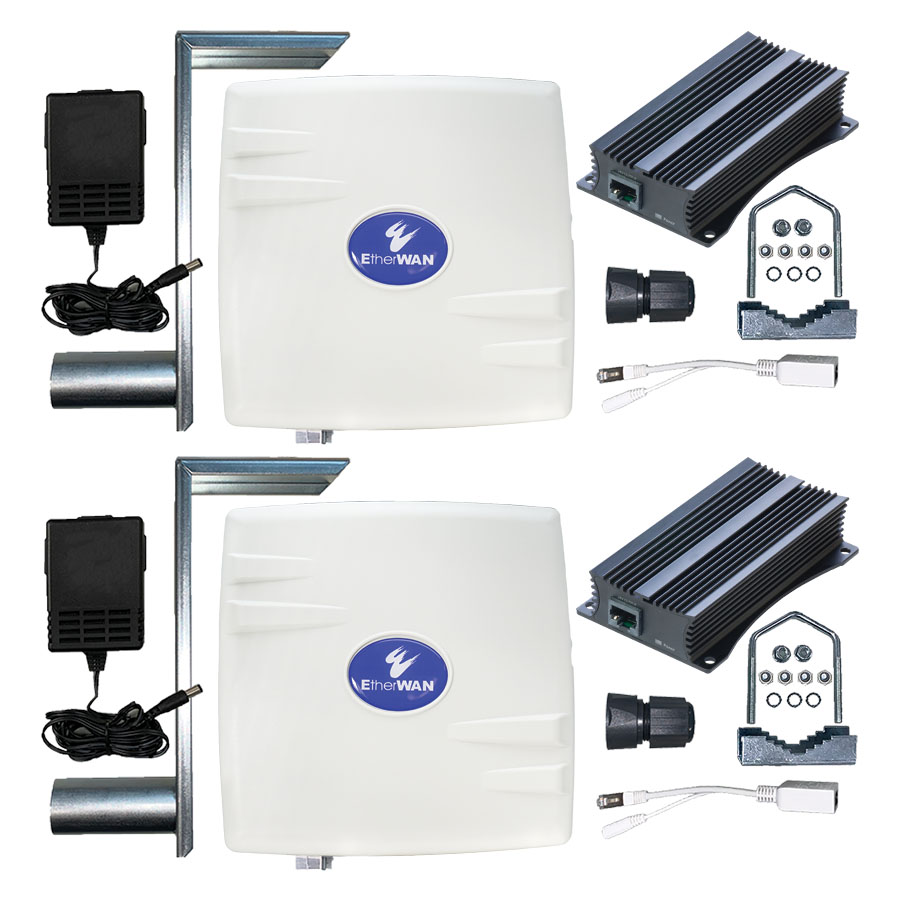

Wireless Bridge Kit - Two 867 Mbps Paired Wireless Bridge Units, 2 x 24VDC, 1.5A Power Supplies, 2 x Passive PoE Injectors, 2 x Active to Passive PoE Converters, and 2 x Mounting Kits.

EtherWAN’s EasyLink PRO is a 867Mbps, pre-configured point-to-point (PtP) Bridge kit which allows for connecting remote locations wirelessly up to 2 miles away. EasyLink’s simple setup allows you to connect locations by mounting the hardware, powering them on, and aligning the units using the built-in alignment LEDs. The simple-touse EasyConfig Application shows wireless link statistics and allows frequency fine-tuning to achieve the maximum connection speed. Each kit contains two paired units that connect automatically using a highly secure, unique, hidden SSID and randomly-generated passphrase to keep your valuable equipment secure right out of the box. The EasyConfig Software is not required for use, simply provide power, align your units, and you're connected!

Features:

• Mount units to a pole or wall using included mount kit
• Signal strength LED’s for easy alignment
• Just power and align using supplied PoE injectors and power supplies
• No technical expertise needed
• Simple management GUI to view status and fine tune frequency settings
• Encrypted & Authenticated Wireless Connection (WPA2)
• Every kit has unique SSID and security settings
• Management Frame Protection (MFP) Enabled
• Fanless and ruggedized outdoor IP67 enclosure (Rainproof)
• Wide operating temperature range (-40° to 167°F)
• Connections up to 2 miles away
• 2 x units preconfigured to connect with optimal performance up to 867 Mbps
• Includes all Mounting Hardware
• Includes 2 x power supplies and 2 x Passive PoE injectors
• Includes 2 x PoEPowerEZ Active to Passive PoE Converters

Specifications:

• Environmental:
• Operating Temp: -40 to 75°C (-40 to 167°F)
• Storage Temp: -45 to 85°C (-49 to 185°F)
• Relative Humidity: 5% to 95% (non-condensing)
• Wind Survivability: 200km/h
• Frequency Range 5GHz: 5150-5250MHz and 5725-5850MHz
• Max data rate 867 Mbit/s
• Number of chains: 2
• Standards 802.11a/n/ac
• WPA2 Passphrase
• 256-bit AES-CCM Encryption
• Physical:
• Casing Material: UV Protected Polystyrene case
• Dimensions: 185 x 185 x 63.5mm (W x D x H) 7.28" x 7.28" x 2.5"
• Weight (shipping): 5.3lbs (2.4kg)
• Installation Type: Pole/Wall

Ordering Information:

• EasyLink-PRO-US : High Speed Wireless Bridge Kit - Two paired Wireless Bridge Units, 2 x 24VDC, 1.5A Power Supplies, 2 x Passive PoE Injectors, 2 x Active to Passive PoE Converters, and 2 x Mounting Kits.
• EasyLink-300-US-MP-04: 4 paired Wireless Bridge Clients and 1 Wireless Bridge Base unit, 5 x 24VDC, 1.5A Power Supplies, 5 x Passive PoE Injectors and 5 x Mounting kits.
• JPole18: 18" Wall Mount J-Pole
• EasyLink-PSU-INJ: Replacement Power Supply and Gigabit Passive PoE Injector for EasyLink Wireless Bridge Series
• Cable 3: 3' Shielded Twisted Pair CAT 6 Cable with UV Resistance Coating
• Cable 25: 25' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
• Cable 50: 50' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
• Cable 150: 150' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
• Cable 300: 300' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
• EPOW-24-60-A: Hardened Power Supply rated for use in temperatures -40°F to 167°F
• PoEPowerEZ: PoE Switch to EasyLink Adapter Hardened -40°F to 165°F (Eliminates the need for a power supply)

Resources

• Data Sheet
