EtherWAN EASYPOE8P-PMT 8-Port PoE Switch + 2-Port SFP + Surge Suppressor with Pole Mount Kit

EtherWAN Systems EASYPOE8P-PMT is a robust and versatile networking solution designed for both indoor and outdoor applications. This 8-port 10/100/1000BASE-T PoE switch comes with two additional 1000BASE SFP ports and includes a surge suppressor, all housed within a secure NEMA 4X rated cabinet. With a maximum output of 30W per port, this device supports a variety of applications, particularly surveillance systems. Built to endure harsh environments, the EASYPOE8P-PMT operates in temperatures ranging from -40 to 75°C (-40 to 167°F) and features a weather-resistant, anti-corrosion, and vandal-resistant design. This fanless unit not only ensures silent operation but also promotes longevity with an MTBF of 450,000 hours at 50°C. Installation is simplified through integrated components and preinstalled bulkheads for cable connections, along with flexible wall and pole mounting options. The device weighs 8.9 lbs and has dimensions of 11.75" x 5" x 13.81" (W x D x H), making it compact yet powerful for various networking demands. EtherWAN Systems EASYPOE8P-PMT is the ideal choice for professionals seeking reliable and efficient power over Ethernet solutions.

8-Port 10/100/1000BASE-T PoE + 2-Port 1000BASE SFP + Surge Suppressor w/ Pole Mount Kit

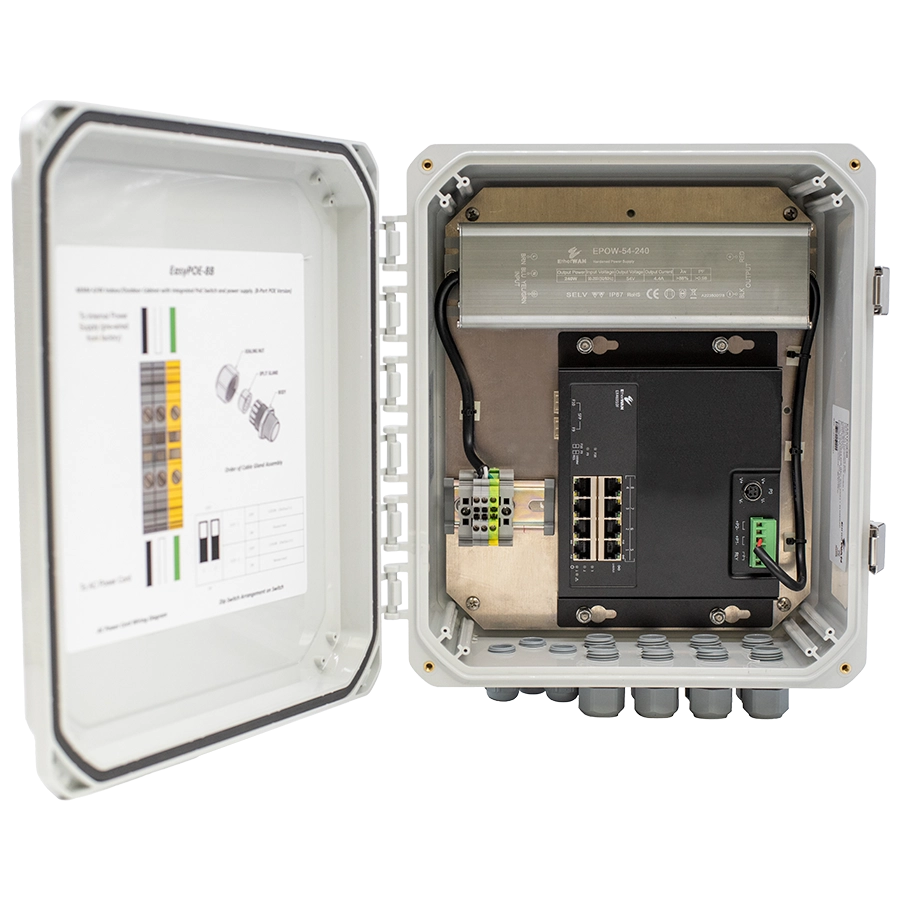

EasyPoE Lite series is an integrated solution that combines a PoE switch, power supply, and a surge suppressor, all in a single, secure, NEMA 4X rated cabinet enclosure. Equipped with 4 or 8 gigabit PoE ports that provide a full 30W max output per port (120W for 4-port and 240W for 8-port), the EasyPoE Lite series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance and other networking applications.

Features:

• NEMA 4X Rated Indoor/Outdoor Enclosure for Harsh Environments:
• Wide operating temperature -40 to 75°C (-40 to 167°F)
• Fanless, integrated design
• Weather-resistant, anti-corrosion, and vandal-resistant design
• Time/Cost Saving Features:
• Integrated components ready out of the box
• Wall and pole mounting options
• Preinstalled bulkheads for cable connections
• Replaceable Hardened Components:
• PoE switch with 4 or 8-port options, at full 30W per port
• Outdoor-rated, IP67 power supply
• Optional surge suppressor

Software Features:

• Interface:
• Ethernet Port: 10/100/1000BASE-T: 5 or 8 ports 1000BASE SFP: 2 ports (only for 8-port)
• LED Indicators: Per Unit: Power 1, Power 2, Power 3, Relay. Per Port: Link/Activity, PoE
• Alarm Contact: 1 x Relay Output, 1A @ 24VDC
• Environmental:
• Operating Temp: -40 to 75°C (-40 to 167°F)
• Storage Temp: -40 to 85°C (-40 to 185°F)
• Relative Humidity: 10% to 95% (non-condensing)
• MTBF: 450,000 hours at 50°C
• Power:
• Input: 100-277VAC
• PoE Power Budget: 120W (4-port), 240W (8-port) @ 75°C
• Physical:
• Casing Material: Polycarbonate (PC)
• IP Rating: IP67
• NEMA Rating: NEMA 4/4X
• Impact Protection: IK10
• Dimensions: 11.75" x 5" x 13.81" (W x D x H)
• Weight: 8.9lbs
• Installation: Wall or Pole Mounting
• What's Included:
• Device: EasyPoE Lite
• Installation: Wall Mounting Adapter
• Documentation: Quick Install Guide

Ordering Information:

• EASYPOE4B: 4-Port 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45
• EASYPOE4P: 4-Port 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45 + Surge Suppressor
• EASYPOE8B: 8-Port 10/100/1000BASE-T PoE + 2-Port 1000BASE SFP
• EASYPOE8P: 8-Port 10/100/1000BASE-T PoE + 2-Port 1000BASE SFP + Surge Suppressor
• EASYPOE4B-PMT: 4-Port 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45 w/ Pole Mount Kit
• EASYPOE4P-PMT: 4-Port 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45 + Surge Suppressor w/ Pole Mount Kit
• EASYPOE8B-PMT: 8-Port 10/100/1000BASE-T PoE + 2-Port 1000BASE SFP w/ Pole Mount Kit
• EASYPOE8P-PMT: 8-Port 10/100/1000BASE-T PoE + 2-Port 1000BASE SFP + Surge Suppressor w/ Pole Mount Kit
• EASYPOEPMT: Pole Mounting Kit for EasyPoE Lite Series
