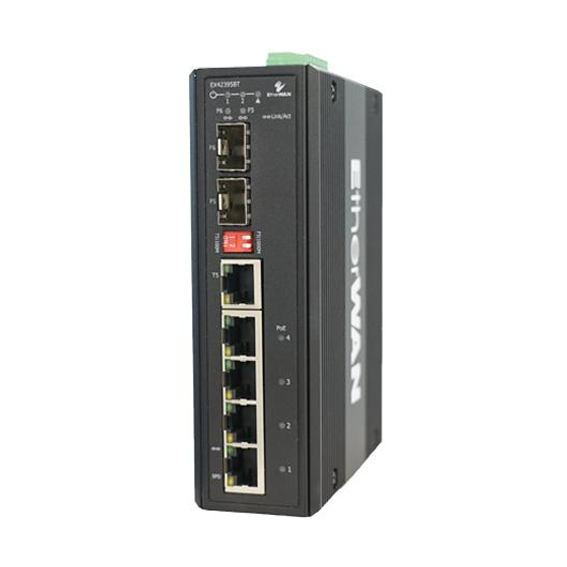

EtherWAN EX42395BT Hardened 4-Port Gigabit PoE Switch with 2-Port SFP/RJ45 Combo

EtherWAN Systems EX42395BT is a compact hardened unmanaged DIN-rail mounted PoE switch designed to meet the demands of various network applications. This versatile device features four gigabit PoE ports, delivering up to 90W output per port utilizing the advanced IEEE 802.3bt PoE technology, making it ideal for powering security systems, LED lighting, and more. Additionally, it includes two dual-rate gigabit SFP ports, providing flexibility for both fiber and copper connectivity. Built to thrive in challenging environments, the EX42395BT operates within an extensive temperature range of -40 to 75°C, ensuring reliable performance without the need for ventilation. Its fanless design minimizes noise and reduces potential points of failure. The device also boasts high impact and thermal shock resistance, making it suitable for harsh conditions. Installation is straightforward with options for DIN-rail or wall mounting, and the compact dimensions (43 x 105 x 142mm) ensure it fits into tight spaces effortlessly. Equipped with reverse polarity and current overload protections, the EX42395BT guarantees safety and reliability for all connected devices. Supported by complimentary technical assistance and a limited lifetime warranty, this switch is a dependable choice for professionals seeking robust network solutions.

Hardened Unmanaged 4-Port Gigabit 90W PoE 2-Port Gigabit SFP/RJ45 Combo Ethernet Switch

EX42395BT is a compact hardened unmanaged DIN-rail mounted PoE switch. Equipped with 4 gigabit PoE ports using that provides up to 90W output per port using the latest IEEE 802.3bt PoE technology and 2 dual rate gigabit SFP ports, the EX42395BT provides the power required to support various security, LED lighting, and other network applications, along with flexibility, speed, and reliability to support networks where connectivity is crucial.

Features:

• High-Power PoE (Power over Ethernet):
• High power output using the latest IEEE 802.3bt technology
• Up to 90W output per port for various security, LED lighting, and other applications
• Backward compatible with 802.3af and 802.3at devices
• Hardened-Grade for Non-Ventilated & Harsh Environments:
• Wide operating temperature range from -40 to 75°C (-40 to 167°F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance
• Versatility:
• Dual-speed SFP slots provide fiber connectivity
• Combo TX/SFP port provides extra copper or fiber connectivity
• Convenient DIP switches control SFP speed and combo port
• Support:
• Complimentary Technical Support
• In-person training and free online training courses available
• Limited Lifetime Warranty

Specifications:

• LED Indicators: Per unit: Power 1, Power 2. Per port: Link/Activity
• Power:
• Input: 48-56VDC redundant (terminal block) + 48-56VDC power DIN connector;
• Power Consumption: 5.76W max @ 48VDC, without PoE
• PoE Power Output: Per Port: Up to 90W/port. Power Budget: 240W
• Protection: Reverse polarity protection, Current overload protection
• Physical:
• Casing Material: Aluminum
• IP Rating: IP30
• Dimensions: 43 x 105 x 142mm (W x D x H) or 1.69" x 4.13" x 5.59"
• Weight: 1.5lbs (0.68kg)
• Installation Type: DIN-rail or wall mounting
• Environmental:
• Operating Temp: -40 to 167°F (-40 to 75°C)
• Storage Temp: Device: -40 to 185°F (-40 to 85°C)
• Relative Humidity: 5% to 95% (non-condensing)
• MTBF: >500,000 hours @ 50°C
• What's Included:
• Device: Switch
• Installation: Mounting brackets, screws, 6-pin terminal block
• Documentation: Quick Install Guide

Ordering Information:

• EX42395BT: 4-port 10/100/1000BASE-T PoE + 1-port Combo Gigabit TX/SFP + 1-port 100/1000BASE SFP
