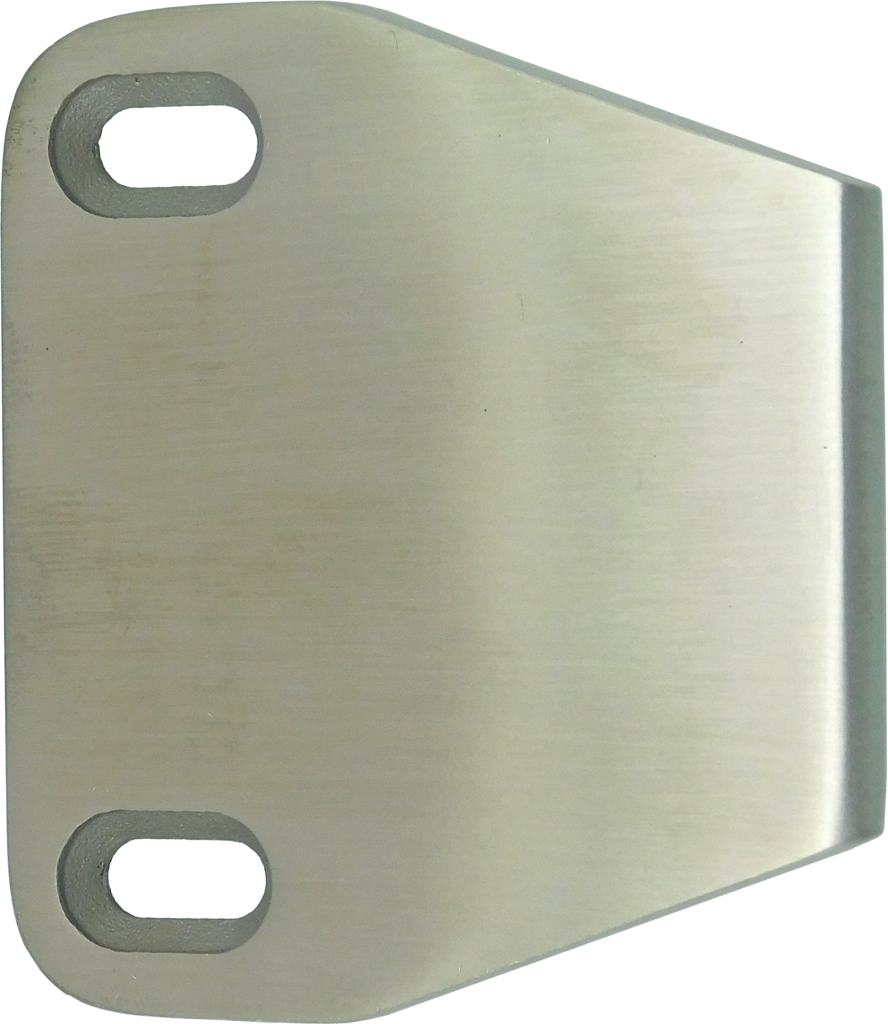

Falcon Lock 1609 US26D Double Door Strike is specifically designed for use with Falcon 24 and 25 Series Exit Devices, enhancing the security of your commercial or residential premises. This rim strike features a depth of 3/8 inch and requires a coordinator for optimal operation, making it an ideal choice for panic exit situations. The strike measures 3-1/4 inches in height and 1-1/16 inches in width, ensuring a robust installation suitable for high-traffic areas. Crafted from durable materials, it is finished in a satin chrome (626/US26D) that not only adds an aesthetic appeal but also provides resilience against wear and tear, ensuring long-lasting performance. Designed to work seamlessly with various panic devices, including the 264, 299, and 1606 models, the Falcon Lock 1609 strike guarantees reliable functionality in emergency situations. Its compatibility with 25-R Panic Devices further underscores its versatility. Whether you’re a building professional or a knowledgeable homeowner, this double door strike combines quality craftsmanship with practical design to enhance your security solutions. Trust Falcon Lock to provide peace of mind with products engineered for safety and reliability.

Double Door Strike for Rim Exit, Depth 3/8in, for 24-R Series (Requires Coordinator), 626/US26D Satin Chrome

For use with Falcon 24 & 25 Series Exit Devices.

Specifications:

• For Rim Devices:
• 264: (Panic device only) (H x W x D) 2-7⁄8" x 1-1⁄4" x 9⁄16".
• 299: (Panic device only) (H x W x D) 7-7⁄8" x 1-1⁄4" x 13⁄16".
• 299F: (H x W x D) 2-7⁄8" x 1-1⁄4" x 13⁄16".
• 499F: (H x W x D) 3-5⁄8" x 1-1⁄2" x 16⁄16".
• 1439: Blade Stop (Panic device only) (H x W x D) 1-3⁄4" x 1-7⁄8" x 1⁄2".
• 1606: (Panic device only)(H x W x D) 2-7⁄8" x 1-3⁄8" x 3⁄8".
• 1609: Requires coordinator. Panic device only. (H x W x D) 3-1⁄4" x 1-1⁄16" x 3⁄8".
• For surface and concealed vertical rod devices:
• 2130: (F)25-V and (F)25-C: standard bottom strike for grouting into concrete or masonry floors.
• 3788: (F)25-V: Furnished top.
• 4155: Optional strike: Panic device only.
• 4188: (F)25-C: Top strike.
• For mortise lock devices:
• 1279: Closed strike used on single doors and on fire exit hardware doors with coordinator.
• F1280: Open back strike used on pairs of 1-3⁄4" doors without astragal or coordinator. Can be used on stock hollow metal doors. F1280 "B" label (1 1⁄2 hr.) stainless steel strike available.
• 1281: Open back strike for 1-3⁄4" doors. 8" x 1-1⁄4" face allow use in mortise lock cutout of stock hollow metal door.

Finishes:

• 619/US15 - Nickel, Satin

Features

• 264: (Panic device only) (H x W x D) 2-7⁄8" x 1-1⁄4" x 9⁄16".
• For surface and concealed vertical rod devices:
• 4188: (F)25-C: Top strike.
• F1280: Open back strike used on pairs of 1-3⁄4" doors without astragal or coordinator. Can be used on stock hollow metal doors. F1280 "B" label (1 1⁄2 hr.) stainless steel strike available.
• 2130: (F)25-V and (F)25-C: standard bottom strike for grouting into concrete or masonry floors.
• 4155: Optional strike: Panic device only.
• 499F: (H x W x D) 3-5⁄8" x 1-1⁄2" x 16⁄16".
• 1281: Open back strike for 1-3⁄4" doors. 8" x 1-1⁄4" face allow use in mortise lock cutout of stock hollow metal door.
• 1439: Blade Stop (Panic device only) (H x W x D) 1-3⁄4" x 1-7⁄8" x 1⁄2".
• 299: (Panic device only) (H x W x D) 7-7⁄8" x 1-1⁄4" x 13⁄16".
• 3788: (F)25-V: Furnished top.
• For Rim Devices:
• 1606: (Panic device only)(H x W x D) 2-7⁄8" x 1-3⁄8" x 3⁄8".
• 1279: Closed strike used on single doors and on fire exit hardware doors with coordinator.
• For mortise lock devices:
• 299F: (H x W x D) 2-7⁄8" x 1-1⁄4" x 13⁄16".
• 1609: Requires coordinator. Panic device only. (H x W x D) 3-1⁄4" x 1-1⁄16" x 3⁄8".
