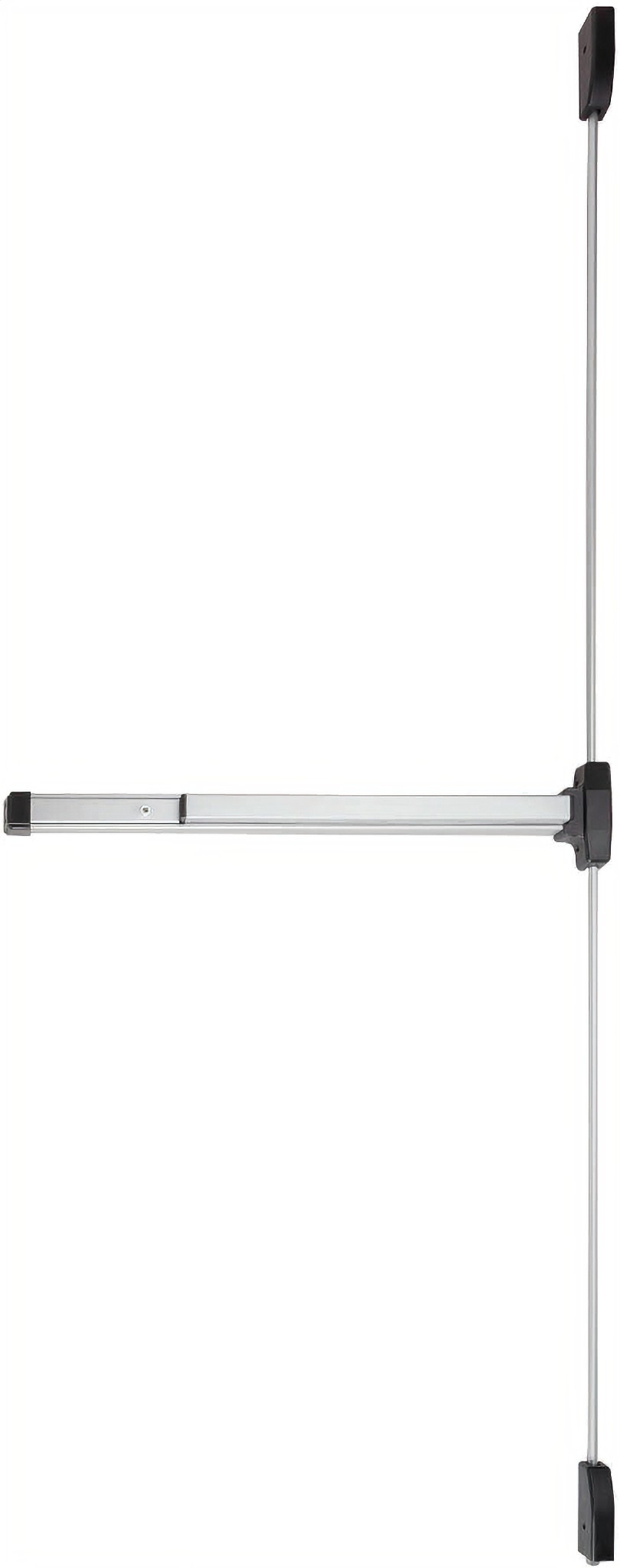

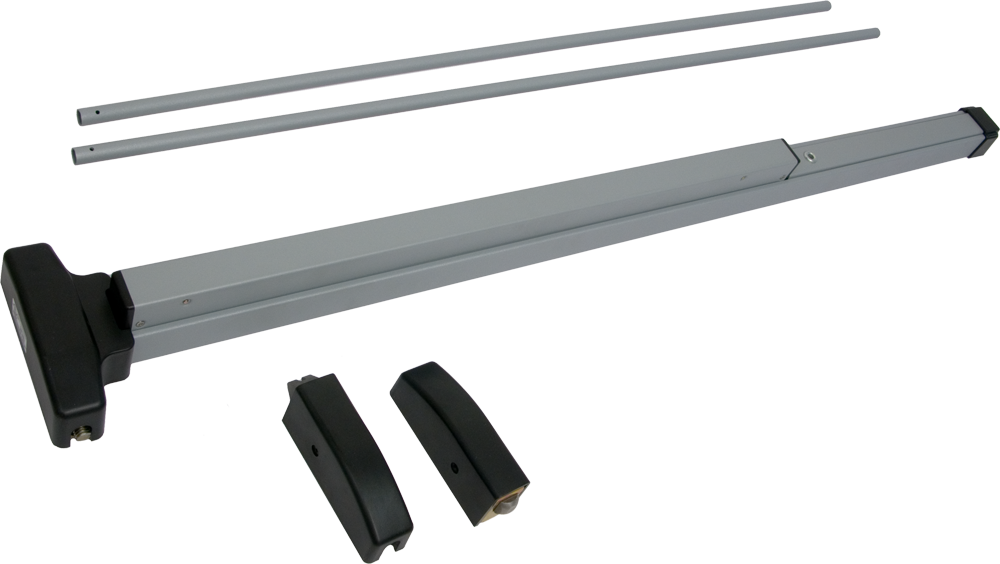

Falcon Lock 19V-EO-SP28-48X84 Narrow Stile SVR Surface Vertical Exit Device offers a robust solution for exit-only applications, ensuring compliance with exit door requirements. This device is designed for durability and functionality, featuring a field-reversible hand and a deadlocking top latch for enhanced security. Its surface-applied design allows for easy installation on doors measuring 48 inches high and 84 inches wide, making it ideal for high-traffic areas. Constructed from powder-coated aluminum in a sleek SP28 finish, the device boasts a stainless steel latchbolt with a 3/4-inch throw at the top and a 1/2-inch square bolt at the bottom. The hex dogging feature simplifies operation, eliminating wear-prone threaded parts. The 3788 strike is standard for surface application, while the 2130 strike can be mortised into the floor, providing flexible mounting options. The Falcon Lock 19V-EO is ANSI A156.3 certified, ensuring it meets Grade 1 standards for reliability. It can integrate with building security systems, offering options for electric dogging and monitoring. This exit device is well-suited for narrow stile doors up to 1-3/4 inches thick, making it a versatile choice for both residential and commercial environments.

Narrow Stile SVR Surface Vertical Exit Device, Exit Only, 48in x 84in, 3788 2130 Strike, Hex Dogging, Grade 1, 689/SP28 Painted Aluminum

Manufactured to the same exacting standards as the 19 Rim, the 19-V Exit Device complies with most exit door requirements, and is fully reversible and surface applied. This device is regularly furnished with deadlocking top latch with latch retention and square bolt at bottom. The "EO" (Exit Only) device is ready to accept any trim function shown on the Styles tab.

Specifications:

• Hand: Field reversible
• Functions: All functions built into "EO" device. All 19 Series trim works with rim or vertical devices.
• Finishes: Powder-coated aluminum-SP28; powder-coated duranodic-SP313; stainless steel US-32D
• Strikes: 3788 strike is surface applied standard, 2130 strike is mortised into floor
• Angle Bracket: Use 4215 angle bracket in flush transom or rabbeted installations. Allows use of standard 3788 strike.
• Latchbolt: Top stainless steel 3/4" throw. Bottom square bolt 1/2" throw
• Deadlocking Latchbolt: Standard
• Dogging Feature: 1/2 turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Use 1-1/8" long mortise cylinder with standard "A" cam
• Stock Sizes: 3'0" and 4'0".
• Doors: 1-3/4" thick, wood or metal. Specify thickness if other than 1-3/4".
• Narrow Stile Doors: To 1-3/4" N.S. aluminum. With control trim–2 1/4" min. stile.
• Projection: 2-1/2" max., 1-7/8" dogged
• Electric Function: Can be interfaced with building security systems. Security monitoring, electric dogging, exit indicator, and exit alarm available.
• Fasteners: All mounting screws are concealed. Furnished with sheet metal screws. Machine screws available, specify AMS.
• Sex Bolts: 3- #4122 (1/4 -20) SNB standard. Hollow core wood, light gauge Hollow Metal, etc. require additional sex bolts. 19-V: 6-#2729 #10-24 SNB; 19-V-LBR: 3-#2729 #10-24 SNB
• ANSI: Certified ANSI A156.3 2001 Grade 1 standards
• 19-V: Latch retention and 3788 strike top, deadbolt and 2130 flush strike bottom
• 19-V-LBR: 3788 strike top
• Vertical Rods: Furnished to length based on 40-5/16" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering
• Shim Kit: For glass lites applications; 1/4" thick specify SK-19-V-1/4"
• 161 Cutout: Device covers 161 cutout with KIK/KIL and Centron trims. Other trim requires cover plate.

Door Application:

Features

• Finishes: Powder-coated aluminum-SP28; powder-coated duranodic-SP313; stainless steel US-32D
• Functions: All functions built into "EO" device. All 19 Series trim works with rim or vertical devices.
• Deadlocking Latchbolt: Standard
• Fasteners: All mounting screws are concealed. Furnished with sheet metal screws. Machine screws available, specify AMS.
• Vertical Rods: Furnished to length based on 40-5/16" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering
• Hand: Field reversible
• Strikes: 3788 strike is surface applied standard, 2130 strike is mortised into floor
• Doors: 1-3/4" thick, wood or metal. Specify thickness if other than 1-3/4".
• Sex Bolts: 3- #4122 (1/4 -20) SNB standard. Hollow core wood, light gauge Hollow Metal, etc. require additional sex bolts. 19-V: 6-#2729 #10-24 SNB; 19-V-LBR: 3-#2729 #10-24 SNB
• Narrow Stile Doors: To 1-3/4" N.S. aluminum. With control trim–2 1/4" min. stile.
• Shim Kit: For glass lites applications; 1/4" thick specify SK-19-V-1/4"
• 19-V-LBR: 3788 strike top
• 161 Cutout: Device covers 161 cutout with KIK/KIL and Centron trims. Other trim requires cover plate.
• Electric Function: Can be interfaced with building security systems. Security monitoring, electric dogging, exit indicator, and exit alarm available.
• Angle Bracket: Use 4215 angle bracket in flush transom or rabbeted installations. Allows use of standard 3788 strike.
• Stock Sizes: 3'0" and 4'0".
• 19-V: Latch retention and 3788 strike top, deadbolt and 2130 flush strike bottom
• Dogging Feature: 1/2 turn hex dogging standard. No threaded parts to wear out.
• Projection: 2-1/2" max., 1-7/8" dogged
• ANSI: Certified ANSI A156.3 2001 Grade 1 standards
• Cylinder Dogging: Specify "CD" prefix. Use 1-1/8" long mortise cylinder with standard "A" cam
• Latchbolt: Top stainless steel 3/4" throw. Bottom square bolt 1/2" throw
