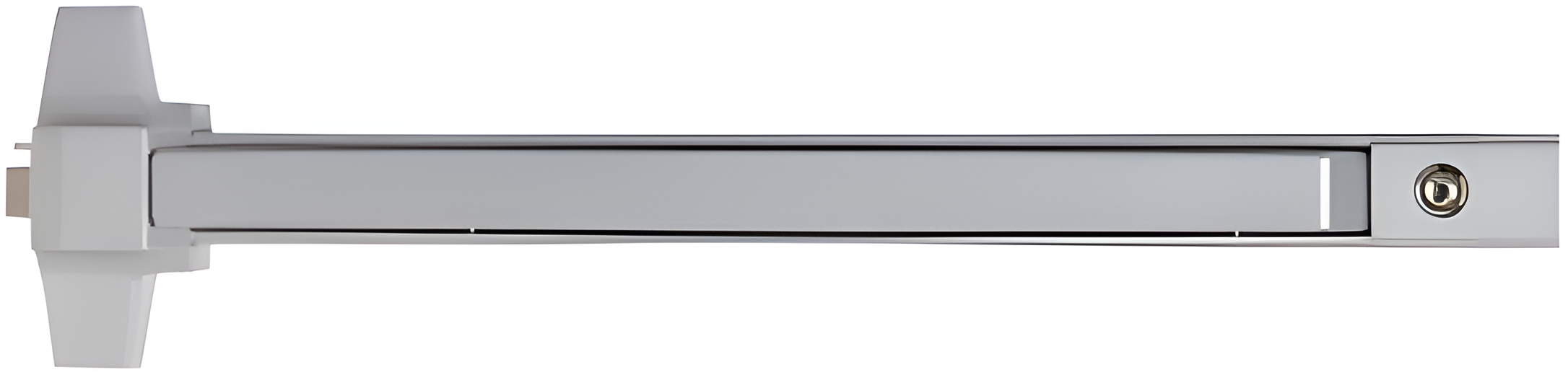

Falcon Lock 20R-EO-SP28-36 Rim Exit Device offers an exceptional blend of reliability and affordability, making it an ideal choice for various applications. Designed to meet the rigorous ANSI/BHMA A156.3-2014 Grade 1 testing standards, this exit device ensures safety and durability. With a 36-inch width, it accommodates doors ranging from 29 to 36 inches, fitting standard 1-3/4" thick doors and requiring a minimum stile width of 3-1/2". Constructed with a robust steel mechanism case, the 20R-EO features scratch-resistant surfaces and deadlocking built directly into the device for enhanced security. This UL305 listed panic device is also UL10 listed, providing a 3-hour fire rating for rim and surface vertical applications. Hex key dogging is standard on all panic devices, ensuring ease of use and maintenance. The non-handed design of the rim device and trim allows for versatile installation, while the surface vertical devices can be easily field-reversed. The universal hardware pack is suitable for both wood and hollow metal doors, facilitating a seamless installation process. Available in a sprayed aluminum finish (SP28), the Falcon Lock 20R-EO-SP28-36 combines functionality with a sleek appearance, ensuring it meets the demands of building professionals and knowledgeable homeowners alike.

Rim Exit Device, Exit Only, 36in, Hex Dogging, Grade 1, 689/SP28 Painted Aluminum

The 20 Series exit device is an affordable and reliable choice. Offered in Rim, Surface Vertical, Rim Fire and Surface Vertical Fire that will accommodate 161 door prep, this series can meet the needs of your application. This series offers 8 different trim functions including 161 key in lever.

Specifications:

• Meets ANSI/BHMA A156.3-2014 Grade 1 testing standards.
• Standard Features include scratch-resistant surfaces and deadlocking built into the device.
• UL305 listed panic devices.
• UL10 listed 3-hour fire rated devices for rim and surface vertical applications.
• Durable, steel mechanism case construction.
• Devices fit standard 1-3⁄4" thick door.
• 3-1⁄2" minimum stile width.
• Hex key dogging standard on all panic devices.
• Rim devices and trim are non-handed.
• Surface vertical devices easily field reversible.
• Universal hardware pack for wood and hollow metal.
• Door widths: 36" device fits 29" to 36" door size.; 48" device fits 33" to 48" door size.

Trims:

• Escutcheon lever:
• Entrance: 212-L.
• Night Latch: 212-L-NL.
• Raised Lip:
• Night Latch: 240-NL.
• Handle Pull Plate:
• Night Latch: 218-NL.
• Thumb Piece: 218-TP.
• Key In Lever Round Rose:
• Entrance: 214-KIL.
• Night Latch: 214-KIL-NL.
• Passage: 214-KIL-BE.

Finishes:

• 689/SP28 - Aluminum, Sprayed
• 630/US32D - Satin Stainless Steel

Features

• Meets ANSI/BHMA A156.3-2014 Grade 1 testing standards.
• Standard Features include scratch-resistant surfaces and deadlocking built into the device.
• Universal hardware pack for wood and hollow metal.
• Hex key dogging standard on all panic devices.
• UL10 listed 3-hour fire rated devices for rim and surface vertical applications.
• 3-1⁄2" minimum stile width.
• Rim devices and trim are non-handed.
• Surface vertical devices easily field reversible.
• Door widths: 36" device fits 29" to 36" door size.; 48" device fits 33" to 48" door size.
• Durable, steel mechanism case construction.
• UL305 listed panic devices.
• Devices fit standard 1-3⁄4" thick door.
