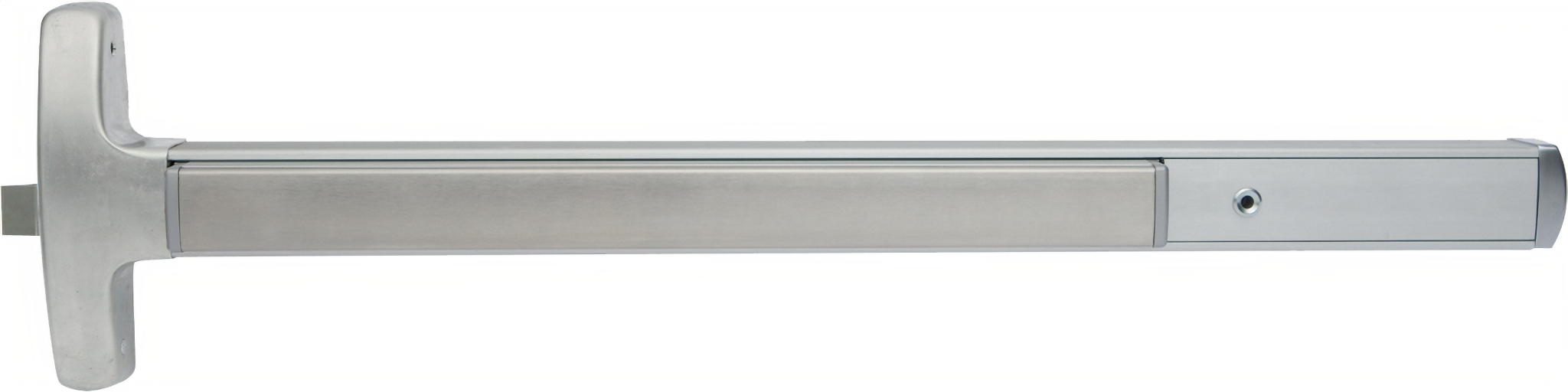

Falcon Lock 24R-EO-US32D-48 Narrow Stile Rim Exit Device, 48in, Hex Dogging, Grade 1, Stainless Steel

Falcon Lock 24R-EO-US32D-48 Narrow Stile Rim Exit Device is designed for high-traffic installations requiring both functionality and style. This exit-only device features a durable extruded aluminum construction that ensures enhanced strength and resistance to impact, making it ideal for commercial environments. The streamlined touch bar design eliminates exposed screws or rivets, resulting in clean lines that enhance the overall aesthetic of your entryway. It accommodates a variety of trim options due to its single trim input design, allowing for maximum versatility. The stainless steel push pad cover adds a scratch-resistant surface, ensuring long-lasting performance. With a non-handed configuration, the 24R-EO is easy to install on 1-3/4" thick wood or metal doors. Its hex dogging feature provides a simple half-turn operation, with no threaded parts to wear out over time. Additionally, this device can be electrified to integrate with building security systems, offering motorized electric latch retraction and optional features like delayed egress and exit alarms. Certified to ANSI A156.3-2001 grade 1 standards, the Falcon Lock 24R-EO-US32D-48 is a reliable choice for any building professional seeking a robust and elegant exit solution. Choose from a range of finishes, including satin stainless steel, to match your design needs.

Narrow Stile Rim Exit Device, Exit Only, 48in, Hex Dogging, 299 Strike, Grade 1,630/US32D Stainless Steel

The 24-R Series narrow stile rim device allows for application versatility in high-traffic installations. Standard Features include a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• Functions: 24-EO (exit only) has all functions built in. Order trim with the device, or add it later.
• Strikes: 299F strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Optional. Specify "DL" prefix.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4"
• Projections: 2-3⁄4" maximum, 2" dogged.
• Mounting height: 40" from CL to finished floor.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 4 - 425 (#I0-24) SNB and 2 - 325 (1⁄4"-20) SNB. For devices with trim, specify 4 - 425 (#I0-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case & Working Parts: Wrought steel with heavy wrought and sintered metal parts.
• Shim Kits: For glass lite applications; 1⁄4" thick, specify SK24-R.

Stock Sizes:

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
