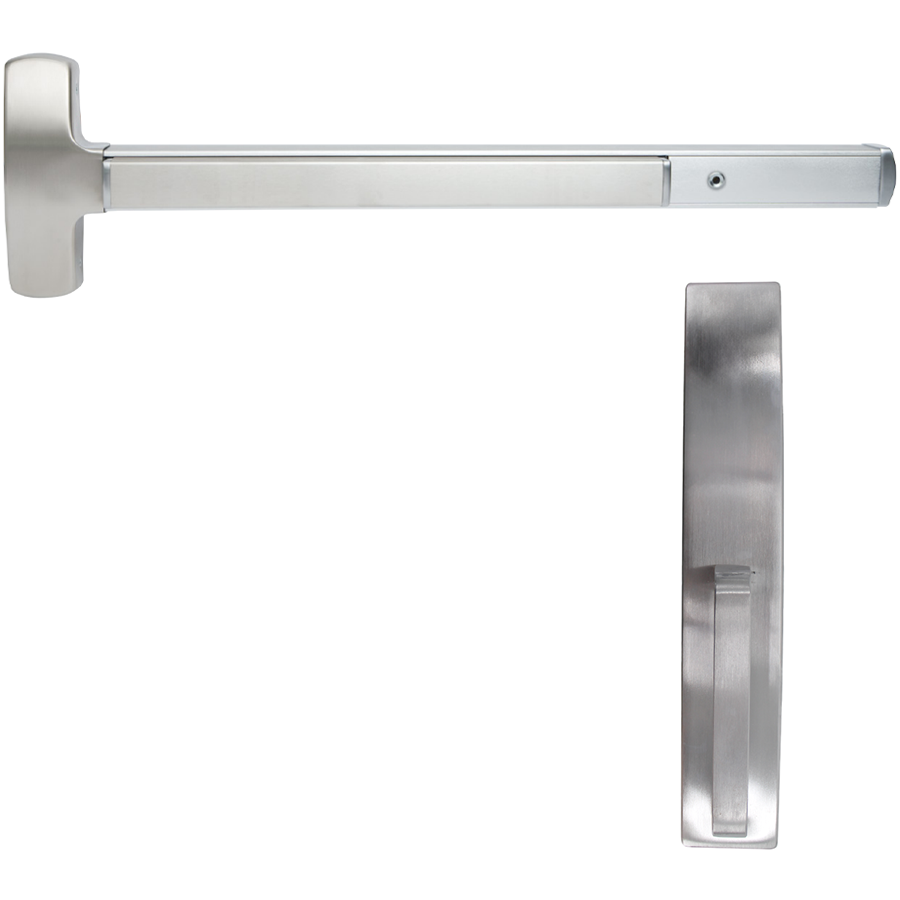

Falcon Lock 25M-DT-US26D-48-RHR Mortise Exit Device Kit, 48in, Dummy Pull Trim, RHR, Grade 1, Satin Chrome

Falcon Lock 25M-DT-US26D-48-RHR KIT offers a robust solution for high-traffic exits, combining a reliable mortise exit device with a sleek, dummy pull trim. With a 48-inch width and Grade 1 certification, this device is designed to ensure maximum safety and security, making it ideal for both single and double door applications. Constructed from extruded aluminum, the device provides exceptional strength and impact resistance, while the stainless steel push pad cover ensures a scratch-resistant surface. The flush-end caps enhance durability by preventing damage in demanding environments. Featuring a half-turn hex dogging mechanism, this device eliminates wear associated with threaded parts, guaranteeing long-lasting performance. The 25-M series is versatile, accommodating various trims with its streamlined design that features no exposed screws or rivets. It also includes a deadlocking latchbolt for added security and is compatible with a range of electric functions for integration with building security systems. Designed for doors 1-3/4 inches thick, this exit device is suitable for both wood and metal installations. The Falcon Lock 25M-DT-US26D-48-RHR KIT is an outstanding choice for professionals seeking a reliable, aesthetically pleasing exit solution that meets stringent ANSI A156.3-2001 standards.

KIT - Mortise Exit Device, 48in, Dummy Pull Trim 512DT, 1279 Strike, Hex Dogging, RHR Right Hand Reverse, Grade 1, 626/US26D Satin Chrome

The 25-M Series is the only device that pairs a tough, reliable exit device with our strongest mortise lock. The result is maximum safety and security in a single-point, mortise latch type device that also has an attractive touch bar design.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Handed.
• Strikes: 1279 standard, F1280 and 1281 optional.
• Latchbolt: 3⁄4" throw.
• Deadlocking latchbolt: Standard.
• Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder dogging: Specify "CD" prefix. Uses 1-1⁄8" mortise cylinder with standard cam.
• Mounting height: 40-1⁄4" from CL to finished floor. For mortise lock prep per ANSI A115.1-1990.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only, not available with MEL), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Stile: 4-1⁄2" minimum.
• Projection: 2-3⁄4" maximum, 2" dogged.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 6 - 425 (# 10-24) SNB. For devices with trim, specify 2 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Mortise lock: Heavy wrought lock case with investment cast or sintered steel parts. Lock face is forged brass—fits standard cutout. Locks are designed to fit standard ANSI A115.1 preparation for 1-3⁄4" doors. Deadlocked when auxiliary bolt is depressed 5⁄16".

Stock Sizes:

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
