Falcon Lock 25M-EO-US26D-36-RHR Mortise Exit Device offers unparalleled security with its robust construction and sleek design. This Grade 1 exit device combines a reliable mortise lock with a panic exit feature, ensuring safety for both single and double door applications. Crafted from extruded aluminum, the device is designed for strength and impact resistance, making it ideal for high-traffic areas. The 36-inch model features hex dogging for easy operation and a right-hand reverse handing, ensuring a seamless fit for your specific installation needs. With a 3/4" throw latchbolt and a deadlocking latchbolt standard, it provides added security against unauthorized access. The absence of exposed screws or rivets promotes a streamlined aesthetic, enhancing the overall look of your doors. Ideal for storefronts with narrow stile aluminum doors, the Falcon Lock 25M series is equipped with a stainless steel push pad cover that resists scratches, maintaining a polished appearance over time. The device also interfaces effortlessly with building security systems, providing options for electric functions, including motorized latch retraction and security monitoring. Available in a stylish satin chrome finish, this exit device not only meets ANSI A156.3-2001 grade 1 standards but also ensures compliance with safety regulations, making it a reliable choice for any professional locksmith or knowledgeable homeowner. Upgrade your security with Falcon Lock today.

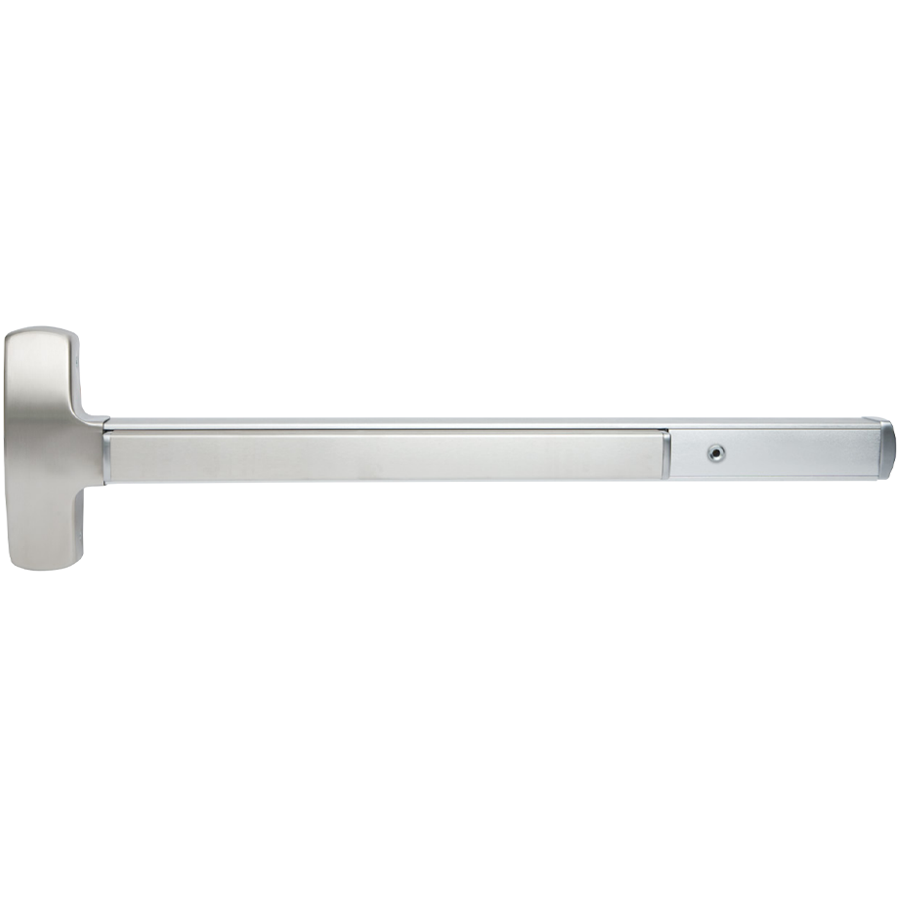

Mortise Exit Device, 36in, Exit Only, 1279 Strike, Hex Dogging, RHR Right Hand Reverse, Grade 1, 626/US26D Satin Chrome

The 25-M Series is the only device that pairs a tough, reliable exit device with our strongest mortise lock. The result is maximum safety and security in a single-point, mortise latch type device that also has an attractive touch bar design.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Handed.
• Strikes: 1279 standard, F1280 and 1281 optional.
• Latchbolt: 3⁄4" throw.
• Deadlocking latchbolt: Standard.
• Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder dogging: Specify "CD" prefix. Uses 1-1⁄8" mortise cylinder with standard cam.
• Mounting height: 40-1⁄4" from CL to finished floor. For mortise lock prep per ANSI A115.1-1990.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only, not available with MEL), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Stile: 4-1⁄2" minimum.
• Projection: 2-3⁄4" maximum, 2" dogged.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 6 - 425 (# 10-24) SNB. For devices with trim, specify 2 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Mortise lock: Heavy wrought lock case with investment cast or sintered steel parts. Lock face is forged brass—fits standard cutout. Locks are designed to fit standard ANSI A115.1 preparation for 1-3⁄4" doors. Deadlocked when auxiliary bolt is depressed 5⁄16".

Stock Sizes:

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
