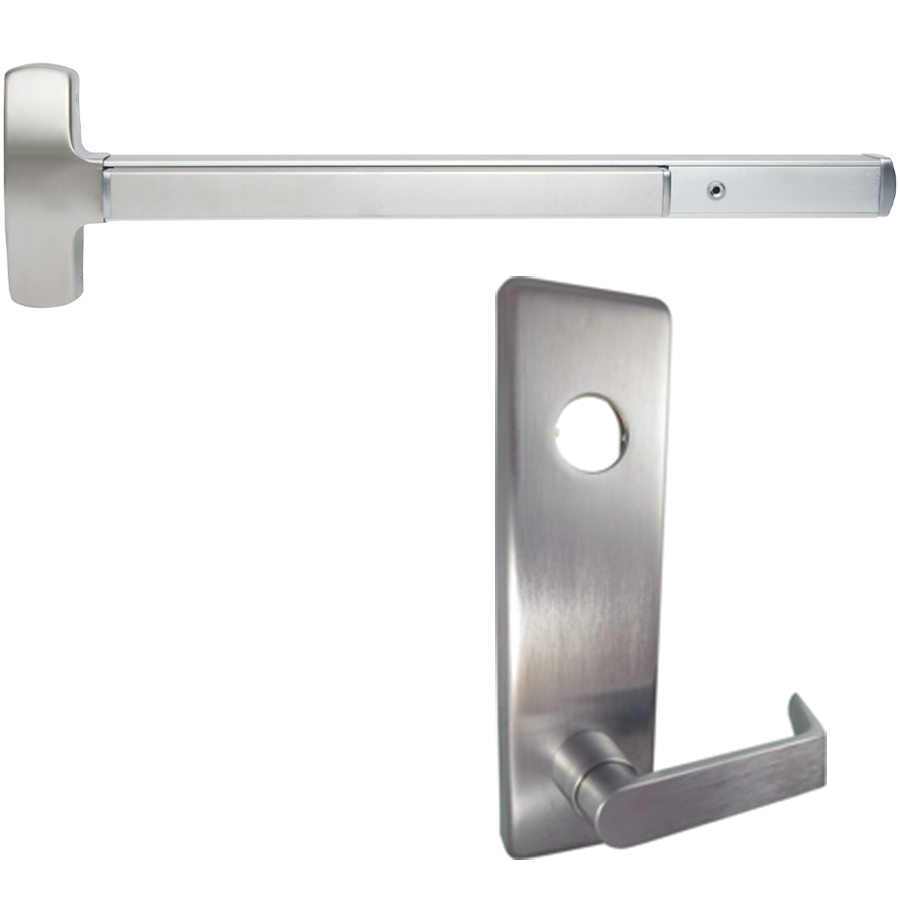

Falcon Lock 25M-L-DAN-US26D-48-RHR Mortise Exit Device Kit, 48in, Dane Lever Trim 510L, Grade 1, Satin Chrome

Falcon Lock 25M-L-DAN-US26D-48-RHR KIT is a premier mortise exit device designed for durability and security. With a sleek 48-inch escutcheon paired with the stylish Dane lever trim, this device combines aesthetics with robust functionality. The extruded aluminum construction ensures enhanced strength and impact resistance, making it ideal for both single and double door applications. This exit device includes essential panic exit and fire exit hardware, promoting safety in commercial environments. Its design features no exposed screws or rivets, providing a clean appearance while maximizing versatility with its single trim input. The stainless steel push pad cover is scratch-resistant, ensuring longevity even in high-traffic areas. Equipped with a half-turn hex dogging feature, the Falcon Lock 25M offers ease of use without the wear-and-tear associated with threaded parts. The device is certified to ANSI A156.3 Grade 1 standards, ensuring top-tier performance. It is designed for 1-3/4" thick wood or metal doors and accommodates a variety of electric functions for integration with building security systems. Available in a satin chrome finish (US26D), this exit device not only provides functional security but also elevates the overall look of your entrance. Trust Falcon Lock for a reliable solution that doesn’t compromise on style or safety.

KIT - Mortise Exit Device, 48in, Escutcheon x Dane Lever Trim 510L, 1279 Strike, Hex Dogging, RHR Right Hand Reverse, Grade 1, 626/US26D Satin Chrome

The 25-M Series is the only device that pairs a tough, reliable exit device with our strongest mortise lock. The result is maximum safety and security in a single-point, mortise latch type device that also has an attractive touch bar design.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Handed.
• Strikes: 1279 standard, F1280 and 1281 optional.
• Latchbolt: 3⁄4" throw.
• Deadlocking latchbolt: Standard.
• Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder dogging: Specify "CD" prefix. Uses 1-1⁄8" mortise cylinder with standard cam.
• Mounting height: 40-1⁄4" from CL to finished floor. For mortise lock prep per ANSI A115.1-1990.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only, not available with MEL), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Stile: 4-1⁄2" minimum.
• Projection: 2-3⁄4" maximum, 2" dogged.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 6 - 425 (# 10-24) SNB. For devices with trim, specify 2 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Mortise lock: Heavy wrought lock case with investment cast or sintered steel parts. Lock face is forged brass—fits standard cutout. Locks are designed to fit standard ANSI A115.1 preparation for 1-3⁄4" doors. Deadlocked when auxiliary bolt is depressed 5⁄16".

Stock Sizes:

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
