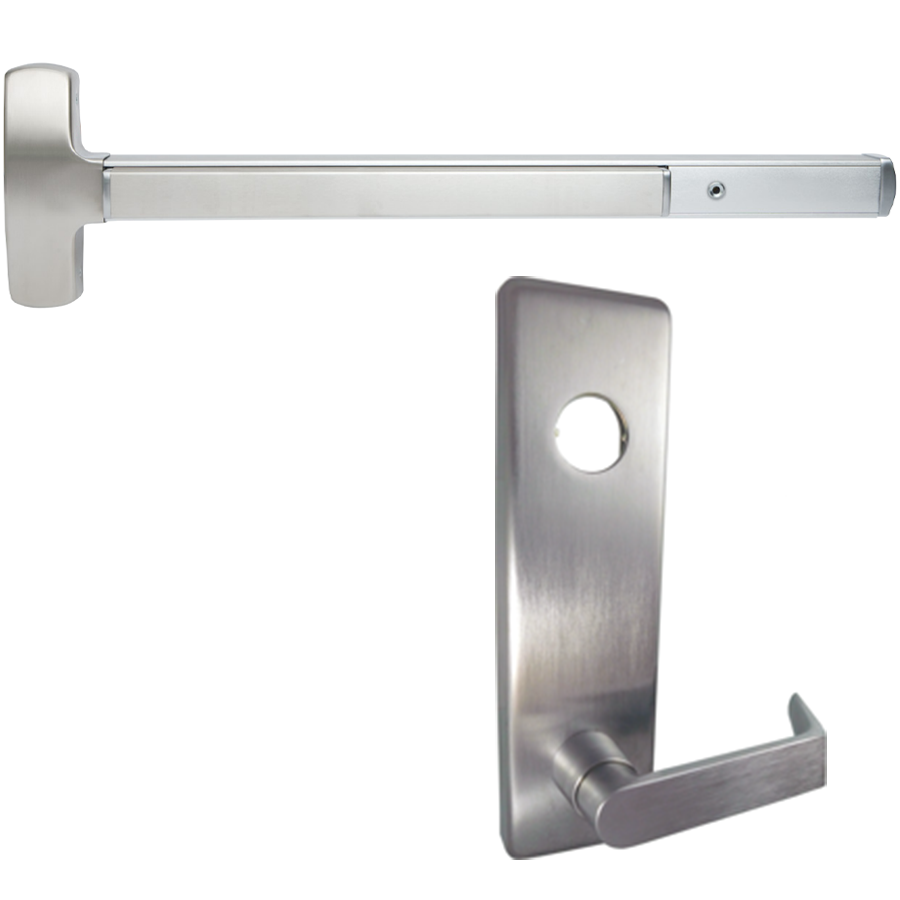

Falcon Lock 25M-L-NL-DAN-US26D-48-RHR Mortise Exit Device 48in, Nightlatch Escutcheon Dane Lever Trim 510L-NL

Falcon Lock 25M-L-NL-DAN-US26D-48-RHR KIT is a robust mortise exit device designed to enhance security while maintaining aesthetic appeal. This 48-inch unit features a nightlatch escutcheon paired with the sleek Dane lever trim, ensuring both functionality and style. Built to Grade 1 standards, it guarantees durability and reliability, making it an ideal choice for high-traffic areas. The extruded aluminum construction ensures superior strength and impact resistance. This device accommodates both single and double door applications, equipped with panic exit and fire exit hardware. Notably, the design eliminates exposed screws or rivets on the back, delivering a clean, streamlined appearance ideal for professional settings. Additional features include a 3/4" throw deadlocking latchbolt and hex dogging for secure, hassle-free operation. The stainless steel push pad cover resists scratching, maintaining the device's polished look over time. With a narrow stile center case, it fits perfectly on storefront applications with narrow stile aluminum doors. This device is also adaptable for electric functions, allowing integration with building security systems. The Falcon Lock 25M series provides peace of mind, ensuring safety without compromising on design.

KIT - Mortise Exit Device, 48in, Nightlatch Escutcheon x Dane Lever Trim 510L-NL, 1279 Strike, Hex Dogging, RHR Right Hand Reverse, Grade 1, 626/US26D Satin Chrome

The 25-M Series is the only device that pairs a tough, reliable exit device with our strongest mortise lock. The result is maximum safety and security in a single-point, mortise latch type device that also has an attractive touch bar design.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Handed.
• Strikes: 1279 standard, F1280 and 1281 optional.
• Latchbolt: 3⁄4" throw.
• Deadlocking latchbolt: Standard.
• Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder dogging: Specify "CD" prefix. Uses 1-1⁄8" mortise cylinder with standard cam.
• Mounting height: 40-1⁄4" from CL to finished floor. For mortise lock prep per ANSI A115.1-1990.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only, not available with MEL), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Stile: 4-1⁄2" minimum.
• Projection: 2-3⁄4" maximum, 2" dogged.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 6 - 425 (# 10-24) SNB. For devices with trim, specify 2 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Mortise lock: Heavy wrought lock case with investment cast or sintered steel parts. Lock face is forged brass—fits standard cutout. Locks are designed to fit standard ANSI A115.1 preparation for 1-3⁄4" doors. Deadlocked when auxiliary bolt is depressed 5⁄16".

Stock Sizes:

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
