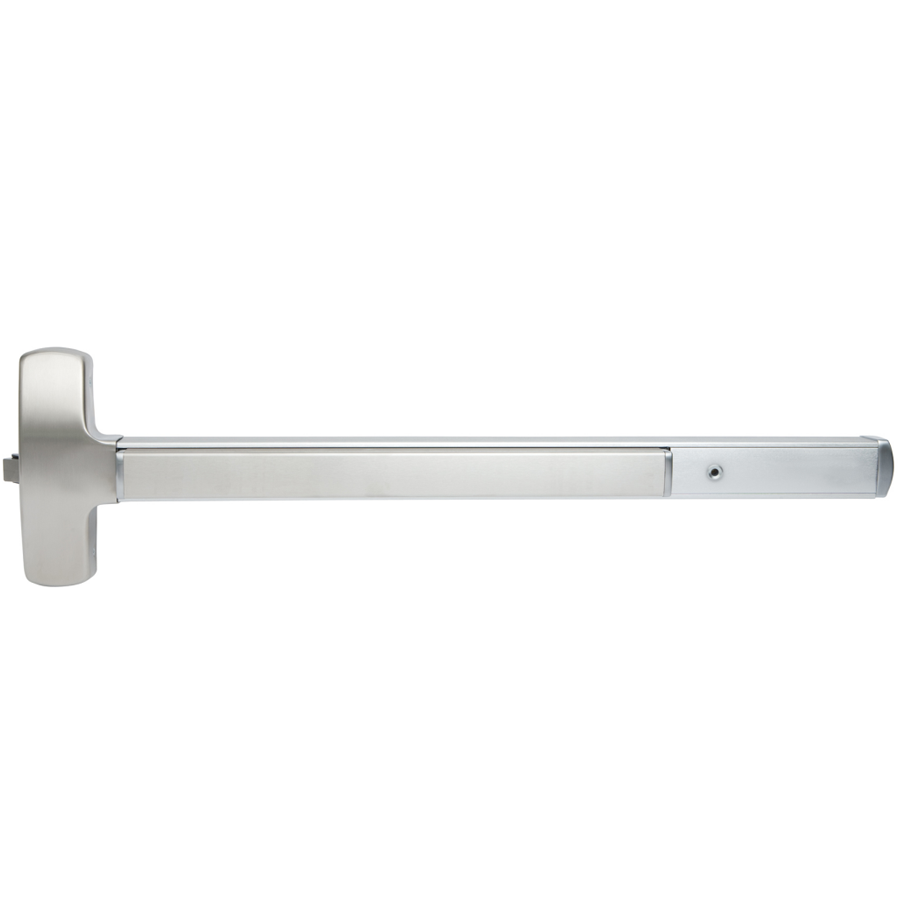

Falcon Lock 25R-EO-US26D-36 Rim Exit Device, 36in, Hex Dogging, 299 Strike, Grade 1, Satin Chrome

Falcon Lock 25R-EO-US26D-36 Rim Exit Device delivers unparalleled security and convenience for high-traffic environments. Designed with a sleek touch bar and a robust single-point rim latch, this exit-only device is perfect for commercial applications. Its extruded aluminum construction ensures exceptional strength and impact resistance, while the absence of exposed screws or rivets provides a streamlined aesthetic. This Grade 1 device features a standard 299 strike and is non-handed, making installation versatile for various door configurations. The stainless steel push pad cover offers a durable, scratch-resistant surface, ensuring longevity even in demanding settings. With half-turn hex dogging, you can easily secure the device without worrying about wear on threaded components. Suitable for 1-3⁄4" thick wood or metal doors, the device can accommodate a maximum projection of 2-3⁄4" and is mounted at a convenient height of 40-1⁄4" from the floor. The Falcon Lock 25R series is compatible with building security systems for added functionality, including motorized electric latch retraction and delayed egress options. Available in a stylish satin chrome finish, this exit device not only enhances security but also complements the overall design of your space, making it an ideal choice for modern commercial properties.

Rim Exit Device, Exit Only, 36in, Hex Dogging, 299 Strike, Grade 1, 626/US26D Satin Chrome

The 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK25-RM.

Stock Sizes:

• Single Door Application

Device	Door Size	Door Strike	Door Stile (in)	Min. Door Opening Width
25-R	3’	299	4"	2' 7 1⁄2"
25-R	3’	264	3 7⁄8"	2' 7 3⁄8"
25-R	3’	1439	3 1⁄4"	2' 6 3⁄4"
25-R	3’	1606	3 5⁄8"	2' 7 1⁄8"
25-R	4'	299	4"	3' 1 1⁄2"
25-R	4'	264	3 7⁄8"	3' 1 3⁄8"
25-R	4'	1439	3 1⁄4"	3' 3⁄4"
25-R	4'	1606	3 5⁄8"	3' 1 1⁄8"

• Double Door Application

Device	Door Size	Strike x Mullion	Door Stile (in.)	Min. Door Opening Width
25-R	3’	299 x 2923	4 1⁄8"	2' 7 1⁄2"
25-R	3’	299 x 4023	4 3⁄8"	2' 7 1⁄2"
25-R	3’	264 x 2923	4"	2' 7 3⁄8"
25-R	3’	264 x 4023	4 1⁄4"	2' 7 3⁄8"
25-R	3’	1439 x 2923	3 7⁄8"	2' 7 1⁄4"
25-R	3’	1439 x 4023	4 1⁄8"	2' 7 1⁄4"
25-R	3’	1606 x 2923	4 1⁄4"	2' 7 1⁄8"
25-R	3’	1606 x 4023	4 1⁄2 "	2' 7 1⁄8"
25-R	4’	299 x 2923	4 1⁄8"	3' 1 1⁄2"
25-R	4’	299 x 4023	4 3⁄8"	3' 1 1⁄2"
25-R	4’	264 x 2923	4"	3' 1 3⁄8"
25-R	4’	264 x 4023	4 1⁄4"	3' 1 3⁄8"
25-R	4’	1439 x 2923	3 7⁄8"	3' 1 1⁄4"
25-R	4’	1439 x 4023	4 1⁄8"	3' 1 1⁄4"
25-R	4’	1606 x 2923	4 1⁄4"	3' 1 1⁄8"
25-R	4’	1606 x 4023	4 1⁄2 "	3' 1 1⁄8"
25-Vx 25-R	3’	1609	3 1⁄2"	2' 7 5⁄8" for 3 1⁄2" Min stile
25-Vx 25-R	4’	1609	3 1⁄2"	3’ 1 5⁄8" for 3 1⁄2" Min stile

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
