Falcon Lock 25R-EO-US28-48 Rim Exit Device offers robust security solutions tailored for high-traffic environments. This exit-only device features a 48-inch length and hex dogging mechanism, ensuring reliable operation while maintaining a sleek profile. Constructed from extruded aluminum, it delivers exceptional strength and impact resistance, making it ideal for both wood and metal doors. The device's design eliminates exposed screws and rivets, resulting in a clean, modern appearance. The stainless steel push pad cover is scratch-resistant, providing a durable surface for frequent use. Non-handed and versatile, it accommodates various trim styles with ease. The 299 strike is standard, ensuring compatibility with a wide range of door applications. Designed for simplicity, the half-turn hex dogging feature prevents wear and tear while allowing for easy locking and unlocking. This exit device is certified to ANSI A156.3-2001 grade 1 standards, further emphasizing its reliability. Additionally, it can be electrified for added convenience, integrating seamlessly with existing security systems. Whether for storefronts or institutional buildings, the Falcon Lock 25R-EO-US28-48 Rim Exit Device stands out as a dependable choice for safety and accessibility.

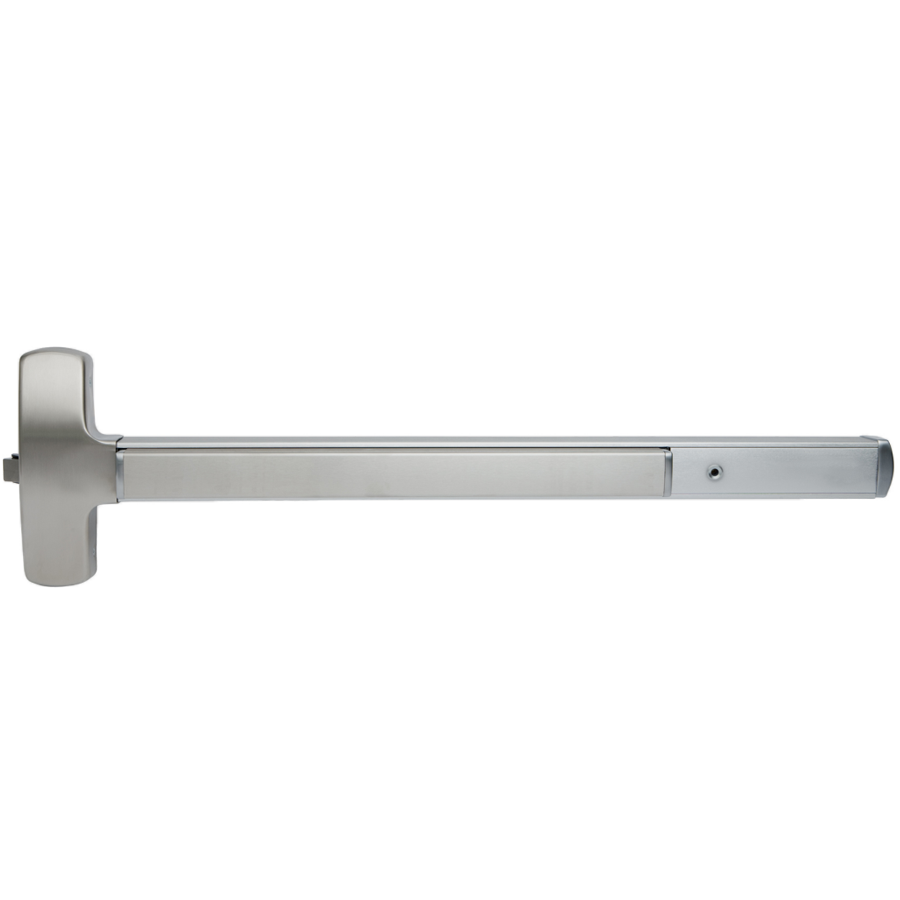

Rim Exit Device, Exit Only, 48in, Hex Dogging, 299 Strike, Grade 1, 628/US28 Anodized Aluminum

The 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK25-RM.

Stock Sizes:

• Single Door Application

Device	Door Size	Door Strike	Door Stile (in)	Min. Door Opening Width
25-R	3’	299	4"	2' 7 1⁄2"
25-R	3’	264	3 7⁄8"	2' 7 3⁄8"
25-R	3’	1439	3 1⁄4"	2' 6 3⁄4"
25-R	3’	1606	3 5⁄8"	2' 7 1⁄8"
25-R	4'	299	4"	3' 1 1⁄2"
25-R	4'	264	3 7⁄8"	3' 1 3⁄8"
25-R	4'	1439	3 1⁄4"	3' 3⁄4"
25-R	4'	1606	3 5⁄8"	3' 1 1⁄8"

• Double Door Application

Device	Door Size	Strike x Mullion	Door Stile (in.)	Min. Door Opening Width
25-R	3’	299 x 2923	4 1⁄8"	2' 7 1⁄2"
25-R	3’	299 x 4023	4 3⁄8"	2' 7 1⁄2"
25-R	3’	264 x 2923	4"	2' 7 3⁄8"
25-R	3’	264 x 4023	4 1⁄4"	2' 7 3⁄8"
25-R	3’	1439 x 2923	3 7⁄8"	2' 7 1⁄4"
25-R	3’	1439 x 4023	4 1⁄8"	2' 7 1⁄4"
25-R	3’	1606 x 2923	4 1⁄4"	2' 7 1⁄8"
25-R	3’	1606 x 4023	4 1⁄2 "	2' 7 1⁄8"
25-R	4’	299 x 2923	4 1⁄8"	3' 1 1⁄2"
25-R	4’	299 x 4023	4 3⁄8"	3' 1 1⁄2"
25-R	4’	264 x 2923	4"	3' 1 3⁄8"
25-R	4’	264 x 4023	4 1⁄4"	3' 1 3⁄8"
25-R	4’	1439 x 2923	3 7⁄8"	3' 1 1⁄4"
25-R	4’	1439 x 4023	4 1⁄8"	3' 1 1⁄4"
25-R	4’	1606 x 2923	4 1⁄4"	3' 1 1⁄8"
25-R	4’	1606 x 4023	4 1⁄2 "	3' 1 1⁄8"
25-Vx 25-R	3’	1609	3 1⁄2"	2' 7 5⁄8" for 3 1⁄2" Min stile
25-Vx 25-R	4’	1609	3 1⁄2"	3’ 1 5⁄8" for 3 1⁄2" Min stile

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
