Falcon Lock 25R-L-DAN-US26D-36-RHR KIT is a robust rim exit device designed to meet the high demands of busy environments. With its single-point rim latch and sleek touch bar design, it ensures both security and ease of use, making it an ideal choice for commercial applications. Featuring extruded aluminum construction, this device offers exceptional strength and impact resistance, while the absence of exposed screws or rivets enhances its aesthetic appeal. The 25R series is non-handed for flexible installation and includes a stainless steel push pad cover that resists scratches, ensuring longevity. It accommodates 1-3⁄4" thick wood or metal doors and offers a 3⁄4" throw latchbolt with a standard deadlocking feature. The hex dogging mechanism allows for simple operation without wear-prone threaded components. Additionally, this exit device is compatible with building security systems, offering options for electrification, motorized latch retraction, and security monitoring. Certified to ANSI A156.3-2001 Grade 1 standards, it guarantees reliability and performance. With a brushed chrome finish (US26D), the Falcon Lock 25R-L-DAN-US26D-36-RHR KIT combines functionality and style for a dependable exit solution.

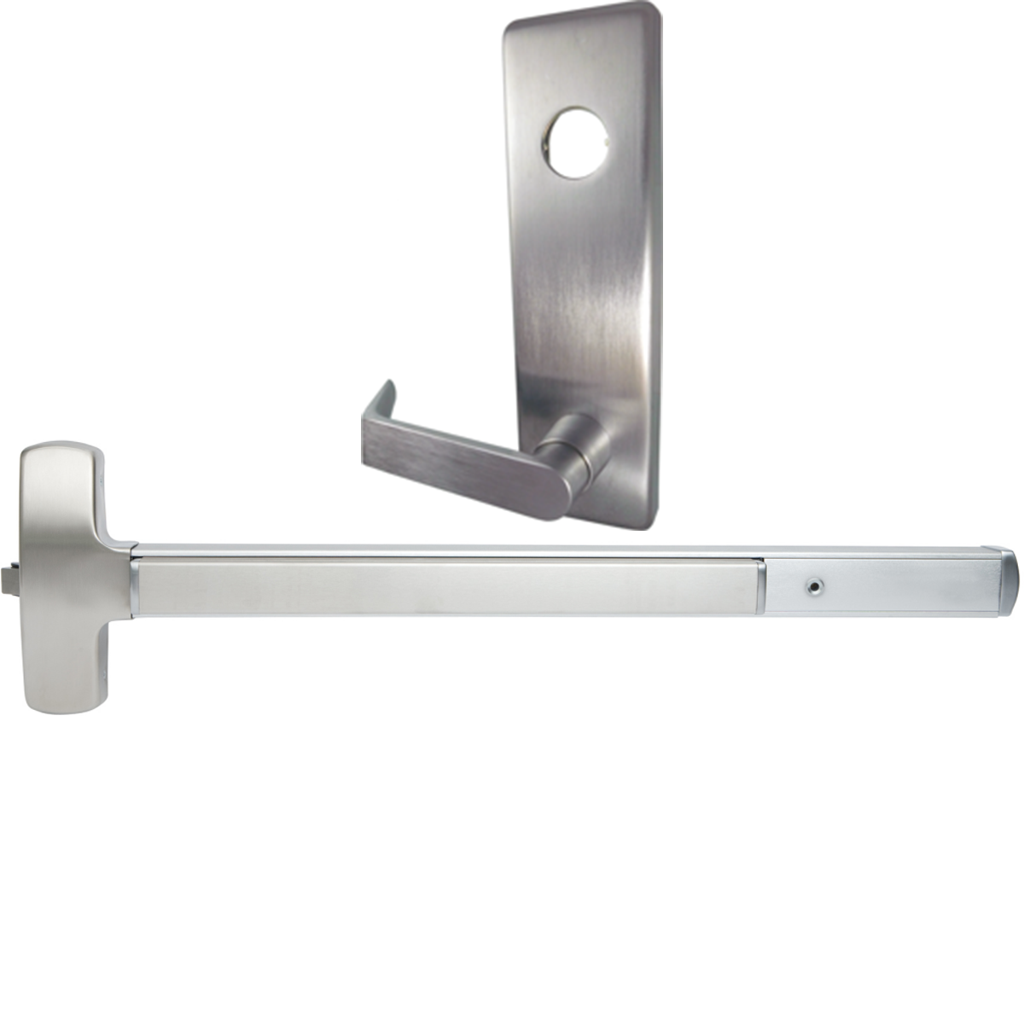

KIT - Rim Exit Device, Escutcheon x Dane Lever Trim 510L, 36in, Hex Dogging, RHR Right Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK25-RM.

Stock Sizes:

• Single Door Application

Device	Door Size	Door Strike	Door Stile (in)	Min. Door Opening Width
25-R	3’	299	4"	2' 7 1⁄2"
25-R	3’	264	3 7⁄8"	2' 7 3⁄8"
25-R	3’	1439	3 1⁄4"	2' 6 3⁄4"
25-R	3’	1606	3 5⁄8"	2' 7 1⁄8"
25-R	4'	299	4"	3' 1 1⁄2"
25-R	4'	264	3 7⁄8"	3' 1 3⁄8"
25-R	4'	1439	3 1⁄4"	3' 3⁄4"
25-R	4'	1606	3 5⁄8"	3' 1 1⁄8"

• Double Door Application

Device	Door Size	Strike x Mullion	Door Stile (in.)	Min. Door Opening Width
25-R	3’	299 x 2923	4 1⁄8"	2' 7 1⁄2"
25-R	3’	299 x 4023	4 3⁄8"	2' 7 1⁄2"
25-R	3’	264 x 2923	4"	2' 7 3⁄8"
25-R	3’	264 x 4023	4 1⁄4"	2' 7 3⁄8"
25-R	3’	1439 x 2923	3 7⁄8"	2' 7 1⁄4"
25-R	3’	1439 x 4023	4 1⁄8"	2' 7 1⁄4"
25-R	3’	1606 x 2923	4 1⁄4"	2' 7 1⁄8"
25-R	3’	1606 x 4023	4 1⁄2 "	2' 7 1⁄8"
25-R	4’	299 x 2923	4 1⁄8"	3' 1 1⁄2"
25-R	4’	299 x 4023	4 3⁄8"	3' 1 1⁄2"
25-R	4’	264 x 2923	4"	3' 1 3⁄8"
25-R	4’	264 x 4023	4 1⁄4"	3' 1 3⁄8"
25-R	4’	1439 x 2923	3 7⁄8"	3' 1 1⁄4"
25-R	4’	1439 x 4023	4 1⁄8"	3' 1 1⁄4"
25-R	4’	1606 x 2923	4 1⁄4"	3' 1 1⁄8"
25-R	4’	1606 x 4023	4 1⁄2 "	3' 1 1⁄8"
25-Vx 25-R	3’	1609	3 1⁄2"	2' 7 5⁄8" for 3 1⁄2" Min stile
25-Vx 25-R	4’	1609	3 1⁄2"	3’ 1 5⁄8" for 3 1⁄2" Min stile

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
