Falcon Lock 25R-L-DAN-US26D-48-LHR KIT is a robust rim exit device that excels in high-traffic settings, ensuring safety and accessibility with its streamlined touch bar design. Constructed from extruded aluminum, this device offers exceptional strength and impact resistance, making it a reliable choice for commercial applications. The seamless design, featuring no exposed screws or rivets, not only enhances aesthetic appeal but also simplifies installation. Equipped with a stainless steel push pad cover, the 25R-L maintains a scratch-resistant surface for durability. The device's versatility is underscored by its non-handed design and compatibility with various trims, including the elegant Dane lever trim. Its half-turn hex dogging feature eliminates wear-prone threaded parts, while flush-end caps safeguard against damage in harsh environments. With a 3⁄4" stainless steel latchbolt, the device is ANSI certified to Grade 1 standards, ensuring top-notch security. It accommodates doors that are 1-3⁄4" thick and can interface with building security systems for electrification. The 25R-L is ideal for storefront applications thanks to its narrow stile center case. Available in a brushed satin chrome finish (US26D), this exit device combines style with unparalleled functionality, making it a perfect choice for any commercial door.

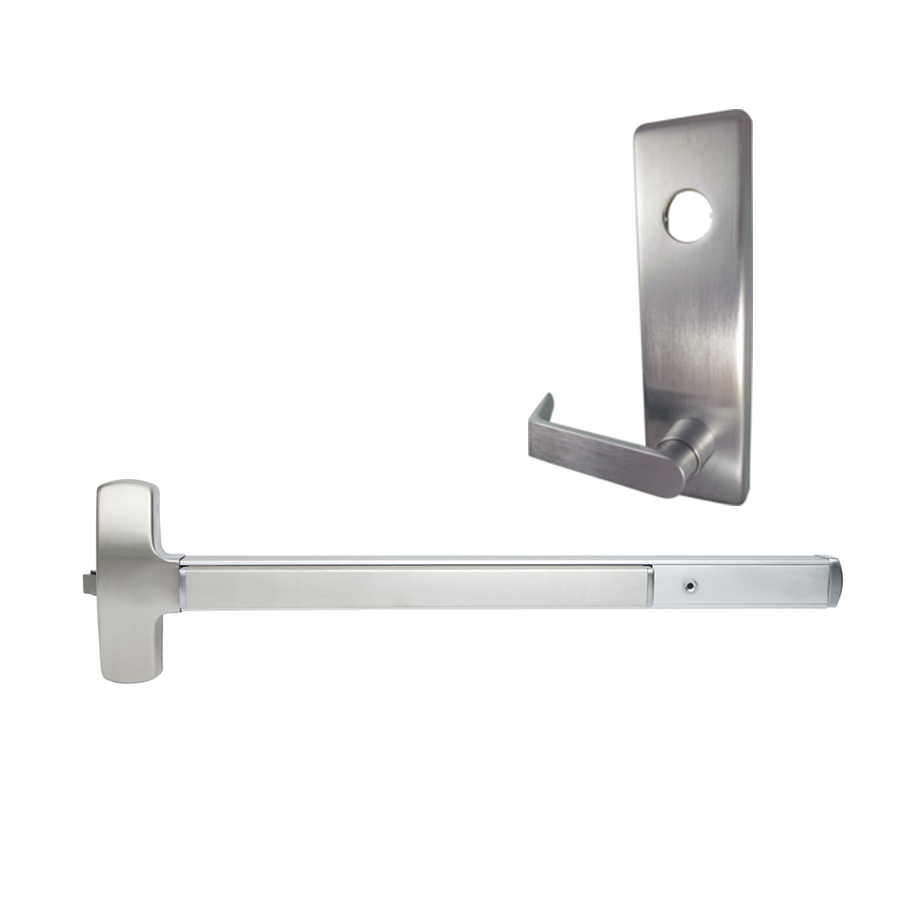

KIT - Rim Exit Device, Escutcheon x Dane Lever Trim 510L, 48in, Hex Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK25-RM.

Stock Sizes:

• Single Door Application

Device	Door Size	Door Strike	Door Stile (in)	Min. Door Opening Width
25-R	3’	299	4"	2' 7 1⁄2"
25-R	3’	264	3 7⁄8"	2' 7 3⁄8"
25-R	3’	1439	3 1⁄4"	2' 6 3⁄4"
25-R	3’	1606	3 5⁄8"	2' 7 1⁄8"
25-R	4'	299	4"	3' 1 1⁄2"
25-R	4'	264	3 7⁄8"	3' 1 3⁄8"
25-R	4'	1439	3 1⁄4"	3' 3⁄4"
25-R	4'	1606	3 5⁄8"	3' 1 1⁄8"

• Double Door Application

Device	Door Size	Strike x Mullion	Door Stile (in.)	Min. Door Opening Width
25-R	3’	299 x 2923	4 1⁄8"	2' 7 1⁄2"
25-R	3’	299 x 4023	4 3⁄8"	2' 7 1⁄2"
25-R	3’	264 x 2923	4"	2' 7 3⁄8"
25-R	3’	264 x 4023	4 1⁄4"	2' 7 3⁄8"
25-R	3’	1439 x 2923	3 7⁄8"	2' 7 1⁄4"
25-R	3’	1439 x 4023	4 1⁄8"	2' 7 1⁄4"
25-R	3’	1606 x 2923	4 1⁄4"	2' 7 1⁄8"
25-R	3’	1606 x 4023	4 1⁄2 "	2' 7 1⁄8"
25-R	4’	299 x 2923	4 1⁄8"	3' 1 1⁄2"
25-R	4’	299 x 4023	4 3⁄8"	3' 1 1⁄2"
25-R	4’	264 x 2923	4"	3' 1 3⁄8"
25-R	4’	264 x 4023	4 1⁄4"	3' 1 3⁄8"
25-R	4’	1439 x 2923	3 7⁄8"	3' 1 1⁄4"
25-R	4’	1439 x 4023	4 1⁄8"	3' 1 1⁄4"
25-R	4’	1606 x 2923	4 1⁄4"	3' 1 1⁄8"
25-R	4’	1606 x 4023	4 1⁄2 "	3' 1 1⁄8"
25-Vx 25-R	3’	1609	3 1⁄2"	2' 7 5⁄8" for 3 1⁄2" Min stile
25-Vx 25-R	4’	1609	3 1⁄2"	3’ 1 5⁄8" for 3 1⁄2" Min stile

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
