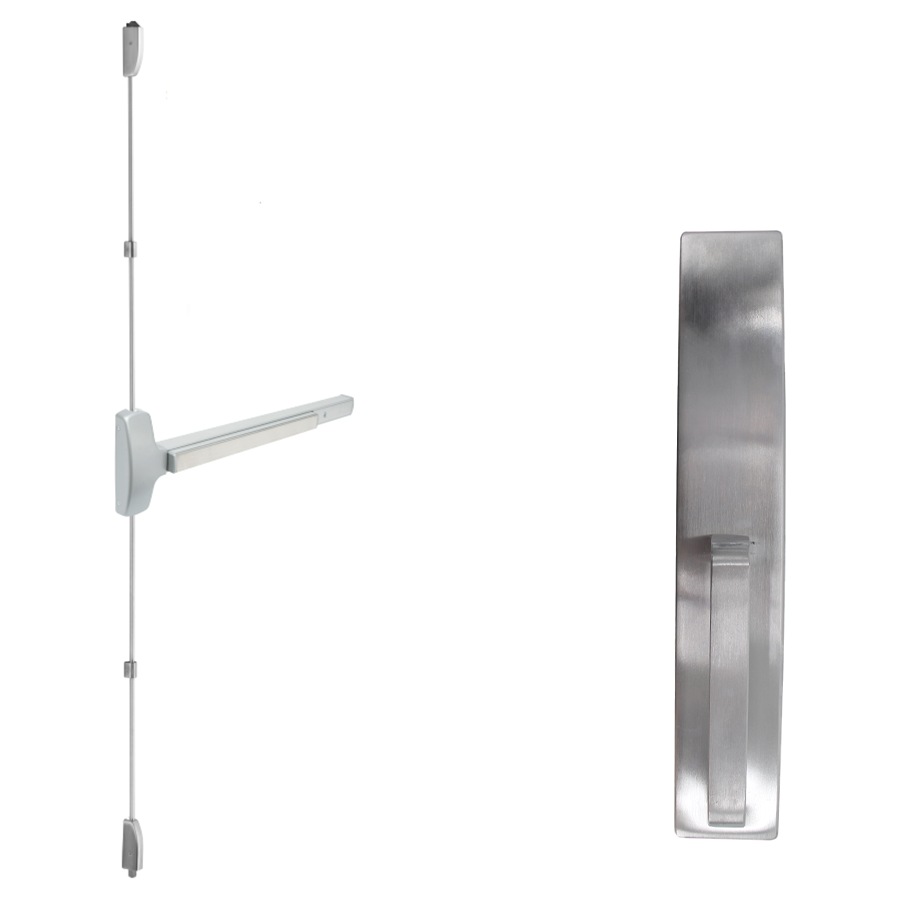

Falcon Lock 25V-DT-US26D-36X84 SVR Surface Vertical Rod Exit Device, Dummy Pull Trim 512DT, Satin Chrome

Falcon Lock 25V-DT-US26D-36X84 KIT is a robust and reliable surface vertical rod exit device designed for high-traffic environments. Crafted from extruded aluminum, this device offers superior strength and impact resistance, making it ideal for both single and double door applications. The sleek touch bar design not only enhances aesthetics but also ensures ease of use during emergency exits. This model features a standard top latch with deadlocking for added security, and the innovative design eliminates exposed screws or rivets, providing a streamlined look. The flush-end caps are engineered to withstand abuse, ensuring durability over time. With a field-reversible hand, the 25V-DT can adapt to various installation needs, while the stainless steel push pad cover resists scratches for a long-lasting finish. The device accommodates doors that are 1-3/4" thick and includes vital panic exit and fire exit hardware. With half-turn hex dogging as a standard feature, it eliminates the wear associated with threaded parts. Certified to ANSI A156.3 grade 1 standards, this exit device is not only functional but also compliant with safety regulations, making it a reliable choice for any building professional or knowledgeable homeowner.

KIT - SVR Surface Vertical Rod Exit Device, Dummy Pull Trim 512DT, 36in x 84in, Hex Dogging, Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon F-25 Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Field reversible.
• Strikes: 3788 top strike is surface applied; 2130 bottom strike is mortised into floor.
• Angle Bracket: Use 4215 angle bracket in flush transom installations. Allows use of standard 3788 strike.
• Latchbolt: Top stainless steel 3⁄4" throw. Bottom bolt, 1⁄2" throw.
• Deadlocking Latchbolt: Standard in top latch.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Electric Features: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 - 425 (#10-24) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Vertical Rods: Furnished to length based on a 40-1⁄4" horizontal CL from finished floor and a 7’ 0" door standard. Variations from these standards must be specified when ordering.
• 25-V-LBR: Less bottom rod vertical device.
• Shim Kits: For glass lite applications; 1⁄4" thick, specify SK25-V.

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 612/US10 - Bronze, Satin
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Stainless Steel, Bright
• 630/US32D - Stainless Steel, Satin
• 628/US28 - Anodized Aluminum
• 643e/US11 - Bronze, Aged
• 710/313AN - Anodized Duranodic
