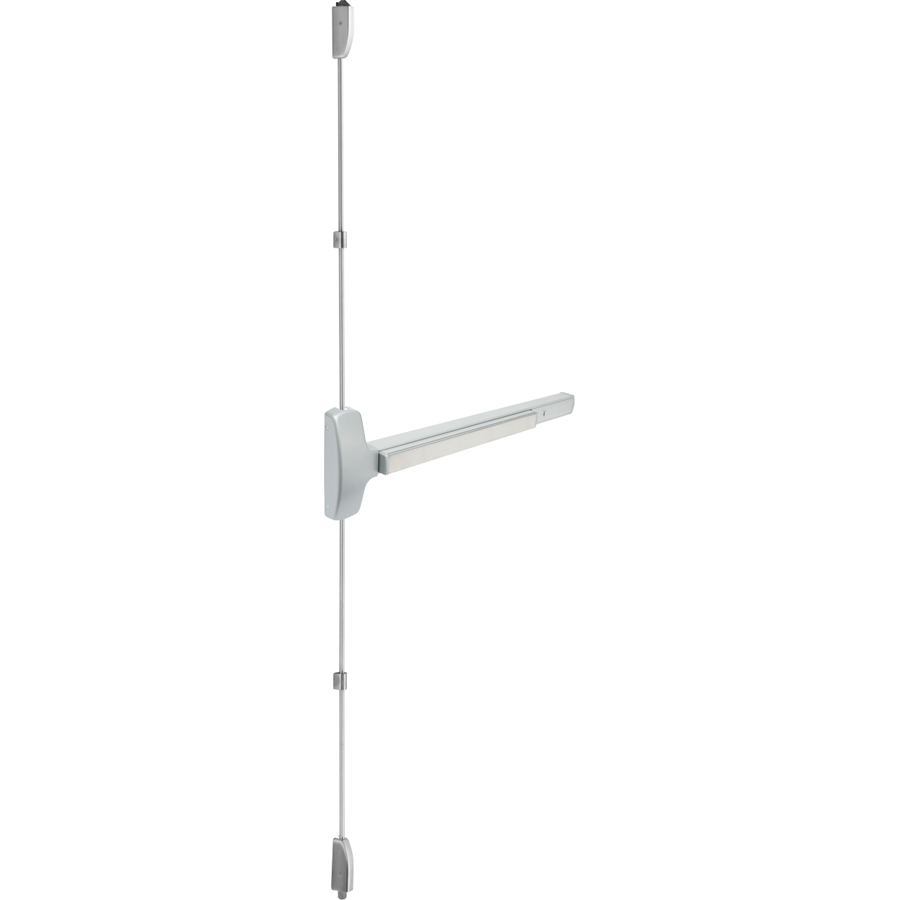

Falcon Lock 25V-EO-US26D-36X96 SVR Surface Vertical Rod Exit Device, 36in, Hex Dogging, Satin Chrome

Falcon Lock 25V-EO-US26D-36X96 SVR Surface Vertical Rod Exit Device provides robust security for high-traffic environments. This exit-only device features a surface-applied design, ensuring it meets the demands of both safety and functionality. The 36-inch model is constructed from extruded aluminum, delivering superior strength and impact resistance, making it ideal for commercial applications. Equipped with a standard top latch and deadlocking mechanism, the Falcon 25V ensures reliable operation in emergencies. The sleek touch bar design not only enhances aesthetics but also facilitates easy access during critical situations. Its flush-end caps prevent damage in high-use areas, and the absence of exposed screws maintains a clean, polished look. This exit device is compatible with both single and double door applications and is ANSI certified to Grade 1 standards, guaranteeing peace of mind for building professionals and homeowners alike. The hex dogging feature allows for straightforward operation without wearing parts, while optional electric features enable integration with building security systems. With a versatile design that accommodates various trims and door types, the Falcon Lock 25V-EO is a dependable choice for anyone seeking a high-quality exit solution. Its brushed chrome finish adds an elegant touch that complements any commercial space.

SVR Surface Vertical Rod Exit Device, Exit Only, 36in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon F-25 Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Field reversible.
• Strikes: 3788 top strike is surface applied; 2130 bottom strike is mortised into floor.
• Angle Bracket: Use 4215 angle bracket in flush transom installations. Allows use of standard 3788 strike.
• Latchbolt: Top stainless steel 3⁄4" throw. Bottom bolt, 1⁄2" throw.
• Deadlocking Latchbolt: Standard in top latch.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Electric Features: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 - 425 (#10-24) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Vertical Rods: Furnished to length based on a 40-1⁄4" horizontal CL from finished floor and a 7’ 0" door standard. Variations from these standards must be specified when ordering.
• 25-V-LBR: Less bottom rod vertical device.
• Shim Kits: For glass lite applications; 1⁄4" thick, specify SK25-V.

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 612/US10 - Bronze, Satin
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Stainless Steel, Bright
• 630/US32D - Stainless Steel, Satin
• 628/US28 - Anodized Aluminum
• 643e/US11 - Bronze, Aged
• 710/313AN - Anodized Duranodic
