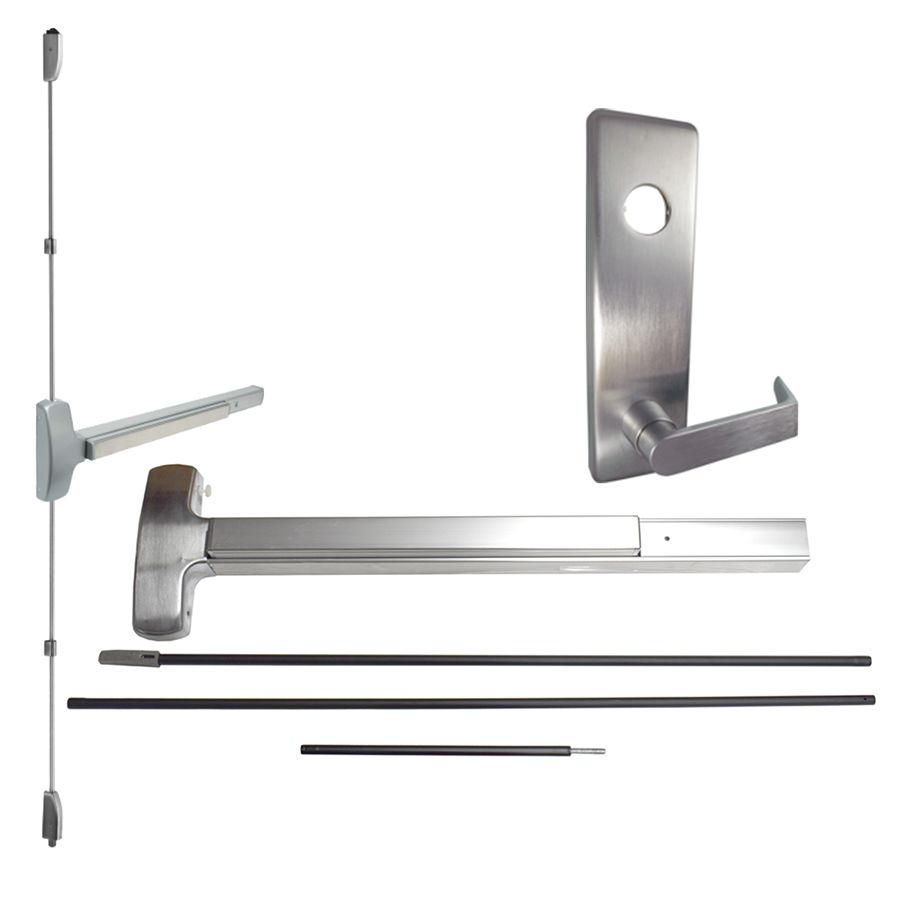

Falcon Lock 25V-L-NL-DAN-US26D-36X96-RHR SVR Surface Vertical Rod Exit Device w/ Dane Lever Nightlatch Trim, Satin Chrome

Falcon Lock 25V-L-NL-DAN-US26D-36X96-RHR KIT is designed to meet the demands of high-traffic applications with its robust surface vertical rod exit device. This model features a sleek escutcheon paired with a Dane lever night latch trim, providing both functionality and aesthetic appeal. Constructed from extruded aluminum, it offers exceptional strength and impact resistance, ensuring long-lasting performance. The device is equipped with panic exit and fire exit hardware, suitable for both single and double door applications. Its streamlined design boasts no exposed screws or rivets, enhancing the overall appearance. The stainless steel push pad cover provides a scratch-resistant surface, while flush-end caps protect against damage in challenging environments. Engineered for versatility, the Falcon Lock 25V includes a field-reversible handing option and allows for various trim designs. The hex dogging feature simplifies operation with a half turn, and it complies with ANSI A156.3-2001 grade 1 standards, ensuring reliability. Ideal for wood or metal doors, it accommodates thicknesses of 1-3/4" and includes electric features for integration with building security systems. The satin chrome finish adds a modern touch, making it a perfect choice for any commercial setting.

KIT - SVR Surface Vertical Rod Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, 36in x 96in, Hex Dogging, RHR Right Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon F-25 Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Field reversible.
• Strikes: 3788 top strike is surface applied; 2130 bottom strike is mortised into floor.
• Angle Bracket: Use 4215 angle bracket in flush transom installations. Allows use of standard 3788 strike.
• Latchbolt: Top stainless steel 3⁄4" throw. Bottom bolt, 1⁄2" throw.
• Deadlocking Latchbolt: Standard in top latch.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Electric Features: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 - 425 (#10-24) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Vertical Rods: Furnished to length based on a 40-1⁄4" horizontal CL from finished floor and a 7’ 0" door standard. Variations from these standards must be specified when ordering.
• 25-V-LBR: Less bottom rod vertical device.
• Shim Kits: For glass lite applications; 1⁄4" thick, specify SK25-V.

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 612/US10 - Bronze, Satin
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Stainless Steel, Bright
• 630/US32D - Stainless Steel, Satin
• 628/US28 - Anodized Aluminum
• 643e/US11 - Bronze, Aged
• 710/313AN - Anodized Duranodic
