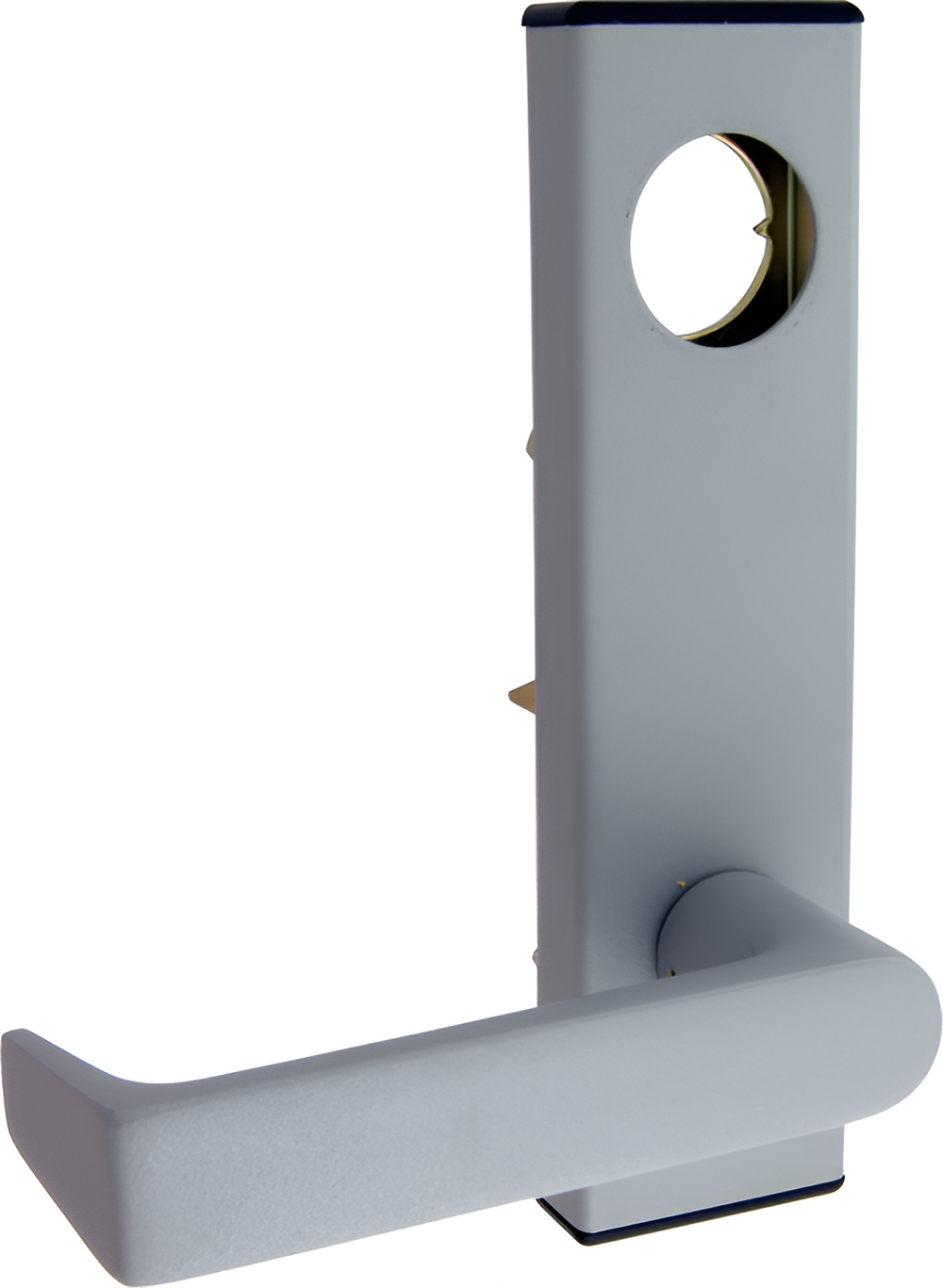

Falcon Lock 912L-DAN-SP28-RHR Dane Lever Trim, Less Cylinder, Field Reversible, 19 Series Device, 689/SP28

Falcon Lock 912L-DAN-SP28-RHR Escutcheon Dane Lever Trim offers a robust solution for panic device applications, specifically designed for the 19 Series devices. This trim features a sleek Dane lever design, finished in a contemporary sprayed aluminum (SP28) that seamlessly integrates with various architectural styles. The trim is supplied without a cylinder, allowing for customizable locking options tailored to your specific security needs. Field reversible, this model accommodates right-handed reverse handing, ensuring easy installation and adaptability for different door configurations. The 912L Dane lever trim is compatible with K-control, L-control, and DT-control configurations, making it versatile for a range of security solutions. Its lever projection measures 2-7/8 inches, providing ample space for comfortable operation. Engineered to meet rigorous standards, the Falcon Lock 912L-DAN-SP28-RHR ensures reliable performance while enhancing the aesthetic appeal of your security hardware. With its smooth textured metal finish and compatibility with panic device trims, it is ideal for both commercial and residential settings. Whether you’re a building professional or a knowledgeable homeowner, this trim delivers the quality and functionality you expect from Falcon Lock. Elevate your security system with this essential hardware component that combines form and function effortlessly.

Escutcheon Dane Lever Trim, Less Cylinder, Field Reversible, for 19 Series Device, 689/SP28 Painted Aluminum

Control Trims:

• K-control:
• 911K: BE, NL
• L-control:
• L-Control-Dane 912L: BE, L-DT, or NL
• L-Control-Sutro 912L: BE, L-DT, or NL
• L-Control-Quantum 912L: BE, L-DT, or NL
• DT-control:
• 918 Dummy Trim: Pull when dogged.
• NL-control:
• 918 Night Latch Key retracts latchbolt.
• Pull:
• 9970: Can be used with all devices (not for use on wood doors).

Lever Projection:

• Quantum: 3"
• Sutro: 2-7/8"
• Dane: 2-7/8"

Cover Plates:

• 4167: 3-1⁄4" x 15" x .050; Used with TP control & DT control. Covers 161 & 86 cutouts.
• 4168: 3-1⁄4" x 7-1⁄2" x .050; Used with EO device to cover No. 86 cutout for mortise lock.
• 4170: 3-1⁄4" x 7-1⁄2" x .050; Used with K control, DT/K control, L control, or DT/L control Covers 161 & 86 cutouts.

Key-In-Lever:

• 914KIL: For 1-3/4" thick doors only.
• 914-KIL-IC: For 1-3/4" thick doors only.

Centron & Trident Trim

• 930 EO: 6" x 3-1/4" x 1".
• 930 C: 6" x 3-1/4" x 1".
• 930 DT: 6" x 3-1/4" x 1" x 10-3/4".
• 930 NL: 6" x 3-1/4" x 1" x 10-3/4".
• 917 DT Pull only: CTC - 5-1⁄2" round - 3⁄4" diameter. Pull when dogged.
• 920 DT: 5" x 3-1/4" x 7-1/4".
• 920 NL: 5" x 3-1/4" x 7-1/4".

Finishes:

• SP28
• SP313
• US32D

Features

• L-control:
• NL-control:
• L-Control-Quantum 912L: BE, L-DT, or NL
• 911K: BE, NL
• 918 Dummy Trim: Pull when dogged.
• 9970: Can be used with all devices (not for use on wood doors).
• L-Control-Dane 912L: BE, L-DT, or NL
• Pull:
• L-Control-Sutro 912L: BE, L-DT, or NL
• 918 Night Latch Key retracts latchbolt.
• K-control:
• DT-control:

Resources

• Cut Sheet
