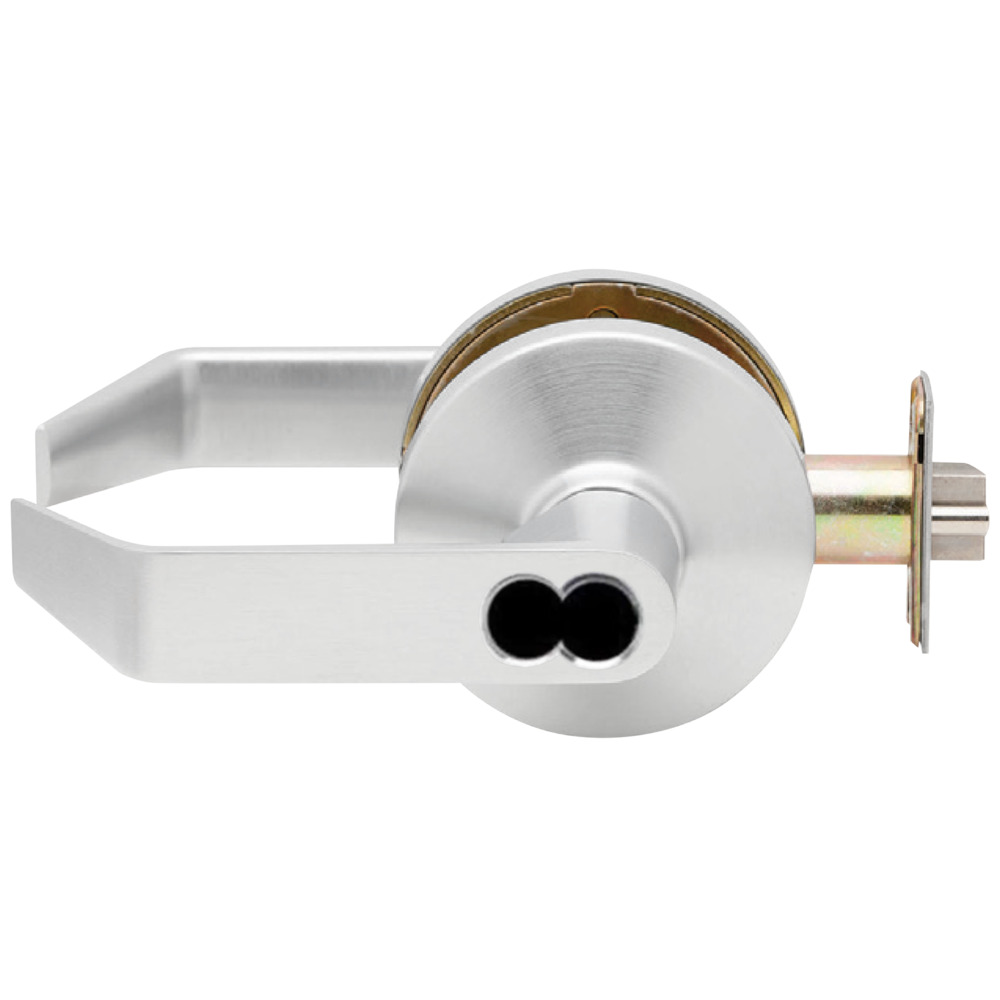

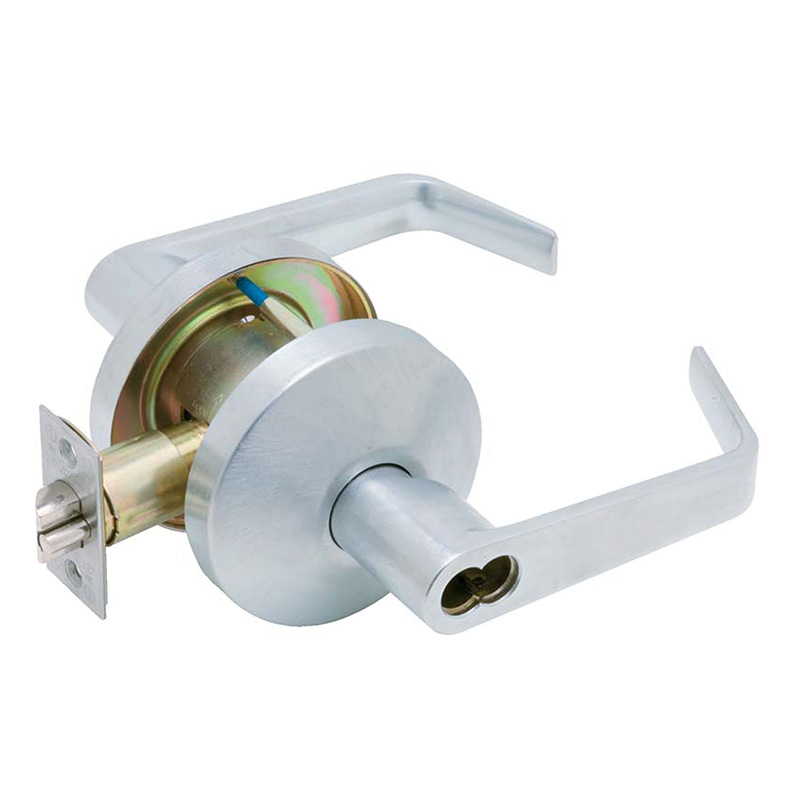

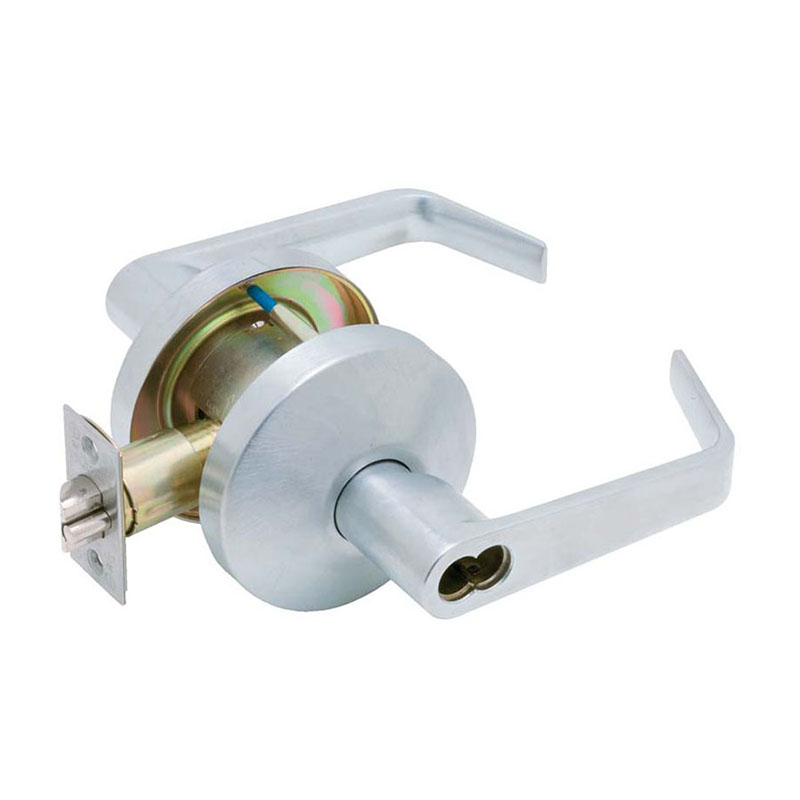

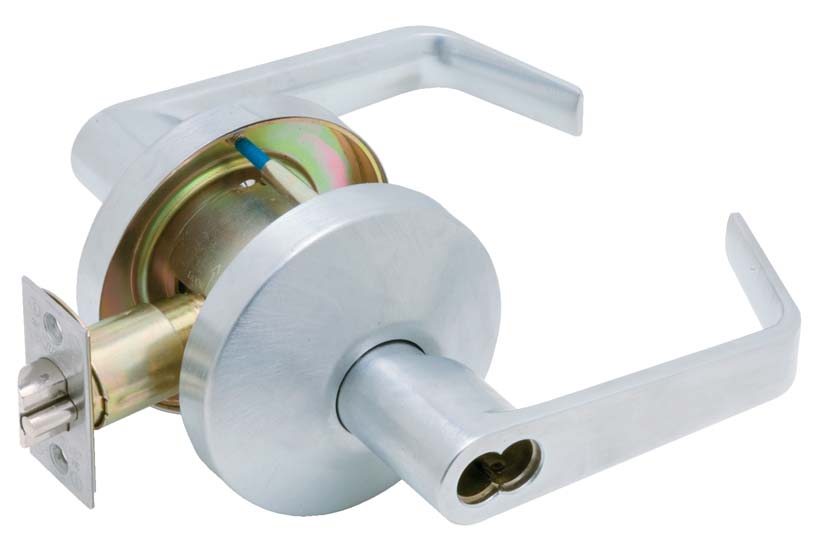

Falcon B511BDD626 B Series Small Format Office Dane Lever Lock with 57435 Latch 5164 Strike Satin Chrome Finish
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2 Series 4000
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Application: CM
Baa Qualified: No
Backset: 2-3/4" Backset
Bolt Projection: 1/2"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Burglar Rated: No
Clazz: FA
Color: Satin Chrome
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: Taiwan
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: Dane
Door Thickness: 1-3/8" to 2"
Finish: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: B511-Entry/Office Lock
Function Family: Entrance
Grade: Grade 2
Hand: Non-handed
Handing: Non-handed
Installation: Commercial
Item Class Description: B Series Small Format Office Dane Lever Lock with 57435 Latch 5164 Strike
Item Type Keyword: Office
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 7/8"
Latch Number: A57435-00D
Latch Type: Deadlatch
Lever Knob: Lever
Lever Knob Design: D - Dane
Lever Knob Design Family: Return Lever
Lever Knob Design Name: Dane
Leverknob Design: D - Dane Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Entry/Office Lock
Manufacturer Function Description: Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.
Material: Zinc Base
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
Num Pins: 7-Jun
Number Of Inners: 1
Origin: Taiwan
Pack Height: 9.5"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 4.75"
Pbs Options: 10293942
Projection: 2-5/8"
Restrictions: No
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-1/2 In. Diameter
Rose Escutcheon Dimensions: 3-1/2"
Roseescutcheon Design: Standard Rose
Roseescutcheon Dimensions: 3-1/2" Rose Diameter
Screws: Wood/Metal Screws
Series: B Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: A57435-00D
Std Latch Type: Deadlatch
Std Strike Height: 1-1/4"
Std Strike Number: 5164
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8"
Strike: 5164 ASA Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 5164
Strike Type: ASA Strike
Strike Width: 1-1/4"
Structure Cylinder: B
Structure Function: 511
Structure Latch: D
Structure Latch Number: A57435-00D
Structure Outside Finish: 626
Structure Outside Trim: D
Structure Series: B
Structure Strike Number: 5164
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: UL 10B, 10C
Unit of Measure: Each
Upc: 043156871315
