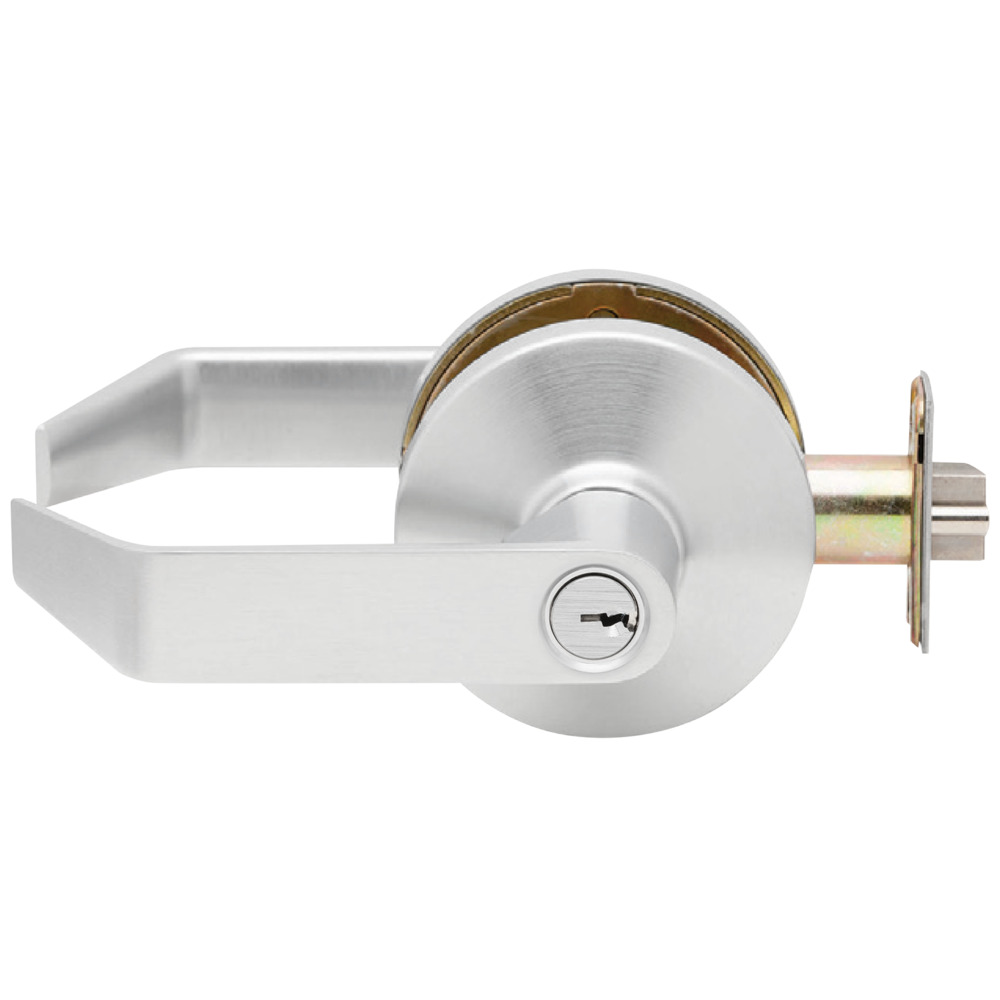

Falcon Lock B561CP6D D 626 Grade 2 Classroom Lock

Falcon B561CP6D D 626 Grade 2 Classroom Lock offers a robust security solution ideal for government, military, retail, industrial, and multi-family applications. This Grade 2 cylindrical lock features a classroom function with a key in lever cylinder, making it a practical choice for high-traffic areas where controlled access is essential. The elegant Dane lever design and satin chrome finish not only enhance aesthetics but also ensure durability and resistance to wear. Designed to accommodate door thicknesses from 1 3/8" to 2", the Falcon B561CP6D is non-handed for versatile installation. The lock's interchangeable core simplifies re-keying, allowing for quick adjustments and compatibility with SFIC products from other manufacturers. Built with high-quality materials, including brass or cold-formed steel components and stainless steel springs, this lock exceeds ANSI/BHMA A156.2, Series 4000, Grade 2 standards and is UL listed for up to 3 hours. Additional features include a 1/2" bolt projection latch, heavy wrought brass or bronze roses, and secure attachment via dual screws. The lock is supplied with two nickel silver keys and offers various keying options, ensuring that your security needs are met effectively. Trust in Falcon’s reputation for reliability and performance with the B561CP6D lock.

Grade 2 Classroom Lock

Grade 2 Cylindrical Lock, Classroom Function, Key in Lever Cylinder, Dane Lever, Standard Rose, Satin Chrome Finish, Non-handed

When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart specification in new construction. With upgraded finishes, these locks deliver style as well as strength. Falcon B Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most importantly, they’re backed by one of the best names in the business.

Features an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers.

• Door Thickness: 1 3/8” to 2” standard.
• Backset: 2 3/4” standard. 2 3/8” also available.
• Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
• Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
• Handing: Locks are non-handed.
• Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
• Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
• Keyways: “G” keyway standard on standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
• Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
• Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
• Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
• Screws: Furnished with combination screws for use in wood or metal doors and frames.
• ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
• UL: 3-hour, A Label.
