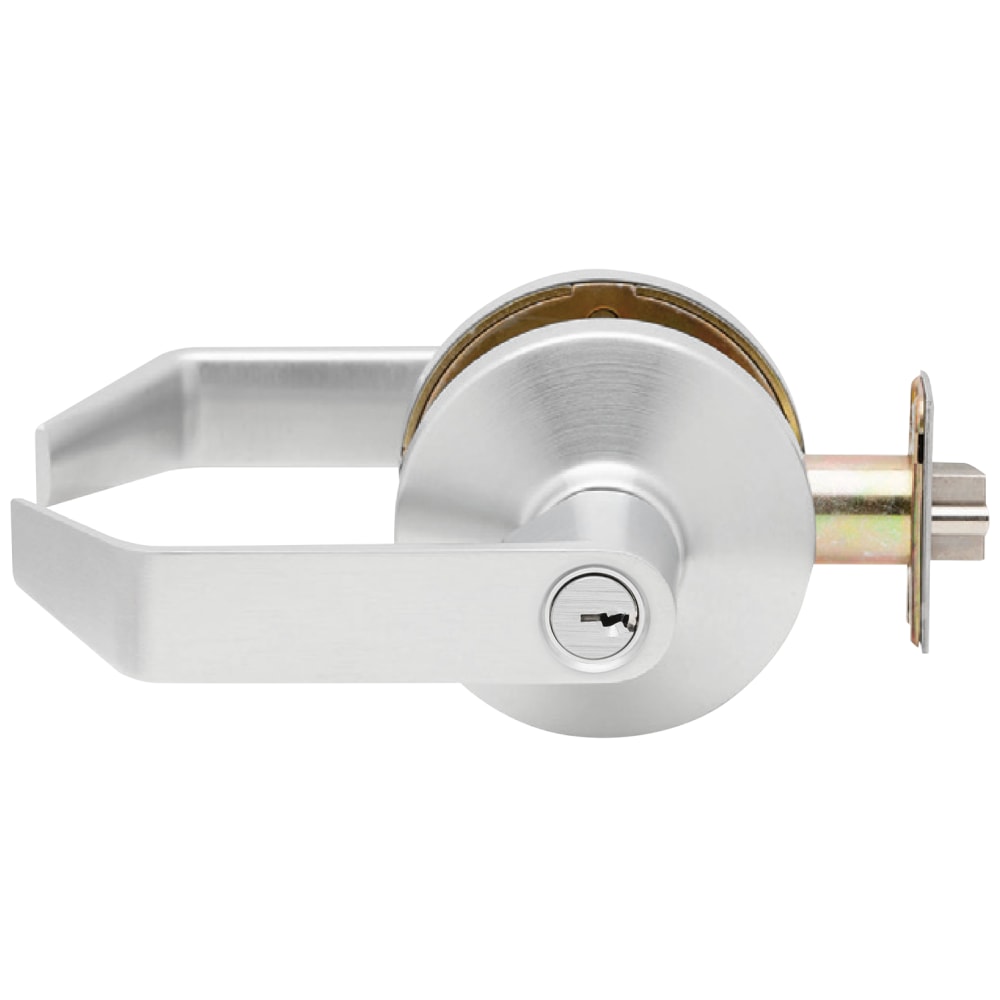

Falcon Lock B581PD D 626 Grade 2 Storeroom Lock

Falcon B581PD D 626 Grade 2 Storeroom Lock offers a robust solution for securing a variety of environments, including government facilities, retail spaces, and multi-family residences. Designed with a storeroom function, this cylindrical lock features a key-in-lever cylinder and a stylish Dane lever, finished in a sleek satin chrome that enhances both aesthetics and security. With a Grade 2 rating, the Falcon B Series locks are ideal for replacing outdated locks or specifying in new construction, ensuring reliability and durability. The non-handed design simplifies installation across different door configurations. Its interchangeable core allows for convenient re-keying, compatible with SFIC products from various manufacturers, ensuring flexibility in security management. The lock accommodates standard door thicknesses from 1 3/8" to 2" and includes a 2 3/4" backset, with a half-inch bolt projection and a UL listing for 3-hour fire ratings. Constructed from brass or cold-formed steel, with rust-resistant finishes, this lock is built to withstand the rigors of daily use. Backed by a 10-year limited warranty, the Falcon B581PD D 626 is a dependable choice for professionals seeking a blend of security, functionality, and style.

Grade 2 Storeroom Lock

Grade 2 Cylindrical Lock, Storeroom Function, Key in Lever Cylinder, Dane Lever, Standard Rose, Satin Chrome Finish, Non-handed

When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart specification in new construction. With upgraded finishes, these locks deliver style as well as strength. Falcon B Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most importantly, they’re backed by one of the best names in the business.

Features an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers.

• Door Thickness: 1 3/8” to 2” standard.
• Backset: 2 3/4” standard. 2 3/8” also available.
• Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
• Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
• Handing: Locks are non-handed.
• Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
• Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
• Keyways: “G” keyway standard on standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
• Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
• Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
• Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
• Screws: Furnished with combination screws for use in wood or metal doors and frames.
• ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
• UL: 3-hour, A Label.
