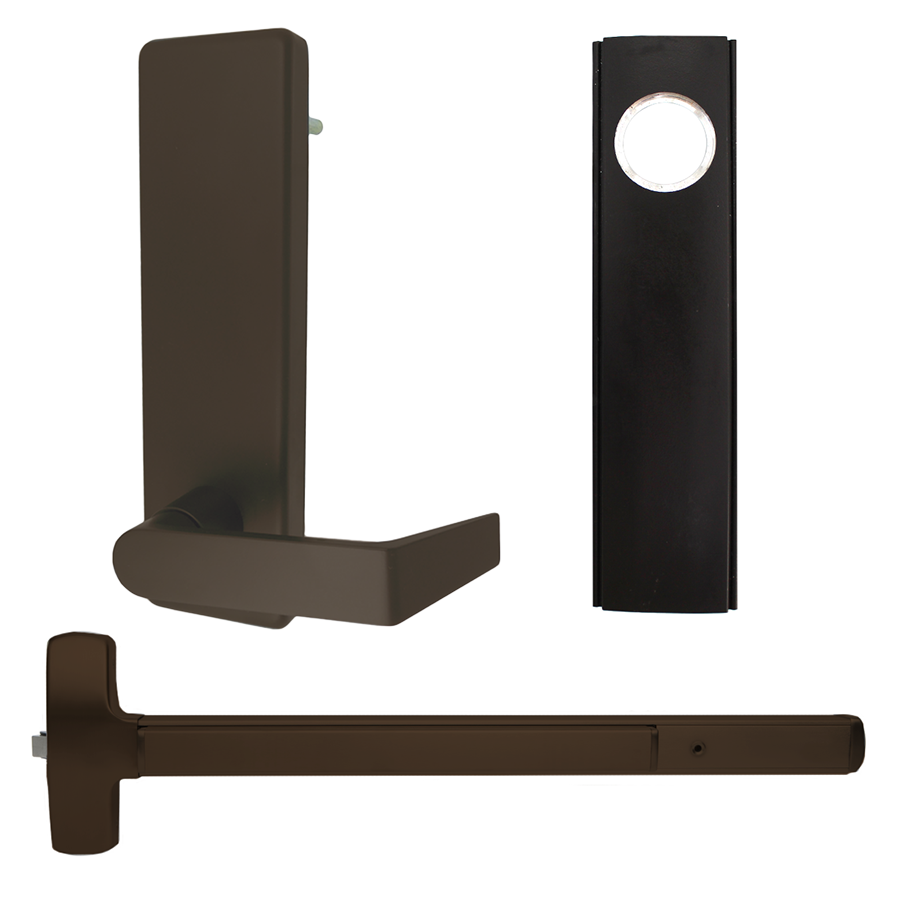

Falcon Lock CD-25R-L-BE-DAN-710-36-RHR Rim Exit Device Kit, Blank Escutcheon Dane Lever Trim 510L-BE, 36in, RHR

Falcon Lock CD-25R-L-BE-DAN-710-36-RHR KIT offers a reliable solution for high-traffic environments, making it an ideal choice for offices, banks, and retail spaces. This rim exit device features a sleek blank escutcheon with the Dane lever trim, designed for a seamless aesthetic while ensuring quick and safe egress during emergencies. With a robust extruded aluminum construction, it provides exceptional strength and impact resistance, ensuring durability in demanding applications. This Grade 1 certified exit device is equipped with cylinder dogging for added security and convenience. Its versatile design accommodates various trims while maintaining a clean appearance, thanks to the absence of exposed screws or rivets. The stainless steel push pad cover enhances durability with a scratch-resistant surface, ideal for high-usage settings. Compatible with both single and double door applications, the CD-25R is engineered to meet ANSI/BHMA standards, ensuring top-notch performance. The non-handed design allows for easy installation on 1-3/4" thick doors, whether wood or metal. Available in a striking dark bronze anodized finish, this exit device not only meets safety requirements but also complements any architectural style. Trust Falcon Lock for dependable security solutions that prioritize both functionality and elegance.

KIT - Rim Exit Device, Blank Escutcheon x Dane Lever Trim 510L-BE, 36in, Cylinder Dogging, Less Cylinder, RHR Right Hand Reverse/Reversible, Grade 1, 710/313AN Dark Bronze Anodized

The 24/25 series heavy-duty architectural push pad exit devices provide quick, easy egress suitable for various applications. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so the exit devices must be able to perform under continual use and abuse. The 24/25 series exit devices out-perform competitors and are offered at a reasonable price. The ANSI/BHMA grade 1 certified exit devices feature a sleek, streamlined styling and smart solutions for any building design while assuring egress in case of an emergency. The 25-R series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility

Features:

• Extruded aluminum construction delivers greater strength and impact resistance
• Includes panic exit and fire exit hardware for single and double door applications
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation
• One trim input design provides maximum versatility and ability to use various trims
• Stainless steel push pad cover provides a scratch-resistant pushing surface
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors

Functions:

• EO (01): Exit only, no trim.
• DT (02): Entrance by trim when actuating bar is locked down.
• NL (03): Entrance by trim when latchbolt is retracted by key. Key removable only when locked.
• TP (05): Entrance by thumbpiece. Key locks or unlocks thumbpiece.
• L or K (08): Entrance by knob or lever. Key locks or unlocks knob.
• L(NL) or K(NL) (03): Entrance by knob or lever when latchbolt is retracted by key. Lever/knob is rigid. Key removable only when locked.

Lever Designs:

• Avalon (AVA): Projection 3-1⁄4"
• Quantum (QUA): Projection 3-1⁄4"
• Dane (DAN): Projection 3"
• Broadway (BRW): Projection 3-1⁄5"
• Boardwalk (BRK): Projection 3-1⁄5"
• Danish (DSH): Projection 2-9⁄10"
• Latitude (LAT): Projection 3-1⁄10"
• Longitude (LON): Projection 3-1⁄10"
• Sutro (SUT): Projection 3-1⁄4"

Specifications:

• Hand: Non-handed.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: Hex dogging standard
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Double Cylinder – Classroom Security: Available with L function for 25-R-L less dogging and F-25-R-L devices only. Specify handing. Cylinders sold separately.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK25-RM.

Stock Sizes:

• Single Door Application:

Device	Door Size	Door Strike	Door Stile (in)	Min. Door Opening Width
25-R	3’	299	4"	2' 7 1⁄2"
25-R	3’	264	3 7⁄8"	2' 7 3⁄8"
25-R	3’	1439	3 1⁄4"	2' 6 3⁄4"
25-R	3’	1606	3 5⁄8"	2' 7 1⁄8"
25-R	4'	299	4"	3' 1 1⁄2"
25-R	4'	264	3 7⁄8"	3' 1 3⁄8"
25-R	4'	1439	3 1⁄4"	3' 3⁄4"
25-R	4'	1606	3 5⁄8"	3' 1 1⁄8"

• Double Door Application:

Device	Door Size	Strike x Mullion	Door Stile (in.)	Min. Door Opening Width
25-R	3’	299 x 2923	4-1⁄8"	2' 7-1⁄2"
25-R	3’	299 x 4023	4-3⁄8"	2' 7-1⁄2"
25-R	3’	264 x 2923	4"	2' 7-3⁄8"
25-R	3’	264 x 4023	4-1⁄4"	2' 7-3⁄8"
25-R	3’	1439 x 2923	3-7⁄8"	2' 7-1⁄4"
25-R	3’	1439 x 4023	4-1⁄8"	2' 7-1⁄4"
25-R	3’	1606 x 2923	4-1⁄4"	2' 7-1⁄8"
25-R	3’	1606 x 4023	4-1⁄2 "	2' 7-1⁄8"
25-R	4’	299 x 2923	4-1⁄8"	3' 1-1⁄2"
25-R	4’	299 x 4023	4-3⁄8"	3' 1-1⁄2"
25-R	4’	264 x 2923	4"	3' 1-3⁄8"
25-R	4’	264 x 4023	4-1⁄4"	3' 1-3⁄8"
25-R	4’	1439 x 2923	3-7⁄8"	3' 1-1⁄4"
25-R	4’	1439 x 4023	4-1⁄8"	3' 1-1⁄4"
25-R	4’	1606 x 2923	4-1⁄4"	3' 1-1⁄8"
25-R	4’	1606 x 4023	4-1⁄2 "	3' 1-1⁄8"
25-Vx 25-R	3’	1609	3-1⁄2"	2' 7-5⁄8" for 3-1⁄2" Min stile
25-Vx 25-R	4’	1609	3-1⁄2"	3’ 1-5⁄8" for 3-1⁄2"Min stile

Finishes:

• US3/605 - Bright brass
• US4/606 - Satin brass
• US10/612 - Satin bronze
• US11/643e - Aged bronze
• US15/619 - Satin nickel
• US19/622 - Matte black
• US26/625 - Bright chrome
• US26D/626 - Satin chrome
• US28/628 - Anodized aluminum
• US32/629 - Bright stainless steel
• US32D/630 - Satin stainless steel
• 313AN/710 - Anodized duranodic
