Falcon Lock EA-25R-DT-US26D-36 KIT is a sophisticated exit alarm system designed to enhance security while ensuring compliance with egress requirements. This unit features a battery-powered exit alarm that emits a robust 110 dB sound when the touchbar is activated, effectively monitoring exit usage. The alarm can only be reset using a standard 1 1⁄4" mortise cylinder with an "A" cam, ensuring that unauthorized access is deterred. Crafted for versatility, the EA-25R-DT is compatible with various door types, including rim, mortise, and concealed exit devices. It operates with a single 9V battery that can last up to six months in standby mode, or you can choose an optional 24V hardwire connection. The external inhibit feature allows integration with card readers, enhancing its functionality for controlled access environments. This Grade 1 exit device is UL listed and meets rigorous safety standards. Available in a sleek satin chrome finish (626/US26D), it offers a modern aesthetic that complements any facility. Additional LED indicators signal armed, disarmed, and low battery statuses, ensuring prompt awareness of system readiness. The Falcon Lock EA-25R-DT is an ideal solution for facilities seeking reliable exit security without compromising user safety.

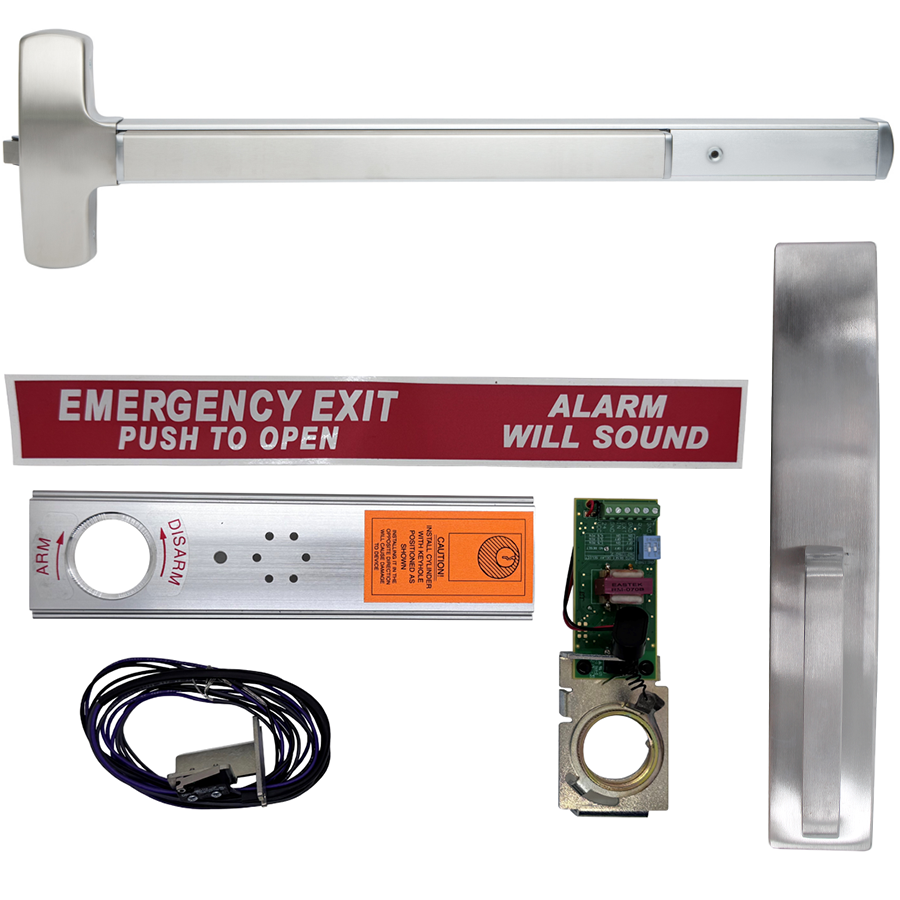

KIT - Exit Alarm, Rim Exit Device, Dummy Pull Trim 512DT, 36in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
